PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4800 × 1600 × 1120 mm
Overall cluster dimensions	4800 x 1600 x 1120 mm
Individual work surface size	1600 x 600 x 750 mm per seated position
Seated knee clearance under desk	650 mm wide x 500 mm deep x 670 mm high
Half-height partition total height	1120 mm above finished floor
Translucent upper screen height	400 mm above desk surface
Solid lower privacy panel height	370 mm above desk surface
Mobile 3-drawer pedestal dimensions	420 x 480 x 725 mm
Mobile CPU stand dimensions	250 x 500 x 120 mm
Work surface panel thickness	25 mm
Partition panel total thickness	60 mm
Cable grommet diameter	80 mm
Frame tubing section size	30 x 30 mm square
Adjustable foot adjustment range	15 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total cluster net weight	320 kg
Per-work-surface static load capacity	135 kg
Recommended maximum user weight per station	136 kg
Total workstation seating capacity	6 users
Laminate surface abrasion resistance	2000 cycles
Structural warranty	10 years
Component and finish warranty	3 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1-grade melamine-faced particleboard, 2mm PVC edge banding
Structural frame	30x30mm square powder-coated white steel tubing
Upper partition screen	Translucent frosted acrylic/polycarbonate panel in white frame
Lower privacy panel	18mm light wood-laminate MFC panel matching desk surface
Mobile pedestal drawer bodies	18mm white melamine-faced MDF, steel drawer slides
Pedestal and CPU stand casters	50mm diameter black nylon twin-wheel casters
Drawer handles	White ABS/PP integrated pull handles
Pedestal lock core	Brass pin-tumbler lock with 2 keys per unit
Cable grommets	80mm diameter white ABS plastic grommets
Leveling feet	Black nylon adjustable glide feet with steel threaded stems
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	One desk-surface grommet per station routed to central partition wire channel
Mobile pedestal access	3-drawer locking pedestal rolls out from under desk for flexible access
CPU stand mobility	Wheeled under-desk CPU tray rolls out for hardware access and ventilation
Partition privacy	Dual-section divider blocks seated lap-level views while allowing overhead light transmission
Leveling adjustment	Threaded adjustable feet compensate for 15mm of floor unevenness
Modular reconfiguration	Bolt-together frame connections allow layout changes without panel replacement
Drawer lock security	Top drawer lock secures all three pedestal drawers with one key
Pedestal caster movement	Four swivel casters per pedestal allow repositioning without lifting
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff areas	Fits 6 employees in a compact linear layout, balancing density and individual privacy
Call center and telemarketing floors	Partial dividers reduce visual distraction while maintaining supervisor visibility
Startup and co-working spaces	Modular design allows later reconfiguration as team size and layout change
Administrative and back-office departments	Integrated personal storage reduces separate cabinet requirements per employee
Training and temporary project spaces	Durable commercial-grade surfaces support daily high-frequency computer use
Small office open work zones	All-in-one cluster eliminates need for separate desks, dividers and storage purchases

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and dimensional requirements for desk components
EN 527-2:2016	Office work tables, mechanical safety and strength test methods
EN 1335-1:2020	Office work chair dimensions, applies to knee clearance alignment at workstations
EN 1022:2018	Furniture seating stability, applicable for chair interaction with desk knee space

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, covers safety, strength and durability for office work surfaces
ANSI/BIFMA X5.6-2022	Panel systems standard, applies to modular partition structure and connections
ANSI/BIFMA X5.9-2019	Storage units standard, covers mobile pedestal performance and safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applies to desk and cabinet components
GB/T 3327-2017	Dimensions and performance requirements for office desks, applies to work surface sizing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required E1 grade for indoor office use
GB/T 10357.1-2013	Desk strength and stability test methods, applicable for static load verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to desk and cabinet components;
2. GB/T 3327-2017: Dimensions and performance requirements for office desks, applies to work surface sizing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required E1 grade for indoor office use;
4. GB/T 10357.1-2013: Desk strength and stability test methods, applicable for static load verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-BB6-LW-WF-3D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-BB6-LW-WF-3D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-BB6-LW-WF-3DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

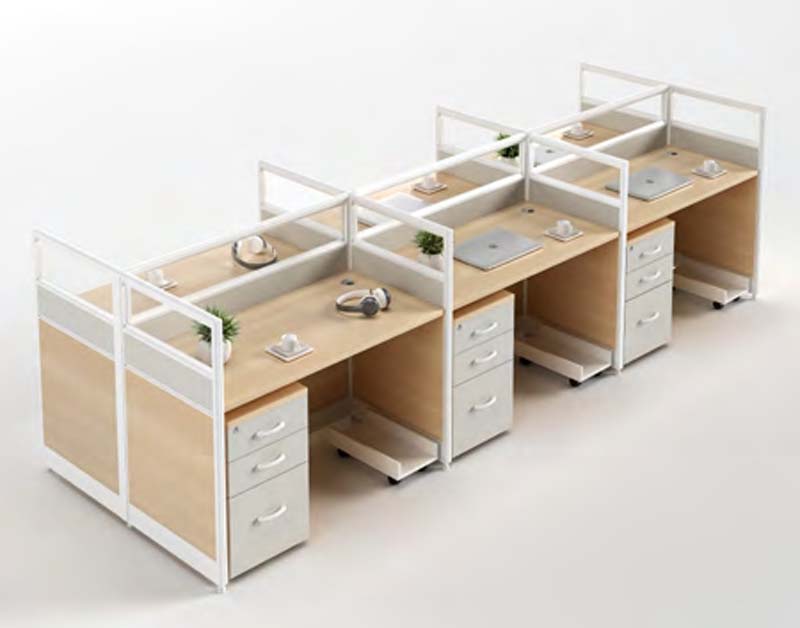

The 6-Person Back-to-Back Modular Open Office Cubicle Workstation Cluster is an unbranded commercial open-office partition desk bank, model WS-BB6-LW-WF-3D, designed to balance space efficiency, personal privacy, and functional flexibility for shared work environments. Its overall footprint supports a linear, back-to-back layout that accommodates six individual seated positions, with a half-height 1120mm total partition height that combines translucent frosted upper screens and matching light wood-laminate lower privacy panels. The dual-section dividers block seated lap-level sightlines between adjacent and opposite workstations while allowing overhead light to filter through the upper translucent section, preserving an open, bright atmosphere. Each work surface is finished in a light wood tone, paired with a white powder-coated 30x30mm square steel frame, creating a clean, neutral aesthetic that complements most office interior palettes. The work surfaces are constructed from 25mm E1-grade melamine-faced particleboard with 2mm PVC edge banding, delivering abrasion resistance rated for 2000 cycles to support daily high-frequency use. Each individual work surface measures 1600 x 600 x 750mm with 650mm wide, 500mm deep, 670mm high seated knee clearance, and supports a 135kg static load with a 136kg recommended maximum user weight per station. Integrated functional features include a dedicated cable management system with one white ABS grommet per station routed to a central partition wire channel, a lockable mobile 3-drawer pedestal per seat that rolls out for flexible access, and a wheeled under-desk CPU tray that enables easy hardware access and ventilation. The pedestal lock secures all three drawers with a single key, and threaded adjustable feet compensate for floor unevenness during installation. Bolt-together frame connections support layout reconfiguration without panel replacement, while 50mm black nylon twin-wheel casters on storage components enable smooth repositioning. The structure carries a 10-year structural warranty, with a 3-year warranty for components and finishes. This workstation cluster is suitable for open-plan office staff areas, call center and telemarketing floors where partial dividers reduce visual distraction while retaining supervisor visibility, startup and co-working spaces that require future layout adaptability, administrative back-office departments, training and temporary project spaces, and small office open work zones where an all-in-one solution eliminates separate purchases of desks, dividers, and storage. For procurement, note that each set ships in 2 cartons with 40 minutes of reference assembly time per set, and the modular design allows later expansion or reconfiguration as team needs evolve. Under-desk mobile storage reduces requirements for separate cabinetry, supporting streamlined space planning for high-occupancy work areas.

6-Person Back-to-Back Modular Open Office Cubicle Workstation Cluster Specifications
