PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static desk load	100 kg
Distributed worktop load	60 kg
Pedestal drawer load	15 kg per drawer
Storage shelf and cabinet load	20 kg per compartment
Occupant capacity	1 person
Workstation net weight	85 kg
Partition screen stability rating	Suitable for fixed modular office separation, not load-bearing
Chair mat rolling area	0.63 m2
Suggested daily-use durability target	8 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with oak-grain finish and sealed edges
Storage carcass	18 mm melamine-faced particleboard panels in white and oak-grain finish
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L1400-OAK-WHT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L1400-OAK-WHT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L1400-OAK-WHTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

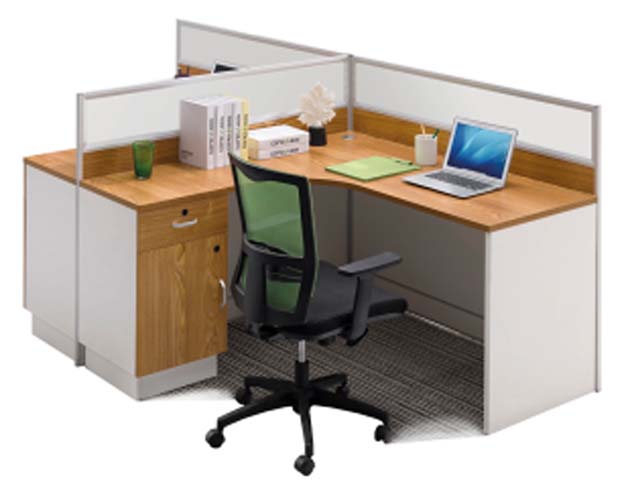

The WS-L1400-OAK-WHT is an unbranded L-shaped panel-based office workstation designed for a single occupant. Its mixed oak and white finish gives it a contemporary office appearance, while the integrated partition screens create a defined personal workspace within an open-plan floor. The layout combines a main work surface with a return section and an attached storage pedestal, supporting focused work, computer use, paperwork, and nearby file or supply storage without requiring separate casegoods. Visual separation is provided by aluminum-framed fabric or opaque screens. The screens are intended for fixed modular office division and are not load-bearing, so they should not be used as shelving, leaning supports, or attachment points for heavy equipment. The work surface is made from 25 mm melamine-faced particleboard with an oak-grain finish and sealed edges, using a load-bearing top construction that may incorporate a 40 mm composite build-up. Finished top thickness is listed at 50 mm. Storage components use 18 mm melamine-faced particleboard panels in white and oak-grain finishes, with 2 mm edge banding. Steel support framing, including an 80 mm main support section with 2 mm cold-rolled metal wall, carries the panel structure. Primary connections reference M6 to M8 fixings, with at least two fixing points per main support. Functionally, the workstation includes a storage pedestal, shelves, and cabinet compartments for daily office materials. An 80 mm cable opening and 120 mm-deep cable tray help route power and data cabling from the desktop toward under-desk outlets. The cable-management system has a reference capacity for ten power or data cables and a tray load of 10 kg. Rated loading includes a 100 kg recommended static desk load, 60 kg distributed worktop load, 15 kg per pedestal drawer, and 20 kg per storage shelf or cabinet compartment. Each main seating position provides 680 mm of knee clearance height and 900 mm of clearance width. This configuration is suitable for private offices, corporate workstation zones, call centers, administrative suites, public-sector offices, educational staff rooms, and residential studies that require a structured desk-and-storage setup. Procurement teams should confirm site access, floor protection, and assembly resources. The finished workstation weighs 85 kg, while packaging information varies between supplied logistics entries; planning should use the maximum stated delivery profile of four cartons, 180 kg packaged gross weight, and 1 cubic meter per set, with the main top pack measuring 2500 by 1050 by 350 mm and the return or pedestal packed separately. Reference assembly time is 40 minutes per set. Main joints are specified for controlled assembly cycles, making careful handling important during relocation or reconfiguration.

L-Shaped Panel-Based Office Workstation with Partition Screens and Storage Pedestal Specifications
