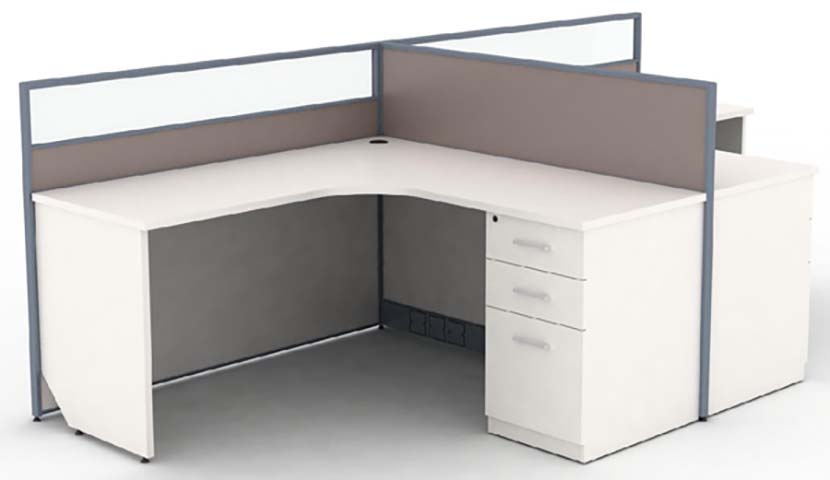

Product supplierL-Shaped Cubicle Office Workstation with Integrated 3-Drawer Pedestal and Fabric-Glass Dividers, E0 grade melamine laminated particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1500 × 1500 × 1200 mm | |
|---|---|---|
| Overall per-seat workstation dimensions | 1500 x 1500 x 1200 mm | |
| Work surface height | 740 mm | |
| Work surface thickness | 25 mm | |
| Knee clearance height under work surface | 680 mm | |
| Knee clearance width at curved front edge | 800 mm | |
| Partition panel thickness | 83 mm | |
| Upper frosted glass divider height | 300 mm | |
| Lower fabric divider panel height | 900 mm | |
| 3-drawer pedestal dimensions | 400 x 560 x 700 mm | |
| Single drawer internal usable height | 200 mm | |
| Cable grommet diameter | 80 mm | |
| Modesty panel height under work surface | 450 mm | |
| Leveling foot adjustment height | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-unit net weight | 75 kg | |
|---|---|---|
| Work surface static uniform load capacity | 120 kg | |
| Drawer slide cycle durability rating | 50000 cycles | |
| Partition frame static load for mounted accessories | 15 kg | |
| Work surface surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight for workstation use | 136 kg | |
| Standard product warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E0 grade melamine laminated particleboard | |
|---|---|---|
| Work surface edge banding | 2 mm thick PVC edge banding | |
| Partition frame construction | Powder-coated gray aluminum alloy profile | |
| Lower divider panel | Taupe fabric-wrapped acoustic fiberboard panel | |
| Upper divider panel | Frosted tempered safety glass | |
| Pedestal construction | 18 mm thick white melamine laminated particleboard | |
| Drawer hardware | Zinc-plated steel ball-bearing drawer slides with integrated key lock | |
| Support components | Powder-coated steel vertical supports and base leveling feet | |
| Modesty panel | 15 mm thick gray melamine hardboard | |
| Cable management components | Plastic cable grommet and under-desk steel cable raceway | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Drawer storage and locking | Three vertically stacked drawers with single key lock securing all units | |
|---|---|---|
| Cable management system | Corner surface grommet routes cables to under-desk raceway for hidden routing | |
| Modular cluster connection | Metal joining connectors attach adjacent workstations to form multi-seat clusters | |
| Floor leveling adjustment | Rotating base feet adjust up to 15mm to compensate for uneven flooring | |
| Privacy screening function | Split fabric-glass dividers block direct line of sight between adjacent seats | |
| Surface stain and water resistance | Melamine laminate surface resists liquid spills and common office stains | |
| Reconfigurable modular design | Panel and frame connectors allow disassembly and layout reconfiguration | |
| Accessory mounting capability | Aluminum partition frame supports monitor arms, task lights and paper holders | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | Creates semi-private dedicated workspaces in high-density open office layouts | |
|---|---|---|
| Corporate administrative departments | Provides integrated storage and work surface for clerical and administrative tasks | |
| Call center and shared service environments | Offers visual privacy while maintaining open team communication lines | |
| Small business office fit-outs | Modular design allows scalable cluster layouts for growing office teams | |
| Temporary or project-based office setups | Reconfigurable structure supports layout changes as team sizes adjust | |
| Co-working space dedicated desk zones | Provides lockable storage and defined personal workspace for members |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements for structural performance | |
|---|---|---|
| EN 1335-2:2018 | Office furniture stability requirements for seating-adjacent work surfaces | |
| EN 1022:2019 | Domestic and commercial furniture stability testing for freestanding units |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for load, durability and stability testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and pedestal quality | |
|---|---|---|
| GB/T 3327-2016 | Office desk dimensional and structural performance requirements for desk stability | |
| GB 18584-2001 | Indoor decoration material limit of formaldehyde emission for wooden furniture components | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to worktop and pedestal substrate requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and pedestal quality; 2. GB/T 3327-2016: Office desk dimensional and structural performance requirements for desk stability; 3. GB 18584-2001: Indoor decoration material limit of formaldehyde emission for wooden furniture components; 4. GB/T 4897.3-2003: Particleboard for furniture use, applicable to worktop and pedestal substrate requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
