PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2840 × 2840 × 1100 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity per work surface	120 kg
Worktop surface abrasion resistance	2000 cycles
Recommended number of users	4
Product net weight reference	170 kg
Standard product warranty	5 years
Available color options	6
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1 grade particle board with melamine finish, 2mm PVC edge banding
Partition lower panel	Fabric-wrapped medium density fiberboard core with sound-dampening backing
Partition upper panel	5mm frosted tempered glass, polished edges
Partition frame	1.2mm thick white powder-coated aluminum alloy extrusion, zinc alloy connection brackets
Mobile pedestal body	16mm thick melamine-faced particle board, white finish, metal drawer slides
CPU rolling tray	Cold-rolled steel frame with white powder coating, 50mm black nylon swivel casters
Cable grommets	ABS plastic round desk grommets, 60mm diameter, white finish
Desk support legs	Square white powder-coated steel tubing, 50x50mm cross section
Drawer handles	Zinc alloy pull handles, white finish, 120mm length
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	60mm diameter grommet per work surface routes power and data cables from desk top to floor
Pedestal storage	3 lockable drawers per seat for stationery, files and personal item storage
CPU support	Rolling caddy under each desk holds desktop PC towers, slides out for maintenance access
Partition privacy	1100mm tall dividers block direct line of sight between adjacent seated users
Modular assembly	Knock-down construction allows reconfiguration into 2-person or 6-person clusters with matching panels
Drawer operation	Full-extension ball-bearing slides on all drawers allow 100% access to drawer contents
Surface maintenance	Melamine work surfaces resist common office stains and can be cleaned with standard non-abrasive cleaners
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Suitable for mid-sized open offices to create dedicated individual work zones without full wall construction
Call center and admin departments	Partial dividers reduce visual distraction while enabling supervisor visibility across the cluster
Startup and co-working spaces	Modular layout supports flexible team sizing and quick reconfiguration as headcount changes
Corporate back-office departments	Integrated storage and CPU trays eliminate need for separate freestanding furniture, saving floor space
Seated computer-based task work	750mm work height and full knee clearance support 8-hour daily seated work with standard office chairs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to work surface structural testing
EN 1335-1:2020	Office furniture ergonomic dimensional guidance for seated work surface clearance
EN 1022:2018	Furniture seating and table stability test standard for overall cluster stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and cabinet components
GB/T 35607-2017	Green product assessment standard for furniture, applicable to low-VOC material selection
GB/T 24821-2009	Office desk and table performance test standard for structural load and stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet components;
2. GB/T 35607-2017: Green product assessment standard for furniture, applicable to low-VOC material selection;
3. GB/T 24821-2009: Office desk and table performance test standard for structural load and stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-C4-GF-2840

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-C4-GF-2840

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-C4-GF-2840Open Export Tool

Quick Actions

Post an RFQ

Product Description

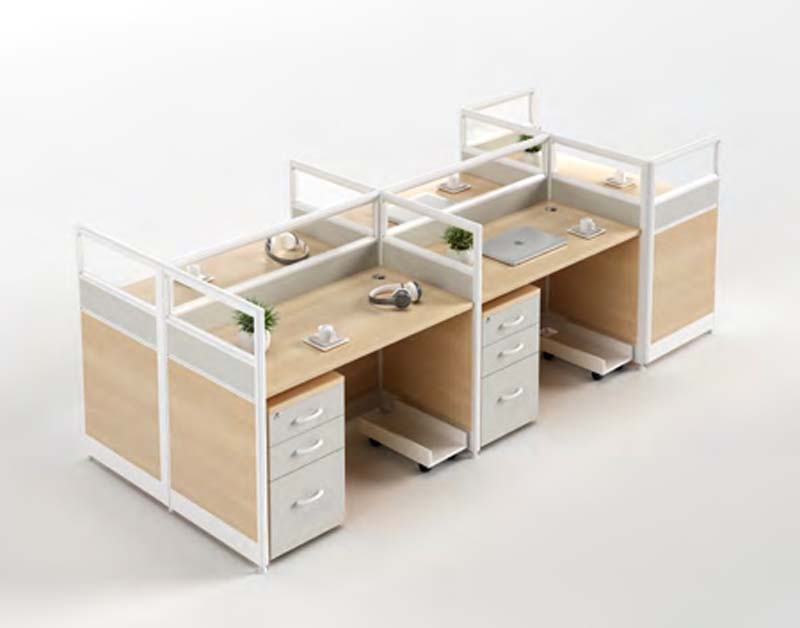

The 4-Person Cross-Cluster Partitioned Office Cubicle Workstation (model OFW-C4-GF-2840, unbranded) delivers a balanced combination of private work zones and open collaborative access for shared office environments. Its cross-cluster layout arranges four individual work positions around a central structural core, with partial-height dividers that create clear separation between seats without blocking overhead sightlines or ambient light. The upper sections of each partition use polished-edge frosted tempered glass framed by white powder-coated aluminum alloy, while lower partition sections feature fabric-wrapped panels with sound-dampening backing, creating a layered visual profile that feels open yet defined. Constructed for long-term daily use, the workstation’s work surfaces are made of E1 grade particle board with a durable melamine finish and sealed with PVC edge banding, supported by square powder-coated steel legs. All connecting hardware is steel, with zinc alloy brackets and drawer pulls built to withstand regular adjustment and use. Each work surface holds a static load of 120kg, with an abrasion-resistant melamine coating that stands up to regular contact with office supplies and equipment; the surface resists common office stains and wipes clean with standard non-abrasive cleaning products. Functional design elements support seamless daily work operations: each position includes a 60mm ABS cable grommet to route power and data cables neatly from the work surface to the floor, a lockable three-drawer mobile pedestal with full-extension ball-bearing slides for storing stationery, files and personal items, and a cold-rolled steel rolling CPU caddy that slides out easily for equipment maintenance. The 1100mm tall dividers block direct line of sight between adjacent seated users to reduce distraction, while the knock-down modular construction allows reconfiguration into smaller or larger clusters using matching panels to adapt to changing team sizes. This workstation suits a wide range of commercial spaces, including mid-sized open plan offices, call center and administrative floors, startup and co-working environments, and corporate back-office departments. Its integrated storage and CPU support eliminate the need for additional freestanding furniture to preserve floor space, and its 750mm work height with full knee clearance supports full-day seated computer-based task work with standard office chairs. For procurement, teams should note the product ships in two cartons per set, includes a 5-year standard warranty, and is offered in 6 color options to align with existing interior design schemes. Assembly takes 40 minutes per set, and the modular design allows future layout adjustments without full furniture replacement.

4-Person Cross-Cluster Partitioned Office Cubicle Workstation Specifications
