PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 1400 × 1200 mm
worksurface height	750 mm
worksurface thickness	25 mm
partition panel height	1100 mm
partition panel thickness	32 mm
return side worksurface depth	600 mm
main worksurface depth	700 mm
seated knee clearance height	680 mm
seated knee clearance width	1200 mm
upper open shelf dimensions	1200 x 300 x 300 mm
lower storage cabinet height	720 mm
leveler foot adjustment range	20 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

unit net weight	115 kg
desktop static load capacity	300 kg per workstation
partition sound transmission reduction	20 dB
recommended user capacity	2 persons
laminate surface abrasion resistance	2000 cycles
product warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

work surface	E1-grade MFC board with light oak thermally fused laminate, PVC edge banding
frame and supports	White powder-coated square steel tubing, 20x40 mm section size
upper privacy screens	5 mm thick frosted acrylic/glass panels set in white metal frames
lower modesty panel	Warm beige fabric-faced MFC panel framed in white metal
lower storage cabinet panels	Light oak wood-grain MFC matching work surface finish, white metal edging
upper open shelf compartments	White matte melamine-faced MFC dividers and shelf surfaces
adjustable feet	Nylon base with steel threaded stem, 12 mm diameter
connection hardware	Zinc-plated steel cam lock and bracket fasteners for modular assembly
edge banding	2 mm thick PVC edging on all MFC panel cut edges
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

modular layout reconfiguration	Interlocking panel connectors allow linear, L, or U layout reconfiguration
floor leveling adjustment	Threaded adjustable feet compensate for up to 20 mm of uneven floor slope
upper open storage	Two divided open overhead compartments for documents and office supplies
lower enclosed storage	Cabinet enclosures under work surface for personal item and supply storage
visual privacy screening	Frosted upper panels block direct seated line of sight between workstations
cable management access	Pre-drilled cable pass-through grommet holes at rear of worksurface
modesty protection	Solid lower front panels block leg visibility from standing positions outside the cubicle
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office spaces	Provides individual work zones with visual privacy in open commercial office layouts
small business and startup offices	Cost-effective modular setup for 2-person teams with integrated storage
government and educational office facilities	Durable commercial-grade construction meets high-traffic workplace requirements
call center and administrative work areas	Low partition height supports team communication while providing personal work space
temporary office fit-out projects	Modular design allows quick reconfiguration and layout changes as needs evolve

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to workstation structure
EN 1335-1:2020	Office furniture ergonomic requirements for seating workspaces, applicable to clearance dimensions
EN 14073-2:2004	Office storage furniture safety requirements, applicable to integrated cabinet compartments

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to load and durability testing
ANSI/BIFMA X5.9-2019	Office storage units performance standard, applicable to integrated shelves and cabinets

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to MFC panel structural components
GB/T 3327-2016	Office desks performance test methods, applicable to worksurface load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade requirement for panel components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to MFC panel structural components;
2. GB/T 3327-2016: Office desks performance test methods, applicable to worksurface load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade requirement for panel components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L2-OAK-WHT-1400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L2-OAK-WHT-1400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L2-OAK-WHT-1400Open Export Tool

Quick Actions

Post an RFQ

Product Description

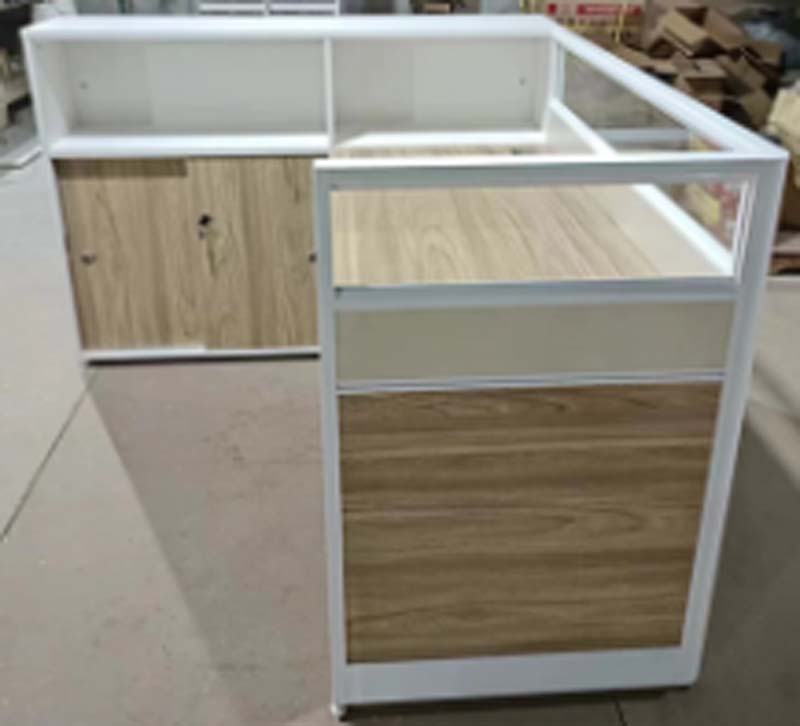

This 2-Person L-Shaped Cubicle Office Workstation features a coordinated light oak and white finish balanced with frosted privacy elements, creating a clean, professional visual presence in workspace layouts. The L-shaped configuration positions two dedicated worksurfaces to maximize corner space, with upper frosted translucent panels set at seated eye level and solid lower modesty panels to define clear individual work zones without fully closing off the surrounding environment. Constructed for commercial durability, the workstation uses E1-grade MFC panels finished with light oak thermally fused laminate for worksurfaces and lower storage cabinet fronts, edged with 2mm PVC edging to protect cut surfaces. The support structure is built from white powder-coated square steel tubing, secured with zinc-plated steel cam lock and bracket fasteners designed for modular assembly. Upper privacy screens are 5mm thick frosted acrylic or glass panels set in matching white metal frames, while lower modesty panels are faced with warm beige fabric. Nylon adjustable feet with steel threaded stems provide stable contact with flooring, and all open shelf surfaces and dividers feature a white matte melamine finish. Practical functional design supports focused, convenient work for two users. Frosted upper panels block direct seated line of sight between adjacent positions, while the partition height retains clear sightlines for easy standing communication between team members. Integrated storage includes two divided open overhead compartments for frequently accessed documents and supplies, plus enclosed under-surface cabinets for personal items and less frequently used materials. Pre-drilled cable pass-through grommets at the rear of worksurfaces keep wiring organized, and interlocking panel connectors allow reconfiguration into linear or U-shaped layouts as space needs shift. Adjustable feet compensate for uneven flooring, and solid lower front panels provide modesty protection from external standing viewpoints. This workstation is well suited for open plan commercial offices, small business and startup spaces, government and educational office facilities, call center and administrative work areas, and temporary office fit-outs that require flexible, quick-to-adapt work zones. For procurement planning, note that the set ships across multiple cartons, supports modular reconfiguration to match evolving floor plans, requires on-site assembly, and comes with a 5-year product warranty. The durable commercial-grade build holds up to consistent high-traffic use, and the integrated storage eliminates the need for separate auxiliary storage units for two-person teams, supporting efficient space utilization across varied workplace environments.

2-Person L-Shaped Cubicle Office Workstation with Frosted Privacy Partitions and Integrated Storage Specifications
