Name: 2-Person Mirrored Corner Office Cubicle Workstation with Privacy Dividers
Brand: KANAITE
SKU: ZGMDUJ

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2475 × 1880 × 1140 mm
Overall footprint	2475 x 1880 x 1140 mm
Work surface height	760 mm
Single L-shaped worktop arm length	1829 mm
Worktop depth	610 mm
Desktop thickness	38 mm
PVC edge banding thickness	2 mm
Privacy divider height above worktop	380 mm
Seated knee clearance height	673 mm
Knee clearance width at curved cutout	800 mm
Integrated 3-drawer pedestal dimensions	400 x 500 x 654 mm
Cable grommet diameter	60 mm
Support frame tube wall thickness	1.2 mm
Open lower shelf dimensions	400 x 400 x 250 mm
Caster wheel diameter for mobile shelf	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	283 kg
Single worktop static load capacity	200 kg
Drawer slide cycle rating	50000 cycles
Laminate surface abrasion resistance	2000 cycles
Recommended user capacity	2 people
Warranty period	10 years
Available finish color options	5
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	38mm thermally fused laminate over particleboard core, anti-scratch/anti-stain finish
Edge banding	2mm PVC edge trim applied to all exposed worktop cut edges
Support frame and divider rails	1.2mm thick powder-coated steel square tubing, white finish
Privacy divider panels	16mm thick white engineered wood panels with white painted finish
Pedestal cabinet carcass	18mm thick white melamine-faced engineered wood
Drawer fronts	16mm thick light grey melamine-faced engineered wood with integrated pull handles
Drawer slides	Cold-rolled steel 3-section full-extension ball-bearing slides
Cable grommets	ABS plastic round cable ports with removable cover, installed one per worktop
Caster wheels for open shelf	Hard nylon swivel casters, 2 per mobile open shelf unit
Leveling feet	PP plastic adjustable feet fitted to all base corners for uneven floor compensation
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Two mirrored L-shaped work zones separated by central divider to support two seated users
Ergonomic access	Curved concave knee cutout centered on each worktop for unobstructed chair entry
Cable management	One 60mm diameter cable grommet per worktop to route power and data cords below surface
Pedestal storage	3-drawer integrated pedestal under left worktop holds supplies and hanging files
Lower shelf storage	Open lower shelf under outer end of each worktop holds CPUs or supplies, one shelf is caster-mounted
Privacy screening	Partial-height white dividers around each station perimeter reduce visual distraction between users
Leveling adjustment	Adjustable base feet compensate for uneven floor surfaces to keep worktop stable
Locking storage support	Pedestal drawers support optional core lock for secure document storage
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Suits open office layouts for two staff per corner footprint, maximizing floor space efficiency
Start-up and small business offices	Integrated storage and dividers eliminate need for separate partitions or drawer units
Administrative and clerical work zones	Ergonomic curved cutout and cable management support daily computer and paperwork tasks
Hot-desking shared work areas	Dual mirrored stations support flexible shared seating for rotating staff
Side-by-side team workgroups	Low dividers maintain visibility for collaboration while reducing visual distraction

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables: dimensional and safety requirements for work surfaces
EN 527-2:2002+A1:2019	Office worktables: mechanical safety and structural durability requirements
EN 13722:2004	Office furniture: storage pedestals, strength and durability requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Standard for desk products: structural performance and durability testing
ANSI/BIFMA X5.9-2019	Standard for storage pedestals: load and cycle durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to panel components
GB/T 3327-2017	Stability, strength and durability requirements for office desks
GB 18580-2017	Formaldehyde emission limits for wood-based panel products, E1 grade requirement
GB/T 4897.3-2015	Performance requirements for particleboard used in furniture construction

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel components;
2. GB/T 3327-2017: Stability, strength and durability requirements for office desks;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panel products, E1 grade requirement;
4. GB/T 4897.3-2015: Performance requirements for particleboard used in furniture construction;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-2P-L1800-CURV

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-2P-L1800-CURV

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-2P-L1800-CURVOpen Export Tool

Quick Actions

Post an RFQ

Product Description

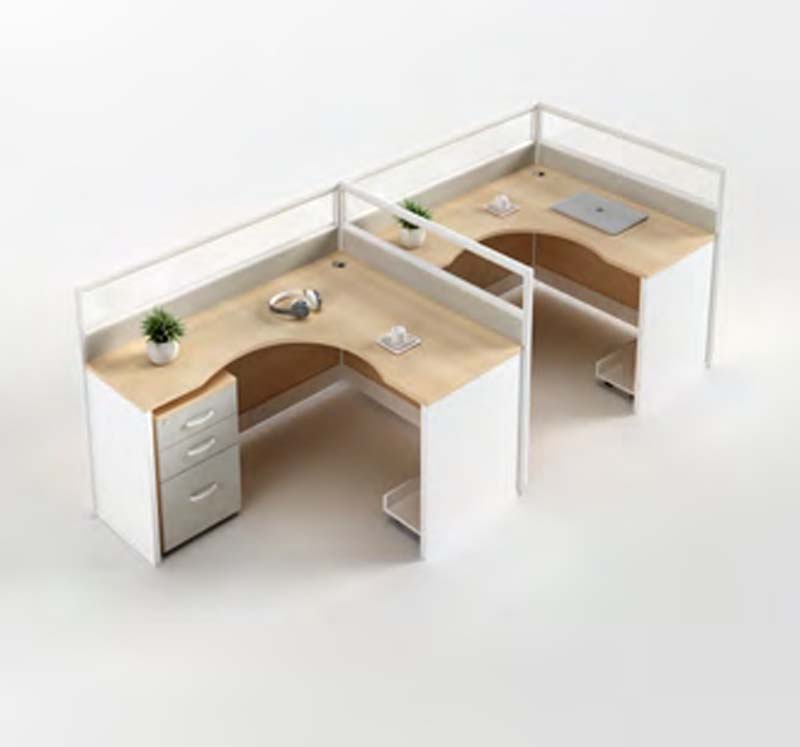

The KANAITE CW-2P-L1800-CURV is a 2-person mirrored corner office cubicle workstation designed to balance individual focus and collaborative functionality for compact workspaces. Its visual design features a mirrored L-shaped layout paired with partial-height privacy dividers, rendered in a coordinated two-tone finish that blends white structural elements with light grey drawer accents for a clean, professional aesthetic. Curved knee cutouts centered on each worktop soften the workstation’s angular lines while supporting ergonomic seated positioning for each user.
Constructed for long-term commercial use, the workstation’s work surfaces use 38mm thermally fused laminate over a particleboard core, treated with an anti-scratch, anti-stain finish, with all exposed cut edges protected by 2mm PVC edge banding. Support frames and divider rails are fabricated from 1.2mm thick powder-coated white steel square tubing, while privacy divider panels use 16mm thick white painted engineered wood. Integrated storage components include an 18mm thick white melamine-faced 3-drawer pedestal fitted with cold-rolled steel full-extension ball-bearing slides, plus lower open shelves—one mounted on hard nylon swivel casters for flexible repositioning. Each worktop is fitted with an ABS plastic round cable grommet with a removable cover, and adjustable base feet stabilize the unit on uneven flooring. The unit supports a maximum single worktop static load of 200kg, with drawer slides rated for 50000 operation cycles, laminate surfaces rated for 2000 abrasion cycles, and comes with a 10-year warranty across 5 available finish options.
The workstation delivers targeted practical functions for daily office use: central low dividers reduce visual distraction between adjacent users while retaining visibility for quick collaboration, the curved knee cutouts allow unobstructed chair entry, integrated cable management routes power and data cords below the work surface, and dedicated storage holds supplies, hanging files, and CPU units. It is suitable for open-plan office corner placements to maximize floor space efficiency, start-up and small business offices where integrated storage eliminates the need for separate partitions or filing units, administrative clerical zones supporting daily computer and paperwork tasks, hot-desking shared work areas for rotating staff, and side-by-side team workgroups.
For procurement planning, note that each set ships with a reference assembly time of 40 minutes, requiring leveling adjustment on uneven floors post-installation. Buyers can select from available finish options to align with existing office decor, and should account for the unit’s 283kg net weight when coordinating delivery and placement, as well as the specified footprint to confirm fit within intended corner spaces. The integrated design removes the need to source complementary privacy partitions or drawer storage separately, streamlining project coordination for outfitting projects.

2-Person Mirrored Corner Office Cubicle Workstation with Privacy Dividers Specifications
