Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 1600 x 1600 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Main worktop depth | 600 mm | |
| Curved knee-opening width | 700 mm | |
| Knee opening minimum height | 690 mm | |
| Under-desk knee depth | 550 mm | |
| Fixed pedestal size | 400 x 550 x 725 mm | |
| Upper drawer front | 400 x 150 mm | |
| Lower storage door | 400 x 560 mm | |
| Privacy screen height above floor | 1200 mm | |
| Privacy screen rise above desktop | 450 mm | |
| Worktop thickness | 25 mm | |
| Side and modesty panel thickness | 25 mm | |
| Privacy screen thickness | 40 mm | |
| Cable grommet diameter | 60 mm | |
| Leveling foot adjustment | 15 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 95 kg | |
|---|---|---|
| Distributed desktop static load | 80 kg | |
| Pedestal top surface load | 30 kg | |
| Drawer slide rated load | 15 kg | |
| Drawer slide cycles | 50000 open-close cycles | |
| Door hinge cycles | 100000 open-close cycles | |
| Cable tray load | 10 kg | |
| Seating capacity | 1 person | |
| Warranty period | 5 years | |
| Color options | 2 finishes |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | 25 mm E0-class wood-based panel with melamine surface | |
|---|---|---|
| Worktop edge | 2 mm rounded PVC edge band with impact-resistant sealing | |
| White support panels | 25 mm white melamine-faced wood-based panels forming side and modesty structure | |
| Pedestal drawer and door fronts | Light oak-look melamine-faced panel with framed white side carcass | |
| Privacy screen faces | 40 mm white and light oak-look laminated panel system with framed perimeter trim | |
| Drawer slides | Three-section silent steel ball-bearing slides with plated corrosion-resistant finish | |
| Drawer lock | Keyed cam lock with black escutcheon securing the top drawer | |
| Leveling feet | Steel-stem adjustable glides with nylon contact pads and 15 mm thread travel |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

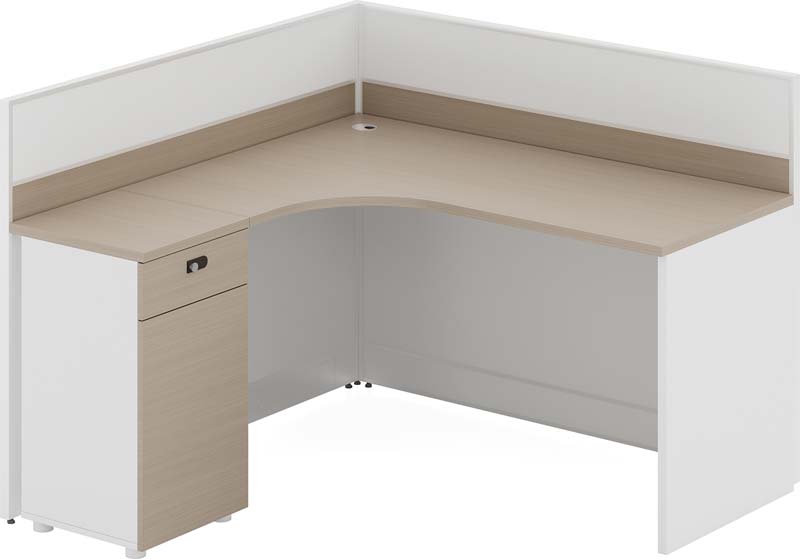

| L-shaped work layout | Two rear work runs meet at 90 degrees around a curved central knee opening for one user and dual-side task placement | |
|---|---|---|
| Privacy enclosure | Two elevated panels create a rear corner screen 450 mm above the desktop while lower panels shield the leg area | |
| Storage operation | The fixed left pedestal provides one 150 mm lockable drawer and one vertical door compartment for files and personal items |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office seat | Suits one clerical, finance or administrative worker needing privacy, cable routing and adjacent secured storage | |
|---|---|---|
| Cluster deployment | Can be repeated in rows or grouped as back-to-back stations while preserving each user's curved knee access |
EU Market Access Requirements* EN Standards
| Office furniture structural safety | EN 527 | |
|---|---|---|
| Office furniture mechanical tests | EN 527 | |
| Storage furniture safety | EN 14073 | |
| Storage furniture stability | EN 14073 |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| Formaldehyde emission reference | GB 18580 | |
|---|---|---|
| Furniture mechanical safety reference | GB/T 10357 |
This product must meet the following technical requirements: 1. Formaldehyde emission reference: GB 18580; 2. Furniture mechanical safety reference: GB/T 10357; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
