PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1160 × 850 × 1030 mm
Overall 2-seat row unit dimensions	1160 x 850 x 1030 mm
Per-seat center distance	580 mm
Finished seat height above floor	460 mm
Fixed writing tablet height above floor	760 mm
Fixed writing tablet dimensions	580 x 300 x 25 mm
Lower secondary storage shelf dimensions	500 x 240 x 15 mm
Mesh modesty panel height	700 mm
Floor fixing plate dimensions	180 x 80 x 5 mm
Seat cushion usable dimensions	480 x 420 x 100 mm
Backrest usable dimensions	480 x 460 x 40 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seat cushion foam density	45 kg/m³
Seat cushion foam thickness	100 mm
Recommended static load per seat	150 kg
Metal frame salt spray resistance	24 h
Wood-based panel formaldehyde emission	E1 grade
Writing surface scratch resistance	2000 cycles
Net weight per 2-seat unit	110 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cantilever support frame	2.0mm cold-rolled steel with matte black polyester epoxy powder coating
Floor mounting brackets	5.0mm welded steel plate with anti-rust phosphating pre-treatment
Fixed writing tablet	25mm high-density particle board with beech wood-tone fire-resistant laminate and PVC edge banding
Seat cushion core	High-resilience polyurethane foam, density 45kg/m³
Seat upholstery	Wear-resistant polyester fabric, 300g/m² weight, 50000-cycle abrasion resistance
Inter-row modesty panels	Tensioned black polyester mesh over steel perimeter frame
Secondary under-tablet shelf	15mm MDF with matching wood-tone laminate and PVC edging
Fastening hardware	M10 x 80mm galvanized steel expansion bolts with plastic cover caps
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Floor-mounted cantilever support	Permanently fixed to tiered lecture hall floors via bolted base plates, no free movement
Fixed integrated writing surface	Rigidly attached non-folding tablet positioned at ergonomic writing height for each seat
Under-tablet storage shelf	Fixed lower shelf positioned below writing tablet for personal item storage during use
Mesh privacy divider	Vertical semi-opaque mesh panel between adjacent rows provides leg privacy without blocking ventilation
Damped seat return mechanism	Spring-loaded damped hinge automatically returns tip-up seat to vertical position when unoccupied
Anti-pinch seat hinge	90° rotation range with rubber damping pads prevents finger injury during seat return
Row modular expansion	Multiple 2-seat units connect end-to-end to form continuous stepped rows of custom length
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Tiered lecture hall installation	Permanent floor-mounted design suits stepped university/college lecture theaters with fixed row layouts
Corporate training room use	Durable high-traffic construction suits repeated daily use in staff training and conference facilities
Secondary school auditorium use	Standard ergonomic sizing fits teenage and adult learners in school assembly and teaching spaces
Examination hall configuration	Fixed tablet and anti-tamper fixed installation supports secure high-stakes exam room deployments
Multi-function conference hall use	Modular row construction suits flexible permanent seating in multi-purpose public event venues
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1729-1:2015	Furniture for educational institutions, safety requirements for seating and tables
EN 1729-2:2015	Furniture for educational institutions, performance requirements for fixed classroom seating
EN 1022:2018	Domestic and non-domestic seating, stability test methods for fixed mounted units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood-based tablet and shelf components
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel frame and hardware components
GB/T 3976-2014	Functional sizes and technical requirements for school desks and chairs, applicable to seat and table height dimensions
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to MDF and particle board components
GB 28007-2011	Safety requirements for children's and school furniture, applicable to structural stability and edge finishing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood-based tablet and shelf components;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and hardware components;
3. GB/T 3976-2014: Functional sizes and technical requirements for school desks and chairs, applicable to seat and table height dimensions;
4. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MDF and particle board components;
5. GB 28007-2011: Safety requirements for children's and school furniture, applicable to structural stability and edge finishing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · YA-007

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · YA-007

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · YA-007Open Export Tool

Quick Actions

Post an RFQ

Product Description

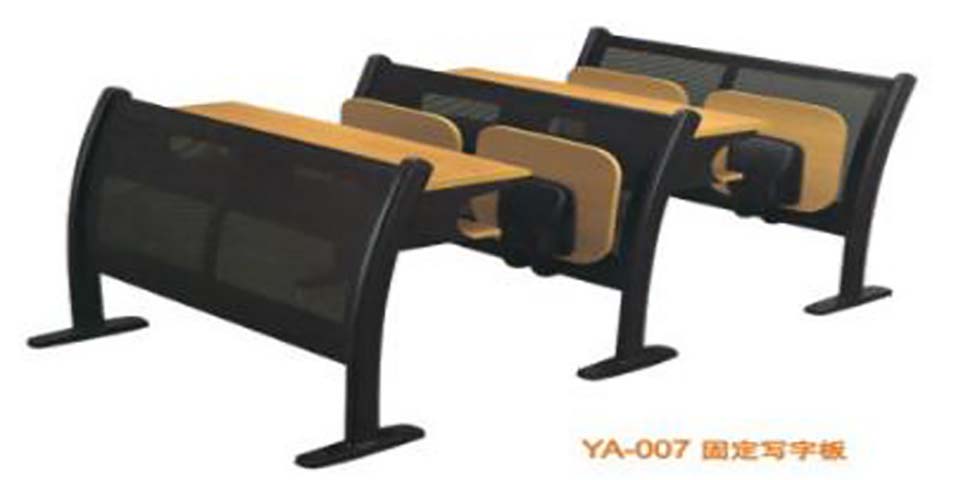

The YA-007 Fixed Writing Tablet Lecture Hall Row Seating Unit is a purpose-built integrated fixed seating solution designed for high-traffic educational and commercial gathering spaces. Each modular 2-seat unit forms the base for continuous custom-length rows, connecting end-to-end to suit the specific layout of stepped or flat permanent seating areas. The unit features a streamlined cantilevered profile, with vertically aligned tip-up seats, rigid forward-positioned writing tablets, and vertical mesh panels that create a clean, orderly visual line across installed rows without creating a closed-in feel. The unit’s core support structure uses cold-rolled steel finished with a matte black polyester epoxy powder coating, paired with heavy welded steel floor mounting brackets treated with anti-rust phosphating pre-treatment to secure the unit firmly to floor surfaces. Seats are built with a bent plywood internal support board, cushioned with high-resilience polyurethane foam and upholstered in wear-resistant polyester fabric, while attached fixed writing tablets and lower secondary storage shelves use high-density particle board and MDF respectively, both finished in beech wood-tone fire-resistant laminate with smooth PVC edge banding. Tensioned black polyester mesh panels set within steel frames sit between adjacent rows, and all fastening hardware uses galvanized steel expansion bolts fitted with matching plastic cover caps for a polished finished appearance. Practical functional features support consistent, low-fuss daily use: each seat operates with a spring-loaded damped hinge that automatically returns the tip-up seat to a vertical position when unoccupied, with rubber damping pads across its rotation range to prevent finger pinching. The fixed non-folding writing tablets are positioned at a standardized ergonomic height for writing tasks, with a lower fixed shelf below each tablet for temporary storage of personal items during sessions. The inter-row mesh modesty panels deliver leg privacy for seated users while maintaining consistent air flow across rows. This seating unit is suited for permanent installation in tiered university and college lecture theaters, secondary school auditoriums, corporate training rooms, high-stakes examination halls, and multi-function public conference halls, as its durable construction stands up to repeated daily use by teenage and adult users. When planning procurement, teams should account for required on-site assembly time, floor mounting preparation for permanent fixed installation, and the modular unit count needed to build full continuous rows for a given space, as individual 2-seat units are shipped across multiple cartons to support streamlined transport and on-site handling.

YA-007 Fixed Writing Tablet Lecture Hall Row Seating Unit Specifications
