PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	760 × 780 × 890 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Static load capacity	150 kg
Seat foam density	40 kg/m³
Back foam density	35 kg/m³
Fabric abrasion resistance	50000 Martindale cycles
Swivel rotation range	360 degrees
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer seat/back shell	Molded plywood inner frame
Upholstery fabric	100% polyester woven fabric
Seat cushion padding	40mm thick high-density PU foam
Backrest padding	30mm thick medium-density PU foam
Armrest padding	20mm thick soft PU foam
Swivel base	1.5mm thick chrome-plated steel
Central swivel mechanism	Powder-coated steel hub
Base leg end caps	Non-slip rubber pads
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel function	Full rotation around central vertical axis, no tilt or height adjustment, for easy reorientation
Integrated ergonomic armrests	Padded continuous armrests formed as part of the seat shell, provide upper body support during relaxed seating
Contoured back support	Curved ergonomic back shape aligns to natural spine curvature, fixed 105-degree recline for lounge posture
Fixed stable base	4-point steel base with rubber floor grips, no casters, designed for stationary placement in lounge settings
Monocoque seat structure	Single molded shell unites seat, back, and arms for consistent structural rigidity and seamless visual design
Easy maintenance surface	Stain-resistant woven fabric allows spot cleaning with mild upholstery cleaner, suitable for high-use public areas
Backrest recline angle	105 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception and waiting areas	Provides comfortable guest seating with professional aesthetic for visitor waiting zones
Corporate lounge and breakout spaces	Supports informal meetings, short breaks, and casual collaboration in open office areas
Hotel lobbies and public seating zones	Heavy-duty fabric and stable base suit high-traffic hospitality environments with frequent use
Modern residential living spaces	Contemporary silhouette complements minimalist, mid-century, or Scandinavian home decor styles
Co-working space common areas	Low-maintenance upholstery and swivel function suit flexible shared work environments for casual work or meetings
Executive office guest seating	Polished chrome base and tailored upholstery create a refined look for placement in front of executive desks
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Applicable for non-domestic seating strength, durability, and stability requirements for contract lounge furniture
EN 1022:2018	Applicable standard for seating stability testing to verify resistance to tipping during normal use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LCH-SW4-760BLU

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LCH-SW4-760BLU

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LCH-SW4-760BLUOpen Export Tool

Quick Actions

Post an RFQ

Product Description

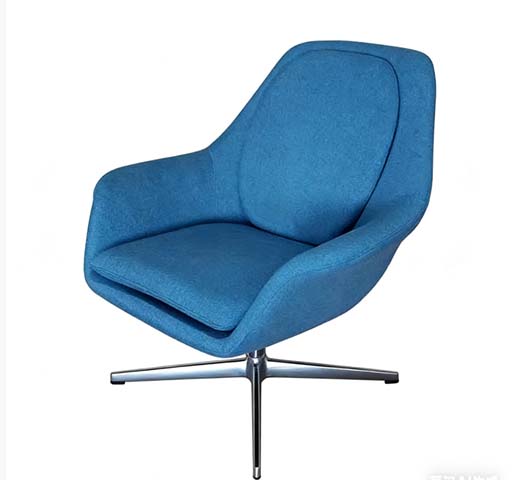

This fabric upholstered swivel lounge chair presents a sleek contemporary silhouette defined by its seamless monocoque shell structure, which integrates the seat, curved backrest, and continuous armrests into a single cohesive form. The chair rests on a polished four-star chrome base, creating a clean visual balance between soft woven blue upholstery and reflective metal finishes that suits a wide range of curated interior schemes. Built for long-term regular use, the chair’s structural core uses a molded plywood inner frame paired with a bent plywood internal seat support board. Upholstered in 100% polyester woven blue fabric, the seating surfaces are padded with layered polyurethane foam: high-density foam for the seat, medium-density foam for the back, and soft foam for the integrated armrests. The swivel base is constructed from chrome-plated steel, connected via a powder-coated steel central hub, with non-slip rubber end caps on each base leg to protect flooring and prevent unwanted movement. Functional design prioritizes relaxed, supportive seating: the contoured backrest is shaped to follow natural spinal curvature, set at a fixed 105-degree recline optimized for lounge posture, with a dedicated lumbar support zone for added comfort. The chair offers smooth 360-degree rotation around its central vertical axis with no tilt or height adjustment, allowing easy reorientation without repositioning the entire base. The stain-resistant woven fabric supports simple spot cleaning with mild upholstery cleaner, making it well suited for high-traffic areas. This lounge chair fits a broad spectrum of commercial and residential settings. It works effectively in office reception and waiting zones, corporate breakout and lounge areas, hotel lobbies and public hospitality seating, co-working common areas, and as guest seating in executive offices. In residential spaces, its clean lines complement minimalist, mid-century modern, and Scandinavian interior design schemes. Procurement teams should note the chair ships in two cartons per set, with a straightforward assembly process. The static load capacity supports a wide range of users, and the fabric’s abrasion resistance stands up to frequent daily use. Its fixed four-point base without casters is designed for stationary placement rather than frequent rolling repositioning, making it ideal for dedicated lounge and seating zones rather than mobile task applications.

Fabric Upholstered Swivel Lounge Chair with 4-Star Chrome Base Specifications
