Name: Fully Upholstered Compact Angular Tub Lounge Armchair
Brand: JUESHANGDA
SKU: 3FY2X0

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	850 × 875 × 835 mm
Seat height	420 mm
Seat width	680 mm
Seat depth	580 mm
Backrest height	415 mm
Armrest height	200 mm
Base footprint width	790 mm
Base footprint depth	820 mm
Seat cushion thickness	120 mm
Side panel thickness	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Static load capacity	200 kg
Cushion foam density	35D
Foam rebound rate	45%
Upholstery abrasion resistance	50000 cycles
Seam stitch pitch	8 stitches per inch
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Woven polyester fabric
Seat cushion filling	High-resilience polyurethane foam
Back/armrest filling	Medium-density polyurethane foam
Internal frame	18mm thick engineered wood panel
Base bottom panel	5mm thick hardboard
Floor contact glides	Non-marking plastic
Seat support layer	2mm thick sinuous spring grid
Seam construction	Double-stitched bonded nylon thread
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Single-person enclosed tub seating
Placement type	Freestanding legless design
Upholstery coverage	Full 360-degree upholstered finish
Cushion integration	Fixed attached seat cushion
Armless arrangement compatibility	Close side-by-side grouping possible
Maintenance access	Surface-cleanable fabric upholstery
Stability design	Wide low center of gravity enclosed base
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception areas	Formal waiting seating for lobbies and guest greeting zones
Hotel lounge spaces	Casual clustered seating for lobby bars and break areas
Residential living rooms	Accent seating for living rooms, reading nooks or bedrooms
Coworking break zones	Informal collaboration seating for casual team discussions
Exhibition and event spaces	Temporary seating for trade shows and gallery openings
Library quiet zones	Individual reading seating for public and private libraries
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture seating strength	EN 12520:2015
Upholstered furniture fire resistance	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge seating durability	ANSI/BIFMA X2020
Chair stability testing	ANSI/BIFMA X2017Clause 7

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety	GB 20400
Furniture mechanical performance seating	GB/T 10357.3
Textile fabric color fastness	GB/T 3920

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety: GB 20400;
2. Furniture mechanical performance seating: GB/T 10357.3;
3. Textile fabric color fastness: GB/T 3920;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LNG-TUB-085

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LNG-TUB-085

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LNG-TUB-085Open Export Tool

Quick Actions

Post an RFQ

Product Description

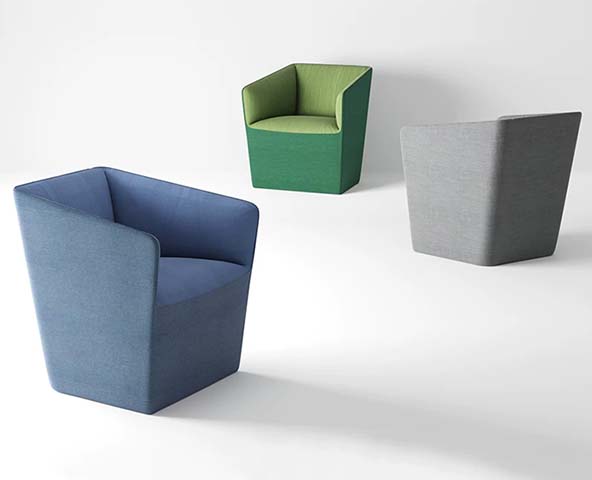

The JUESHANGDA Fully Upholstered Compact Angular Tub Lounge Armchair, model LNG-TUB-085, features a modern geometric aesthetic defined by its angular tub silhouette, wrap-around enclosure, legless low-profile base, and monochrome finish options. Its 360-degree fully upholstered construction creates a cohesive, streamlined appearance, while the wide enclosed base delivers a low center of gravity for stable visual balance that supports close side-by-side grouping without visible gaps between units.
Built for durable long-term use, the chair’s internal frame uses 18mm thick engineered wood panels, paired with a 14mm bent plywood seat support board, 2mm sinuous spring grid seat layer, and 5mm hardboard base panel. All seams are constructed with double-stitched bonded nylon thread at 8 stitches per inch, while non-marking plastic glides line the base to protect floor surfaces. The outer upholstery is woven polyester tech fabric rated for 50000 abrasion cycles, with a fixed attached seat cushion filled with high-resilience polyurethane foam, and back and armrests padded with medium-density polyurethane foam. The finished unit weighs 18 kg, supports a 200 kg static load, and measures 850 x 875 x 835 mm overall, with a 420 mm seat height, 680 mm seat width, 580 mm seat depth, 415 mm backrest height, and 200 mm armrest height, resting on a 790 mm wide by 820 mm deep base footprint.
Designed for flexible single-person seating, the freestanding legless design supports versatile arrangement, while the surface-cleanable upholstery simplifies routine upkeep. It is suited for a wide range of public and private spaces, including office reception lobbies for formal guest waiting, hotel lounge bars and break areas for clustered casual seating, residential living rooms, reading nooks and bedrooms as accent seating, coworking break zones for informal team discussions, exhibition and event spaces for temporary event seating, and library quiet zones for individual reading use.
For procurement planning, each unit ships in 2 cartons with a 23 kg packaged gross weight and 0.26 m³ total volume, requiring 40 minutes of assembly per set. A 20GP container holds 135 sets at 85% space utilization, supporting efficient bulk ordering for large-scale furnishing projects.

Fully Upholstered Compact Angular Tub Lounge Armchair Specifications
