Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 890 x 833 x 841 mm | |
|---|---|---|
| Seat width | 590 mm | |
| Seat depth | 561 mm | |
| Seat height (from floor to cushion top) | 439 mm | |
| Back height (from seat to top of backrest) | 351 mm | |
| Armrest height (from seat to arm top) | 178 mm | |
| Base footprint diameter | 800 mm | |
| Seat cushion thickness | 140 mm | |
| Central stem diameter | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Static weight capacity | 136 kg | |
|---|---|---|
| Net product weight | 24 kg | |
| Seat cushion foam density | 35 kg/m³ | |
| Fabric abrasion resistance | 30000 double rubs | |
| Swivel rotation range | 360 degrees | |
| Floor load distribution | 0.025 MPa | |
| Warranty period | 1 year | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

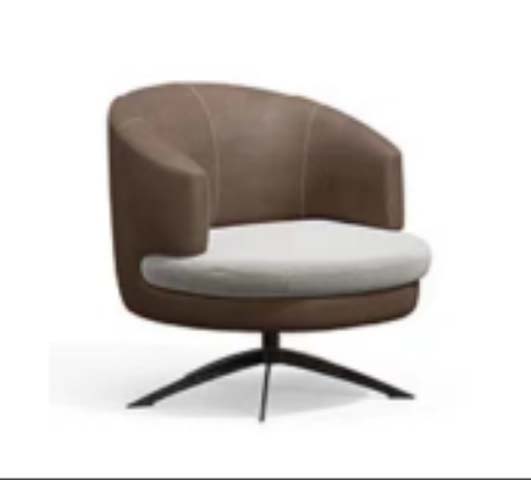

| Outer frame upholstery | Taupe brown woven polyester fabric | |
|---|---|---|
| Seat cushion upholstery | Off-white light gray woven polyester fabric | |
| Seat cushion core | High-resilience polyurethane foam | |
| Backrest support structure | 25 mm thick engineered wood frame | |
| Seat support system | Sinuous spring suspension | |
| Swivel base and stem | 2 mm thick black powder-coated carbon steel | |
| Floor contact pads | 5 mm thick non-slip rubber pads | |
| Internal back padding | 25 mm thick polyurethane foam wrap | |
| Seam construction | 8 mm stitch pitch | |
| Swivel mechanism plate | 3 mm thick steel rotating plate | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Swivel operation | Smooth 360-degree rotation around central vertical axis | |
|---|---|---|
| Seat access | Integrated curved wrap-around armrests on both sides | |
| Floor protection | Rubber foot pads prevent floor scuffing and sliding | |
| Cushion design | Fixed plush seat cushion with soft edge rounding | |
| Posture support | Contoured curved barrel back provides lateral upper-body support | |
| Height adjustment | Fixed seat height with no gas lift or elevation mechanism | |
| Surface compatibility | Suitable for hard flooring and low-pile carpet | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Residential living room accent seating | Placed beside sofas or coffee tables for additional guest seating | |
|---|---|---|
| Office lounge and reception areas | Used in waiting zones or informal breakout spaces for relaxed seating | |
| Bedroom corner seating | Positioned in bedroom corners for reading or relaxation | |
| Hotel lobby guest seating | Deployed in hotel public areas for short-duration guest comfort | |
| Recommended pair configuration | Used as paired seating flanking a small side table | |
| Small apartment space use | Compact footprint fits studio and small living spaces without overcrowding | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Domestic furniture seating safety requirements | EN 12520:2015 | |
|---|---|---|
| Upholstered furniture flame retardancy | EN 1021:2014 |
Standards applicable to China-market projects
| Upholstered furniture safety general requirements | GB 28007 | |
|---|---|---|
| Furniture mechanical performance seating | GB/T 10357.3 | |
| Textile fabric formaldehyde content | GB 18401Class B |
This product must meet the following technical requirements: 1. Upholstered furniture safety general requirements: GB 28007; 2. Furniture mechanical performance seating: GB/T 10357.3; 3. Textile fabric formaldehyde content: GB 18401Class B; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
