Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 711 x 711 x 1039 mm | |
|---|---|---|
| Seat height from floor | 483 mm | |
| Seat depth | 533 mm | |
| Seat width between armrests | 508 mm | |
| Armrest height from floor | 635 mm | |
| Backrest height above seat | 556 mm | |
| Leg height | 191 mm | |
| Minimum required doorway clearance | 813 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended static weight capacity | 159 kg | |
|---|---|---|
| Net product weight | 32 kg | |
| Seat cushion thickness | 160 mm | |
| Back cushion thickness | 102 mm | |
| Seat foam density | 40 kg/m³ | |
| Seat foam rebound rate | 45% | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Seam stitch pitch | 3 stitches per 10 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery

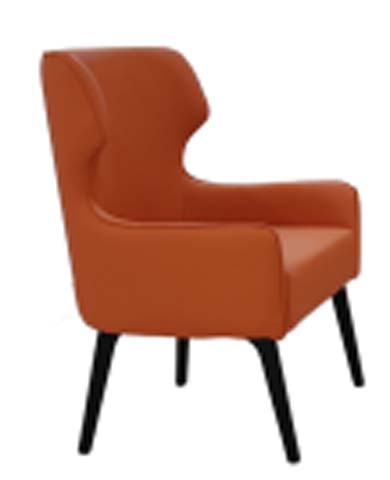

| Seat and back upholstery | 0.8mm thick matte terracotta polyurethane faux leather | |
|---|---|---|
| Internal structural frame | 18mm thick solid rubberwood frame with glued corner blocks | |
| Seat support foundation | 12mm thick plywood deck with zig-zag spring suspension | |
| Seat cushion filling | High-density polyurethane foam wrapped in 100g polyester fiber | |
| Back cushion filling | Medium-density polyurethane foam with contoured edge molding | |
| Legs | 28mm diameter solid hardwood legs with matte black lacquer finish | |
| Leg hardware | M8 steel hanger bolts with lock nuts for leg attachment | |
| Upholstery attachment | Stapled construction with hidden edge seams | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Backrest function | Fixed contoured wingback design with no recline adjustment | |
|---|---|---|
| Armrest function | Integrated continuous padded armrests connecting seat to backrest | |
| Assembly requirement | Knockdown leg attachment with included hex key, no special tools needed | |
| Floor protection | Pre-installed plastic glides on leg bottoms to prevent floor scratching | |
| Seating capacity | Single-person seating for adult users | |
| Cleaning maintenance | Wipe-clean upholstery surface, resistant to common household spills | |
| Structural stability | Splayed 15-degree outward leg angle for 30% increased tip resistance | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Residential living room use | Placed as standalone accent seating next to sofas or coffee tables | |
|---|---|---|
| Bedroom corner seating | Positioned in bedroom corners or next to vanities for additional seating | |
| Office reception area use | Used in small office reception or waiting areas for guest seating | |
| Café and lounge seating | Deployed in boutique cafes or co-working lounge zones | |
| Recommended placement | Positioned with 300mm rear clearance from walls to prevent scuffing | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Domestic furniture seating strength | EN 12520:2015 | |
|---|---|---|
| Upholstered furniture flame resistance | EN 1021:2014 |
Standards applicable to China-market projects
| Upholstered furniture mechanical safety | GB 28007 | |
|---|---|---|
| Furniture leather performance | GB/T 16799 |
This product must meet the following technical requirements: 1. Upholstered furniture mechanical safety: GB 28007; 2. Furniture leather performance: GB/T 16799; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
