PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	840 × 850 × 860 mm
Seat height	460 mm
Seat width	590 mm
Seat depth	550 mm
Backrest height	450 mm
Armrest height	180 mm
Base diameter span	720 mm
Central stem diameter	50 mm
Seat shell thickness	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	136 kg
Unit net weight	32 kg
Seat foam density	45 kg/m³
Seat foam rebound rate	60%
Upholstery abrasion resistance	50000 double rubs
Seam stitch pitch	8 stitches per inch
Warranty period	3 years
Available color variants	4
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and inner arm upholstery	Woven polyester blend fabric
Outer back shell upholstery	Matte tan synthetic leather
Inner seat frame	18mm thick kiln-dried plywood
Cushion fill	High-density polyurethane foam
Central swivel stem	Polished chrome-plated steel
4-prong base structure	2.5mm thick polished chrome-plated steel
Base foot glides	10mm thick non-scratch felt pads
Seam edge trim	Matching light gray piping
Internal swivel bearing	Lubricated steel bearing assembly
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel function	360-degree full rotation around central stem
Base design	Fixed stationary four-prong star base
Adjustment features	No height, tilt or recline adjustments
Armrest integration	Continuous curved armrests molded as part of seat shell
Backrest support	Fixed 110-degree reclined lounge angle
Floor protection	Felt glides pre-installed at each base prong end
Assembly requirement	Tool-fastened connection of base to seat stem
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception areas	Provides relaxed guest seating with modern professional aesthetic
Residential living rooms	Functions as accent lounge seating near sofas or reading nooks
Lounge and waiting spaces	Suitable for high-end hotel lobbies and executive break areas
Open collaborative office zones	Offers casual seating for informal team discussions
Quiet focus corners	Pairs with small side tables for solo relaxation or reading
Showroom and gallery spaces	Works as a design-forward display seating piece for modern interiors
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Domestic furniture strength, durability and safety requirements for seating
EN 1022:2018	Seating stability test standard for non-adjustable lounge chairs

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal plywood frame
GB/T 19995.1-2005	Upholstered furniture durability requirements, applicable to seating structure

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal plywood frame;
2. GB/T 19995.1-2005: Upholstered furniture durability requirements, applicable to seating structure;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SWL-4PRG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SWL-4PRG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SWL-4PRG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

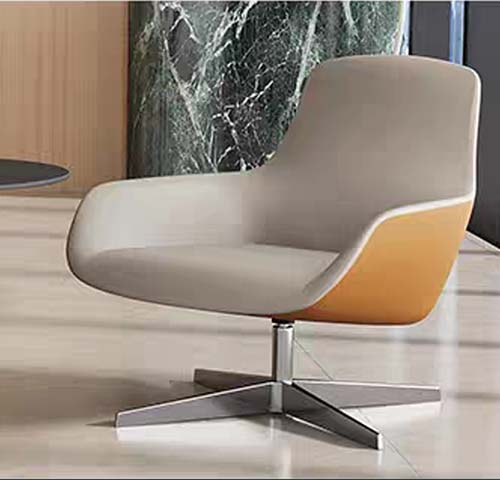

The Two-Tone Curved Shell Swivel Lounge Chair, model SWL-4PRG-001, is an unbranded modern lounge seating piece defined by a smooth, continuous curved shell form that integrates armrests, seat, and backrest into a single cohesive silhouette. Its two-tone upholstery pairs woven polyester blend fabric on the seat and inner arm surfaces with matte tan synthetic leather on the outer back shell, accented by matching light gray piping along seam edges for a polished, tailored finish. It is supported by a four-prong polished chrome-plated steel star base with a wide, stable span, creating a balanced visual contrast between the soft upholstered upper and sleek metallic lower structure. Built for durable, long-term use, the chair’s inner seat frame is constructed from kiln-dried plywood, lined with high-density polyurethane foam cushioning for consistent support. The polished chrome-plated steel central stem connects to a lubricated steel bearing assembly that enables smooth operation, while non-scratch felt glides pre-installed at each prong end protect hard flooring surfaces from scuffs and abrasion. All seams are stitched to a consistent 8 stitches per inch, and upholstery is rated to withstand 50000 double rubs for resistance to regular wear. The chair supports full 360-degree rotation around its central stem, with a fixed 110-degree reclined lounge angle optimized for relaxed seating; it includes no height, tilt, or recline adjustments, and its stationary base is fitted without casters for stable placement. The fixed seat height and dimensioned seat and backrest are engineered to support comfortable upright-relaxed postures, with a recommended static load capacity of 136 kg for broad user suitability. This chair fits a wide range of commercial and residential spaces: it serves as polished guest seating for office reception areas, high-end hotel lobbies, and executive break rooms, works as a casual collaborative seating option for open office zones, functions as an accent piece for residential living rooms, reading nooks, and quiet solo focus corners, and acts as a design-forward display seating option for modern showrooms and galleries. It comes with a 3-year warranty, requires 40 minutes of assembly to connect the base to the seat stem with included fasteners, and ships across two cartons per set. Procurement teams should note assembly labor requirements, total packaged volume for freight planning, and load capacity to align with intended use case demands.

Two-Tone Curved Shell Swivel Lounge Chair with 4-Prong Polished Metal Base Specifications
