Automatic mm / inch conversion · Core engineering specifications
| Finished Seat Cushion Thickness | 90 mm | |
|---|---|---|
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total set weight | 28 kg | |
|---|---|---|
| Chair static load capacity | 150 kg | |
| Seat foam density | 35 kg/m³ | |
| Backrest foam density | 28 kg/m³ | |
| Seam stitching durability | 20000 abrasion cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg | |
| Caster Rolling Durability Reference | Acceptance target 30000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

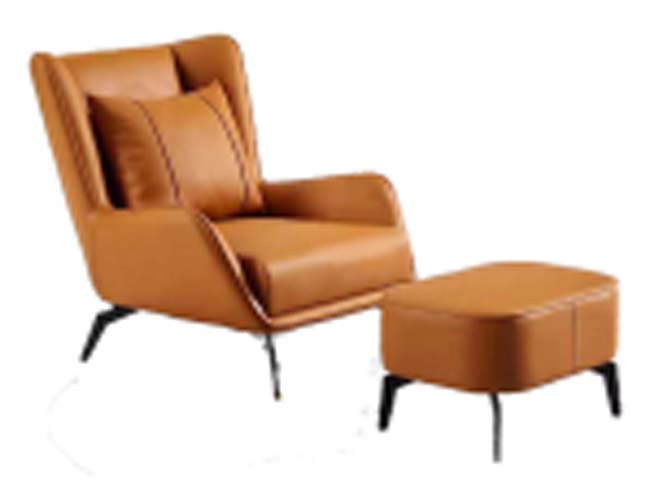

| Chair upholstery | 1.0mm thick tan PU faux leather | |
|---|---|---|
| Ottoman upholstery | Matching 1.0mm thick tan PU faux leather | |
| Seat cushion core | High-resilience polyurethane foam wrapped with 20mm soft polyester fiber | |
| Backrest core | Medium-density polyurethane foam with integrated lumbar support channel | |
| Throw pillow cover | Matching tan PU faux leather with contrast stitched seams | |
| Throw pillow fill | Blown polyester fiber fill | |
| Chair leg frame | 16mm diameter black powder-coated steel tubing | |
| Ottoman leg frame | 16mm diameter black powder-coated steel tubing | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Backrest angle | 105 degrees from horizontal seat | |
|---|---|---|
| Integrated armrests | Padded wide armrests connected to seat and back frame | |
| Lumbar support | Included matching throw pillow positioned for adjustable lower back support | |
| Leg rest support | Matching ottoman positioned at seat height to support elevated leg positioning | |
| Floor protection | Small plastic glide fitted at end of each metal leg | |
| Assembly requirement | Tool-based leg attachment to upholstered body for both chair and ottoman | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Residential living room | Placed as accent seating next to sofas for casual reading and relaxation, suitable for modern interiors | |
|---|---|---|
| Home office lounge zone | Positioned near work desks for short rest breaks during extended work sessions | |
| Hotel guest room seating | Installed in corner or window areas of boutique hotel rooms for guest comfort | |
| Office reception lounge | Used in casual waiting areas for visitor seating with approachable modern aesthetics | |
| Apartment balcony sunroom | Placed in covered semi-outdoor spaces for leisure seating away from direct rain exposure | |
| Bedroom dressing area | Positioned near wardrobes or vanities for casual seating while dressing | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
