Automatic mm / inch conversion · Core engineering specifications

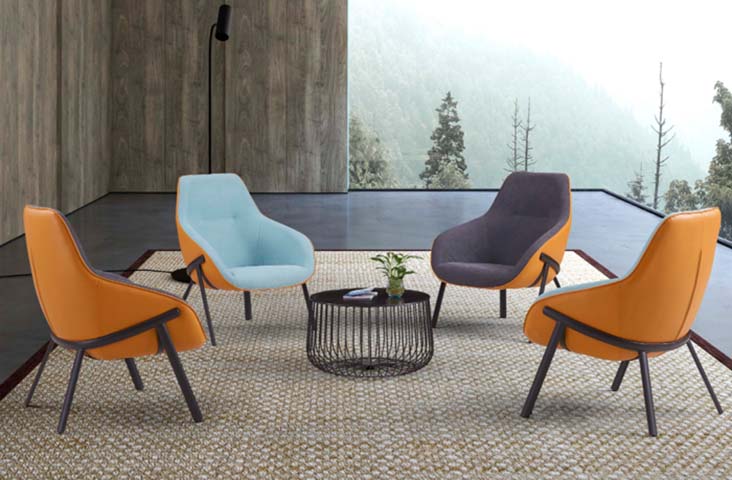

| Overall set footprint (arranged in symmetric cluster) | 2400 x 2400 mm | |
|---|---|---|
| Single lounge chair overall dimensions | 625 x 820 x 737 mm | |
| Chair seat height from floor | 430 mm | |
| Chair seat depth | 574 mm | |
| Chair seat width (between integrated arms) | 530 mm | |
| Chair backrest height from seat | 381 mm | |
| Chair integrated armrest height from floor | 600 mm | |
| Side table overall dimensions | 425 x 425 x 445 mm | |
| Side table under-table clearance from floor | 380 mm | |
| Chair leg splay span (floor contact) | 580 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Single chair net weight | 13 kg | |
|---|---|---|
| Single chair recommended static load capacity | 159 kg | |
| Set seating capacity | 4 people | |
| Upholstery fabric abrasion resistance (recommended acceptance) | 30000 double rubs | |
| Seat foam density (recommended acceptance) | 35 kg/m³ | |
| Backrest foam density (recommended acceptance) | 28 kg/m³ | |
| Seat foam thickness | 80 mm | |
| Floor protection rating | Non-marking rubber glides prevent scratching hard floor surfaces | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Chair outer shell upholstery | Woven matte fabric in warm orange finish | |
|---|---|---|
| Chair seat and inner back upholstery | Soft textured fabric in light blue or dark grey | |
| Chair internal frame | 1.2mm thick powder-coated steel tube | |
| Chair leg structure | 18mm diameter dark powder-coated steel tubing with splayed angle | |
| Chair leg floor glides | Molded non-marking rubber caps | |
| Side table base | 6mm diameter vertical steel slats in matte black powder-coated wire cage drum | |
| Side table top | 8mm thick dark matte engineered wood panel with smooth edge | |
| Upholstery stitching | 8mm seam pitch for tight, durable panel attachment | |
| Frame finish | Matte textured powder coating, scratch-resistant for daily use | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seating design | Continuous integrated bucket seat/back/arm structure for enveloping upper body support | |
|---|---|---|
| Leg stability | Four-point splayed metal leg base distributes weight evenly to prevent tipping | |
| Side table function | Open wire cage base provides unobstructed foot clearance around all sides | |
| Assembly requirement | Knock-down construction requires leg attachment to chair frames and table base to top | |
| Layout flexibility | Chairs can be repositioned freely around the table to suit different conversational arrangements | |
| Seating posture | Fixed 105-degree seat-to-back angle for relaxed semi-reclined lounge posture | |
| Floor compatibility | Rubber glides suitable for hard flooring, low-pile carpet, and area rugs without caster requirement | |
| Surface utility | Low side table height aligns with chair armrests to hold beverages, reading materials, and small decor items | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Office reception and waiting areas | 4-seat layout supports short-term guest seating in lobbies and entry spaces | |
|---|---|---|
| Breakout and collaboration zones | Low lounge height supports informal team discussions away from workstations | |
| Residential living rooms and lounge nooks | Compact footprint fits apartment and small home conversational layouts | |
| Hotel and hospitality guest areas | Durable upholstery and modern styling suit boutique hotel common areas | |
| Coworking space casual meeting zones | Freestanding pieces allow flexible reconfiguration for small group interactions | |
| Showroom and display spaces | Two-tone color options create visual interest in retail or exhibit settings | |
| Care facility and senior common rooms | Stable splayed leg design and low seat height support easy entry and exit | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Domestic furniture – seating – determination of stability, applicable for chair tipping tests | |
|---|---|---|
| EN 12520:2015 | Furniture – strength, durability and safety for domestic seating, applicable for load testing | |
| EN 15372:2016 | Furniture – strength, durability and safety for non-domestic tables, applicable to side table |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Lounge and public seating standard, recommended for commercial use acceptance | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable for side table load and stability testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop quality testing | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to frame and base durability | |
| GB 18584-2001 | Indoor decorating and refurbishing materials – limit of harmful substances in wooden furniture | |
| GB/T 19889.3-2005 | Acoustics – measurement of sound absorption for upholstered furniture applications |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop quality testing; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to frame and base durability; 3. GB 18584-2001: Indoor decorating and refurbishing materials – limit of harmful substances in wooden furniture; 4. GB/T 19889.3-2005: Acoustics – measurement of sound absorption for upholstered furniture applications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
