| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 830 x 990 x 970 mm | |
|---|---|---|
| Seat height | 480 mm | |
| Seat width | 580 mm | |
| Seat depth | 560 mm | |
| Backrest height | 650 mm | |
| Armrest height above seat | 180 mm | |
| Base leg spread diameter | 720 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended static load capacity | 181 kg | |
|---|---|---|
| Net weight | 45 kg | |
| Seat cushion foam density | 40 kg/m³ | |
| Backrest foam density | 32 kg/m³ | |
| Foam rebound rate | 60% | |
| Seam stitch pitch | 8 mm | |
| Upholstery abrasion resistance | 50000 cycles | |
| Product warranty | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery

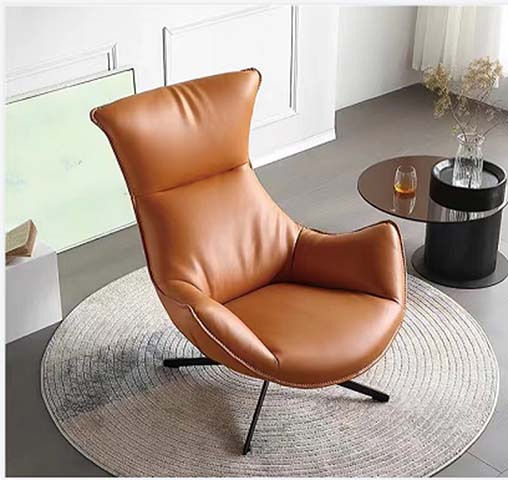

| Seat and back upholstery | 1.2 mm thick smooth tan full-grain leather | |
|---|---|---|
| Internal support frame | 15 mm thick plywood and solid hardwood | |
| Seat suspension | 50 mm wide elastic webbing spaced 80 mm apart | |
| Cushion filling | High-resilience polyurethane foam wrapped in 20 mm Dacron fiber | |
| Base structure | 2 mm thick powder-coated matte black steel tripod | |
| Swivel mechanism | Steel ball-bearing rotating plate | |
| Edge stitching | High-tensile polyester contrast thread | |
| Frame surface treatment | E0-grade low-VOC adhesive for upholstery lamination | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Swivel function | 360-degree smooth rotation via steel ball bearing plate | |
|---|---|---|
| Fixed recline position | 12-degree permanently tilted seat and back | |
| Integrated arm support | Curved wrap-around armrests matched to reclined posture | |
| Floor protection | Plastic end caps on each base leg | |
| Posture support | Integrated contoured headrest and lumbar curve | |
| Non-rocking design | Fixed stable base with no tilt or rocking motion | |
| Maintenance requirement | Leather conditioner application 2 times per year | |
| Seat tilt angle from horizontal | 12 degrees | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Residential living room | Pairs with side tables and sofas for casual lounge seating | |
|---|---|---|
| Home office reading nook | Provides relaxed seating adjacent to bookshelves or desks | |
| Commercial lounge space | Suitable for hotel lobbies, co-working breakout areas | |
| Bedroom accent seating | Placed near vanities or windows as dedicated relaxation seat | |
| Reception waiting area | Offers comfortable seating for office or studio guests | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Seating for non-domestic use, strength and durability requirements | |
|---|---|---|
| EN 12520:2015 | Domestic furniture seating, mechanical safety requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to internal frame | |
|---|---|---|
| GB 20400-2006 | Leather and fur limit of harmful substances, applies to leather upholstery | |
| GB/T 10357.3-2013 | Furniture mechanical test for seating strength and durability | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to internal frame; 2. GB 20400-2006: Leather and fur limit of harmful substances, applies to leather upholstery; 3. GB/T 10357.3-2013: Furniture mechanical test for seating strength and durability; 4. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
