PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	760 × 860 × 950 mm
Seat height	460 mm
Seat depth	610 mm
Seat width	760 mm
Backrest height	490 mm
Armrest height	190 mm
4-star base footprint diameter	700 mm
Floor clearance under seat	150 mm
Integrated armrest width	80 mm
Seat cushion thickness	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	30 kg
Recommended static weight capacity	250 kg
Seat foam density	28 kg/m³
Seat foam rebound rate	55%
Upholstery abrasion resistance	50000 Martindale cycles
Base static load rating	300 kg
Seam stitch pitch	8 stitches per inch
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Smooth matte light grey faux leather, 1.2mm thickness
Seat filling	High-resilience polyurethane foam, 120mm thick
Backrest filling	High-resilience polyurethane foam, 80mm thick
Internal seat shell	12mm thick molded plywood core
Swivel mechanism	Steel 360° rotation bearing, no height adjustment
4-prong base	2mm thick powder-coated black steel, four legs
Floor glides	Hard plastic non-marking glides at leg ends
Stitching thread	High-tenacity polyester matching upholstery color
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Rotation function	360-degree smooth swivel around central vertical axis
Seating posture	Fixed 108-degree relaxed reclined back angle, no tilt adjustment
Arm support	Integrated wrap-around armrests continuous with seat shell
Floor protection	Non-marking glides prevent floor scuffing on hard surfaces
Assembly requirement	Base attaches to seat shell with included hardware, no special tools needed
Mobility	No casters, stationary placement with smooth rotational access
Lumbar support	Contoured backrest provides built-in mid-back lumbar support
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office lounge areas	Suitable for informal waiting and break spaces in corporate workplaces
Hotel lobbies	Provides comfortable guest seating in contemporary hospitality interiors
Residential living rooms	Functions as an accent chair for modern home seating arrangements
Reception waiting zones	Offers relaxed visitor seating for client-facing office entrances
Co-working breakout spaces	Supports casual collaboration and rest in shared work environments
Showroom display areas	Fits modern furniture showroom styling as a contemporary accent piece
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Furniture strength, durability and safety for non-domestic seating
EN 1022:2018	Domestic furniture seating determination of stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.41-2019	Standard for lounge seating durability and structural performance
ANSI/BIFMA X5.1-2017	General office seating safety reference for swivel mechanisms

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal plywood shell
GB 18584-2001	Indoor decorating material limit of harmful substances for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal plywood shell;
2. GB 18584-2001: Indoor decorating material limit of harmful substances for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-SW-4STAR-LG01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-SW-4STAR-LG01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-SW-4STAR-LG01Open Export Tool

Quick Actions

Post an RFQ

Product Description

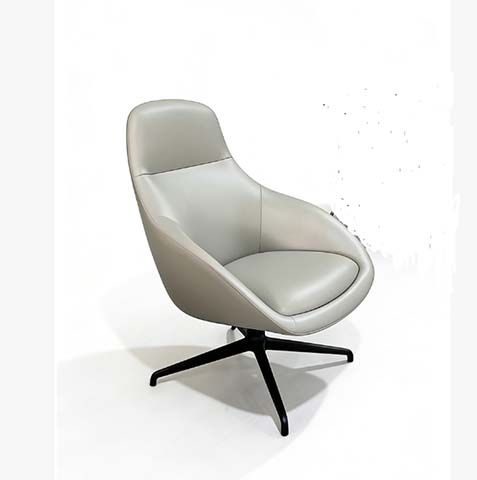

The Light Grey Upholstered 4-Star Swivel Lounge Armchair (model L-SW-4STAR-LG01) is an unbranded modern minimalist seating piece defined by clean, streamlined forms. Its integrated wrap-around armrests flow seamlessly from the contoured seat shell, paired with a sleek black 4-prong base that creates a balanced, uncluttered silhouette suited to contemporary interior schemes. Overall dimensions measure 760 x 860 x 950 mm, with a 700 mm diameter base footprint that maintains a stable, space-efficient profile without visual bulk. Built for durable long-term use, the chair features 1.2mm thick smooth matte light grey faux leather upholstery, stitched with color-matched high-tenacity polyester thread at 8 stitches per inch to deliver 50000 Martindale cycles of abrasion resistance. The seat holds 120mm thick high-resilience polyurethane foam with 28 kg/m³ density and 55% rebound rate, supported by a 12mm molded plywood core and 14mm bent plywood support board, while the backrest uses 80mm thick matching high-resilience foam shaped to provide built-in mid-back lumbar support. The 2mm thick powder-coated black steel 4-prong base houses a steel 360° rotation bearing rated for 300 kg static load, fitted with hard plastic non-marking glides at each leg end to prevent scuffing on hard flooring. The chair supports a 250 kg recommended static weight capacity, with a fixed 108-degree relaxed reclined back angle that requires no tilt or height adjustment; it offers smooth full rotation around its central axis with no casters, remaining stationary while allowing easy directional access. Assembly requires only included hardware to attach the base to the seat shell, taking 40 minutes per set with no special tools needed. This armchair fits a wide range of public and residential settings, including corporate office lounge and break areas, hotel lobbies, client reception waiting zones, co-working breakout spaces, modern residential living rooms as an accent seat, and contemporary furniture showroom displays. Procurement teams should note units ship as one set across two cartons, with a packaged gross weight of 23 kg per set and total carton volume of 0.26 m³, allowing 135 sets to fit in a 20GP container at 85% space utilization for efficient bulk ordering.

Light Grey Upholstered 4-Star Swivel Lounge Armchair Specifications
