PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	780 × 820 × 950 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per chair	26 kg
Static load capacity	150 kg
Swivel rotation range	360 degrees
Recommended maximum user weight	120 kg
Foam density (seat cushion)	45 kg/m³
Foam density (backrest)	35 kg/m³
Upholstery abrasion resistance	50000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	1.2mm thick matte faux leather
Internal frame	18mm thick plywood frame
Seat cushion padding	High-resilience polyurethane foam
Backrest padding	Shaped polyurethane foam with central gather detail
Swivel stem	Polished chrome-plated steel
Base disc	2mm thick black powder-coated steel plate
Swivel bearing	Carbon steel rotating bearing
Stitching	Tone-on-tone matching thread with 8mm stitch pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel mechanism	360-degree smooth rotation via sealed central bearing
Ergonomic back support	Contoured wingback shape with lumbar indentation
Integrated wrapped armrests	Curved upholstered side panels form continuous arm support
Fixed relaxed recline angle	110 degrees between seat and backrest
Floor protection	Felt pad under steel base disc
No-tip stability	Wide disc base distributes weight evenly across contact area
Maintenance friendly surface	Wipe-clean faux leather finish
Swivel stem diameter	50 mm
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office lounge areas	Suitable for waiting zones and informal collaboration spaces with modern aesthetic
Hotel lobbies and guest areas	Provides comfortable guest seating that complements contemporary interior design
Residential living rooms	Works as accent seating in open-plan living spaces or home lounge areas
Reception areas	Creates welcoming seating for visitors in corporate or retail reception zones
Cafe and co-working spaces	Supports casual meetings and relaxed work sessions in flexible work environments
Pairing configuration	Designed to be paired with small pedestal side tables for drink and accessory placement
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LC-SW-820

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LC-SW-820

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LC-SW-820Open Export Tool

Quick Actions

Post an RFQ

Product Description

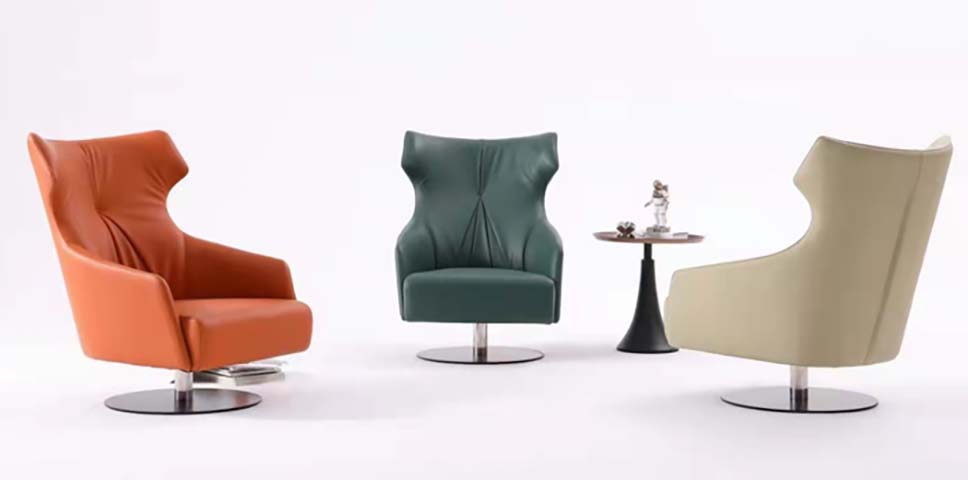

The Swivel Upholstered Lounge Chair with Disc Base (model LC-SW-820, unbranded) is a modern public seating solution defined by its streamlined armless wingback form and clean, wrapped structural lines. Its overall dimensions measure 780 x 820 x 950 mm, with a continuous curved silhouette that integrates upholstered side panels as seamless arm support, eliminating protruding elements for a polished, uncluttered visual profile. The chair sits atop a low-profile black powder-coated steel disc base, connected by a slim polished chrome swivel stem that balances substantial seating comfort with a light, open visual presence suitable for contemporary interiors. Construction prioritizes durability and consistent support for high-traffic use. The internal frame is built from 18mm thick plywood, with a 14mm bent plywood seat support board layered under padding. Seat cushions use 45 kg/m³ high-resilience polyurethane foam with a 90 mm finished thickness, while backrests use shaped 35 kg/m³ polyurethane foam with a subtle central gather detail, 70 mm padding thickness, and a 240 mm tall contoured lumbar support zone. Upholstery is 1.2mm matte faux leather, stitched with tone-on-tone matching thread at 8mm stitch pitch, rated for 50000 abrasion cycles. The 2mm thick steel base uses a carbon steel sealed central swivel bearing, with protective felt pads fitted under the disc to prevent floor damage. Functional design supports relaxed, extended use: the fixed 110-degree recline between seat and back offers a laid-back posture, with a 540 mm clear width between integrated armrests. The sealed bearing enables smooth 360-degree rotation, while the wide disc base distributes weight evenly for no-tip stability. The wipe-clean faux leather surface simplifies routine maintenance. Each chair has a net weight of 26 kg, supports a 150 kg static load, and carries a 120 kg recommended maximum user weight. This chair fits a broad range of public and semi-public settings, including office lounge waiting zones, informal collaboration areas, hotel lobbies, corporate and retail reception spaces, cafe and co-working casual meeting zones, and residential open-plan living areas as accent seating. It is designed to pair with small pedestal side tables for convenient placement of drinks and personal items. For procurement, note that each unit ships across 2 cartons with a 0.26 m³ total volume, 23 kg packaged gross weight, and requires 40 minutes of assembly per set. A 20GP container can hold 135 sets at 85% space utilization, useful for bulk project planning.

Swivel Upholstered Lounge Chair with Disc Base Specifications
