PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	890 × 910 × 890 mm
Seat height	495 mm
Seat depth	585 mm
Seat width	660 mm
Arm height from floor	660 mm
Back cushion height	520 mm
Backrest angle	105 degrees
Metal plinth base height	80 mm
Seat cushion thickness	150 mm
Back cushion thickness	130 mm
Arm panel width	115 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	36 kg
Static weight capacity	136 kg
Seat foam density	40 kg/m³
Back foam density	35 kg/m³
Foam rebound rate	45%
Upholstery abrasion resistance	50000 Martindale cycles
Swivel rotation range	360 degrees
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back cushion upholstery	Woven grid-pattern polyester blend fabric
Outer arm panel upholstery	Smooth matte dark performance fabric or vegan leather
Internal support frame	Kiln-dried hardwood and 12mm plywood composite
Seat suspension system	Sinuous S-shaped steel springs
Cushion fill	High-resilience polyurethane foam with dacron wrap
Swivel base mechanism	Cold-rolled steel swivel bearing with return damping
Plinth base exterior	Brushed 304 stainless steel, 1.5mm thickness
Seam construction	Reinforced stitched seams with 6mm stitch pitch
Seat base decking	Polypropylene webbing support under seat foam
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel mechanism	360-degree smooth rotation with no tilt or height adjustment
Seat support	Fixed non-removable plush seat cushion with sinuous spring suspension
Back support	Angled fixed back cushion with lumbar support zone
Arm support	Integrated wrapped sloped armrests for forearm support during relaxed seating
Base stability	Low-profile wide disc plinth base for anti-tip stability during rotation
Upholstery performance	Stain-resistant woven fabric on high-contact seat/back surfaces
Assembly requirement	Two-part assembly: attach swivel base to seat frame with included hardware
Foot protection	Felt floor protection pads under metal base to prevent floor scratching
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living rooms	Used as standalone accent seating next to sofas or coffee tables for casual relaxation
Office reception areas	Suitable for guest lounge zones to provide modern, comfortable visitor seating
Hotel lobby lounges	Ideal for clustered seating arrangements in hospitality public spaces
Executive office breakout zones	Provides casual meeting seating for informal staff discussions
Modern bedroom spaces	Functions as a vanity or reading chair in residential master bedrooms
High-end retail waiting areas	Suitable for premium retail customer waiting and lounge spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1022:2018	Seating furniture stability test standard for domestic and contract use
EN 12520:2015	Strength, durability and safety requirements for domestic seating
EN 13356:2008	Hardware performance requirements for chair swivel mechanisms

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Performance standard for lounge seating stability and load capacity
ANSI/BIFMA X5.1-2017	General seating safety requirements for structural durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal frame construction
GB 18580-2017	Formaldehyde emission limits for wood-based panels used in internal frame
GB/T 19001-2016	Quality management system guidance for consistent furniture manufacturing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal frame construction;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in internal frame;
3. GB/T 19001-2016: Quality management system guidance for consistent furniture manufacturing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SWL-092-MXD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SWL-092-MXD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SWL-092-MXDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

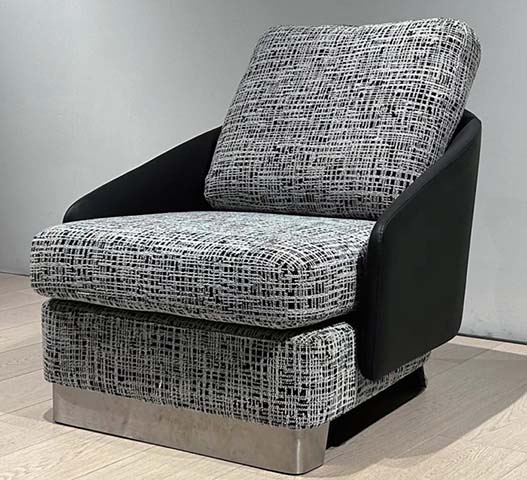

Presenting the Mixed Upholstery Swivel Lounge Armchair (Model SWL-092-MXD), an unbranded contemporary seating piece defined by its balanced mixed-material silhouette and tailored proportions. The chair features a compact, streamlined form measuring 890 x 910 x 890 mm overall, with integrated sloped armrests that sit 660 mm from the floor, a 105-degree angled fixed backrest, and a low-profile 80 mm tall brushed stainless steel disc plinth base that anchors the design without visual clutter. High-contact seat and back surfaces are upholstered in woven grid-pattern polyester blend fabric, framed by smooth matte dark outer arm panels available in performance fabric or vegan leather, creating subtle textural contrast that complements modern interior palettes. Built for consistent long-term use, the chair’s internal structure combines a kiln-dried hardwood and 12mm plywood composite frame, sinuous S-shaped steel spring suspension, and polypropylene webbing seat decking to support fixed, plush cushions. Seat cushions use 40 kg/m³ high-resilience polyurethane foam wrapped in dacron, paired with 35 kg/m³ back foam contoured to include a dedicated lumbar support zone, delivering a 45% foam rebound rate for sustained comfort. Reinforced 6mm pitch stitched seams boost upholstery durability, which is rated to 50000 Martindale cycles, with stain-resistant treatment on high-wear woven fabric sections. The cold-rolled steel swivel bearing with return damping enables smooth 360-degree rotation with no tilt or height adjustment, while the wide disc plinth base provides anti-tip stability throughout movement. The 1.5mm thick brushed 304 stainless steel base delivers a polished, lasting finish. This chair supports a 136 kg static weight capacity, with a 495 mm seat height, 585 mm seat depth, and 660 mm seat width suited to extended relaxed seating. It works as standalone accent seating next to residential living room sofas or coffee tables, a vanity or reading chair in modern master bedrooms, modern visitor seating in office reception areas, clustered lounge seating in hotel lobbies, casual meeting seating in executive office breakout zones, and customer seating in high-end retail waiting areas. Procurement teams should note the chair requires two-part assembly, attaching the swivel base to the seat frame with included hardware in 40 minutes per unit. Each set ships in 2 cartons with a packaged gross weight of 23 kg and total carton volume of 0.26 m³, allowing 135 sets to fit a 20GP container at 85% space utilization for efficient bulk ordering.

Mixed Upholstery Swivel Lounge Armchair with Brushed Metal Plinth Base Specifications
