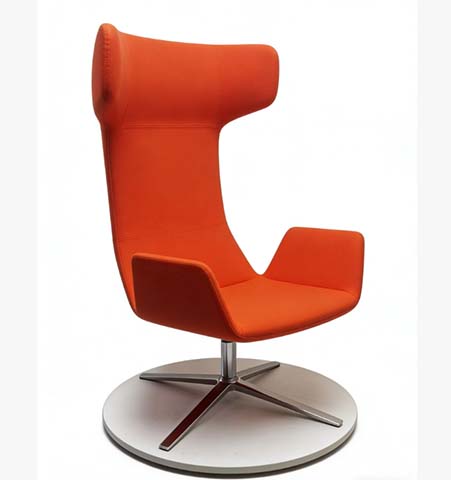

Name: Orange Upholstered High-Back 360° Swivel Lounge Chair with Round Polished Metal Disc Base
Brand: JUESHANGDA
SKU: UXK6FE

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	760 × 860 × 1000 mm
Overall assembled dimensions	760 x 860 x 1000 mm
Seat height	460 mm
Seat width	560 mm
Seat depth	520 mm
Backrest total height	740 mm
Armrest height above seat	180 mm
Round disc base diameter	700 mm
Central support stem diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Assembled net weight	26 kg
Maximum static user weight capacity	136 kg
Swivel rotation range	360 degrees
Seat foam density	40 kg/m³
Seat foam thickness	110 mm
Backrest foam thickness	80 mm
Base static load rating	180 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	360 gsm matte orange woven polyester fabric
Inner seat shell	12 mm thick bent plywood frame
Seat padding	High-density polyurethane foam, 110 mm thick, 45% rebound rate
Backrest padding	High-density polyurethane foam, 80 mm thick, contoured to wrap back
Swivel stem	Polished chrome-plated steel, 50 mm diameter, 3 mm wall thickness
Spider mounting frame	4-prong polished chrome-plated steel, 25 mm wide cross arms
Round disc base	Brushed stainless steel disc, 3 mm thick plate, with 5 mm thick rubber floor protector ring
Seam construction	Double-stitched seams with 8 mm stitch pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel mechanism	Permanent 360° smooth rotation bearing between stem and base
Fixed seating position	No height adjustment, no recline adjustment, no rocking function
Integrated headrest support	Wraparound high back extension provides built-in neck and head support
Integrated armrests	Curved armrests molded as part of the single upholstered shell
Floor protection	Continuous rubber ring along bottom edge of metal disc base
Single-unit assembly	Seat shell attaches to pre-assembled base with included hardware
Seat recline angle from horizontal	12 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Modern office lounge areas	Provides relaxed guest and staff seating in reception and break zones
Residential living rooms	Functions as a sculptural accent chair in contemporary open-plan interiors
Hotel lobby seating	Suitable for high-traffic public waiting areas with durable metal base
Executive office guest areas	Complements premium office interiors for visitor seating near desks
Co-working space collaboration zones	Offers informal seating for casual meetings and individual relaxation
Design showroom displays	Serves as a statement furniture piece for contemporary interior exhibits
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · HB-SW-LG-ORG-700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · HB-SW-LG-ORG-700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · HB-SW-LG-ORG-700Open Export Tool

Quick Actions

Post an RFQ

Product Description

The JUESHANGDA model HB-SW-LG-ORG-700 is a swivel high-back lounge chair defined by a sculptural, modern fixed-height silhouette. Its visual form features a continuous, wraparound upholstered shell with integrated curved armrests, elevated by a slim polished chrome central stem that connects to a wide round brushed stainless steel disc base. The matte orange woven polyester upholstery creates a bold, polished accent, with clean double-stitched seams reinforcing the tailored, cohesive design that balances soft, enveloping form with sleek metallic structural elements. The chair’s construction prioritizes lasting durability and consistent support. The inner seat and back structure relies on bent plywood framing, padded with high-density polyurethane foam: 110 mm thick seat foam with balanced rebound, and 80 mm thick contoured back foam shaped to wrap the user’s torso. The central swivel stem is constructed from chrome-plated steel, mounted to a 4-prong chrome-plated steel spider frame that secures the seat shell to the 3 mm thick brushed stainless steel base. A continuous rubber ring lines the base’s bottom edge to protect finished flooring, while a permanent smooth 360-degree rotation bearing sits between the stem and base to enable unobstructed swivel movement. The chair has no height adjustment, recline, or rocking functions, holding a fixed 12-degree seat angle from horizontal for stable, relaxed seating, with the extended high back providing integrated neck and head support. This lounge chair fits a broad range of commercial and residential settings. It works as relaxed guest and staff seating for modern office reception areas, break zones, executive office visitor spaces, and co-working collaboration zones, while its sculptural profile makes it a striking accent piece for contemporary residential living rooms. Its durable metal base also suits high-traffic hotel lobby waiting areas and design showroom displays, where it can serve as a statement furnishing for contemporary interior exhibits. For procurement, note that each unit ships in two cartons, with straightforward assembly using included hardware completed in roughly 40 minutes per set. The chair supports a maximum static user weight of 136 kg, with a base static load rating suitable for regular public use; buyers should account for shipping volume and weight when planning bulk orders, as 135 sets fit in a 20GP container at 85% space utilization, making the model efficient for large-scale furnishing projects.

Orange Upholstered High-Back 360° Swivel Lounge Chair with Round Polished Metal Disc Base Specifications
