PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	740 × 770 × 830 mm
Seat height	480 mm
Seat width	680 mm
Seat depth	540 mm
Seat cushion thickness	100 mm
Backrest height	370 mm
Armrest height	220 mm
Caster diameter	50 mm
Under-seat ground clearance	30 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static user weight capacity	200 kg
Net product weight	28 kg
Seat foam density	28 kg/m³
Foam rebound rate	45%
Upholstery abrasion resistance	30000 Martindale rubs
Caster rolling load rating per wheel	25 kg
Frame static load rating	250 kg
Limited warranty period	1 year
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery	100% polyester light grey woven fabric
Seat cushion fill	High-density polyurethane foam
Backrest fill	Medium-density polyurethane foam
Internal load-bearing frame	Kiln-dried solid hardwood
Seat support system	Sinuous wire spring base
Caster construction	Nylon housing with thermoplastic polyurethane rubber tread
Upholstery seam construction	Reinforced stitched seams with 8 mm stitch pitch
Underseat base panel	12 mm thick engineered hardboard panel
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mobility feature	Four swivel casters mounted at base corners
Backrest configuration	Fixed upright contoured wrap-around backrest
Armrest configuration	Integrated upholstered arms flowing from back to seat edge
Swivel functionality	360-degree rotation not included
Assembly requirement	Partial assembly for caster installation
Floor protection feature	Soft rubber caster tread
Fabric maintenance	Spot clean with mild detergent and soft cloth
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office lounge and breakout areas	Light neutral color and mobile design for flexible informal meeting spaces
Residential living room accent seating	Compact wrap silhouette fits small apartments and modern living spaces
Reception and waiting areas	Soft upholstered comfort for short-term visitor seating in commercial spaces
Bedroom or dressing room seating	Slim profile and mobility for flexible placement near vanities or wardrobes
Co-working shared spaces	Caster base allows easy reconfiguration for collaborative or individual use
Hotel guest room supplementary seating	Durable woven upholstery suitable for high-turnover hospitality environments
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Furniture – Strength, durability and safety for non-domestic seating
EN 1021-1:2014	Furniture – Assessment of ignitability of upholstered furniture (smoldering cigarette)

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2021	Standard for lounge seating, recommended for commercial application testing
ANSI/BIFMA X5.1-2017	General purpose office chairs – caster durability test reference for mobile base

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal hardwood frame
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances in wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal hardwood frame;
2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances in wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LCA-740-GRY-CAS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LCA-740-GRY-CAS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LCA-740-GRY-CASOpen Export Tool

Quick Actions

Post an RFQ

Product Description

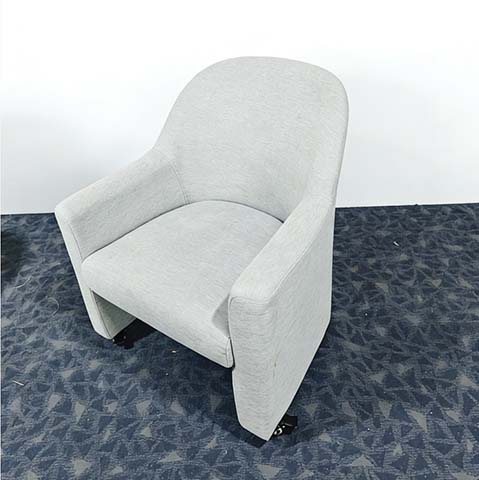

The Light Grey Woven Upholstered Mobile Caster Armchair features a clean contemporary wrap-around silhouette, with integrated curved armrests that flow seamlessly from the fixed upright contoured backrest down to the seat edge, creating a cohesive, fully upholstered form finished in a soft light grey woven fabric. The piece mounts four swivel casters at the corners of its base, with no 360-degree seat rotation function, balancing easy repositioning with stable, consistent seating alignment. Its internal load-bearing structure uses a solid kiln-dried hardwood frame, paired with a sinuous wire spring seat support system, a bent plywood internal support board, and an engineered hardboard underseat panel. Seat cushions are filled with high-density polyurethane foam, while backrests use medium-density polyurethane foam, all secured with reinforced stitched seams. The external upholstery is 100% woven polyester, and casters are constructed with nylon housings and soft thermoplastic polyurethane rubber treads to protect floor surfaces. The upholstery offers robust abrasion resistance, with a rated static user weight capacity suited to regular daily use; maintenance is straightforward, requiring only spot cleaning with mild detergent and a soft cloth. This armchair is well suited to a wide range of commercial and residential spaces. In commercial settings, it works effectively in office lounge and breakout areas, co-working shared spaces where easy reconfiguration supports both individual and collaborative work, reception and waiting zones for short-term visitor seating, and hotel guest rooms where durable fabric stands up to high-turnover use. For residential applications, it serves as compact living room accent seating ideal for smaller apartments, or as flexible supplementary seating in bedrooms and dressing rooms, where its slim profile and mobility support placement near vanities or wardrobes. Procurement teams should note the product requires partial assembly for caster installation, with a typical assembly time of 40 minutes per set; each unit ships across two cartons. The unbranded model LCA-740-GRY-CAS carries a net weight of 28 kg, with packaging dimensions and load factors calculated for efficient bulk shipping. Specification details including fixed seat height, cushion thickness, and caster load rating are available to align selections with project layout and use requirements, and the light neutral tone coordinates easily with most existing interior palettes.

Light Grey Woven Upholstered Mobile Caster Armchair Specifications
