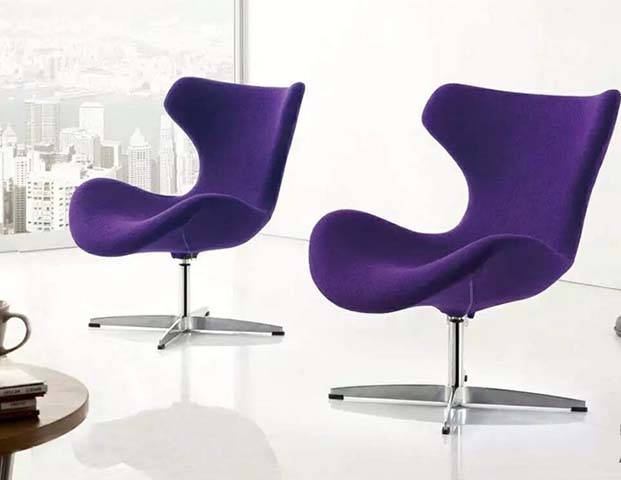

Name: Armless Contoured Purple Fabric Swivel Lounge Chair with Polished Chrome 4-Prong Base
Brand: JUESHANGDA
SKU: W77TM8

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	890 × 900 × 1000 mm
Seat height	460 mm
Seat width	690 mm
Seat depth	560 mm
Backrest height	690 mm
Base diameter	760 mm
Central support stem diameter	50 mm
Floor glide height	5 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Static weight capacity	136 kg
Upholstery abrasion resistance	50000 double rubs
Seat foam density	45 kg/m³
Back foam density	40 kg/m³
Foam rebound rate	45%
Swivel rotation	360 degrees
Warranty period	5 years
Seam stitch pitch	8 stitches per inch
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Deep purple woven polyester fabric, 1.2mm thickness
Seat and back inner shell	Molded polyurethane foam over rigid internal frame
Internal support frame	12mm thick bent plywood inner shell
Central support stem	Polished chrome-plated steel tube, 2mm wall thickness
Base structure	Polished die-cast aluminum four-prong star base, 8mm wall thickness
Floor protection glides	Non-marking rubber pads at each base tip
Swivel bearing mechanism	Steel ball bearing swivel joint between stem and seat shell
Upholstery underlining	Fire-retardant spun polyester interliner
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel operation	360-degree smooth rotation without height adjustment, locked to fixed seat height
Lumbar support	Integrated concave molded lumbar curve built into seat-back shell
Upper back support	Winged curved upper back design to provide shoulder and upper torso support
Floor protection	Non-marking rubber glides on all four base prongs to prevent hard floor damage
Posture design	Fixed relaxed lounge recline angle of 105 degrees between seat and back
No recline adjustment	Fixed backrest angle with no tilt or lock mechanism
Armless design	No protruding armrests to allow flexible seating positions and easy access
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception areas	Sculptural design provides premium guest seating for corporate lobbies and waiting zones
Open plan breakout spaces	Armless swivel design supports flexible casual interaction between colleagues
Residential living rooms	Compact footprint works as an accent chair for modern living spaces and reading nooks
Hotel lounge zones	Durable construction meets high-traffic public seating requirements for hospitality settings
Executive office guest areas	Polished chrome and bold purple finish complements high-end office interior schemes
Co-working common areas	Swivel function allows users to reorient easily in collaborative shared spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1022:2018	Domestic furniture – Seating – Determination of stability, required for overturn resistance validation
EN 12520:2015	Furniture – Strength, durability and safety for domestic seating, applicable for structural performance
EN 13759:2009	Contract furniture – Seating – Test methods for swivel mechanisms, applicable for swivel durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2022	Lounge and public seating standard, recommended for commercial installation performance requirements
ANSI/BIFMA X7.1-2021	Standard for formaldehyde and TVOC emissions from office furniture, recommended for indoor air quality

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to inner plywood shell construction
GB 20400-2006	Limit of harmful substances in leather and fur upholstered furniture, applicable for fabric compliance
GB/T 10357.3-2013	Test method for furniture mechanical strength of chairs and stools, applicable for static load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner plywood shell construction;
2. GB 20400-2006: Limit of harmful substances in leather and fur upholstered furniture, applicable for fabric compliance;
3. GB/T 10357.3-2013: Test method for furniture mechanical strength of chairs and stools, applicable for static load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LGE-SWL-PUR-4PRONG-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LGE-SWL-PUR-4PRONG-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LGE-SWL-PUR-4PRONG-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The JUESHANGDA model LGE-SWL-PUR-4PRONG-01 armless contoured purple fabric swivel lounge chair delivers a sculptural, contemporary seating solution that balances aesthetic appeal with durable, functional design for both public and private settings. Visually, the chair features a streamlined, armless silhouette defined by smooth, contoured lines, upholstered in rich deep purple woven polyester tech fabric, paired with a polished chrome four-prong base that lends a sleek, refined metallic accent to the form. The compact, balanced layout sits neatly within varied floor plans without overwhelming surrounding interior elements. Construction is built for consistent long-term use across high-traffic environments. The seat and back wrap a rigid internal support structure of 12mm bent plywood, topped with molded polyurethane foam: seat foam carries a density of 45 kg/m³, while back foam measures 40 kg/m³ with a 45% rebound rate, all covered by 1.2mm thick woven polyester upholstery over a fire-retardant spun polyester interliner rated for 50000 double rubs of abrasion resistance. The central support is a 2mm wall thickness polished chrome-plated steel tube connected via a steel ball bearing swivel joint to the seat structure, anchored to an 8mm wall thickness polished die-cast aluminum four-prong base fitted with non-marking rubber glides at each tip. Key functional features support comfortable, low-fuss use: the integrated concave lumbar curve and winged curved upper back deliver targeted support for the lower back, shoulders and upper torso, set to a fixed 105-degree relaxed lounge recline with no tilt or height adjustment for consistent posture support. The 360-degree smooth swivel mechanism allows easy reorientation, while the armless design removes protruding barriers to enable flexible seating positions and unobstructed access. Non-marking glides protect hard floor surfaces from scuffs and damage during movement. The chair is well suited for a wide range of spaces, including corporate office reception lobbies and waiting zones, open-plan office breakout areas, co-working common spaces, executive office guest seating areas, hotel lounge zones, and residential modern living rooms or reading nooks, where its bold finish and sculptural form serve as a complementary accent piece while meeting the durability demands of frequent public use. For procurement planning, note each unit ships in two cartons with a total packaged gross weight of 23 kg, requiring 40 minutes of assembly per set. The chair supports a static weight capacity of 136 kg, with an 18 kg net weight, and fits 135 sets per 20GP container at 85% space utilization for efficient bulk shipping planning.

Armless Contoured Purple Fabric Swivel Lounge Chair with Polished Chrome 4-Prong Base Specifications
