Name: Asymmetric Wrap-Back 360° Swivel Lounge Armchair
Brand: JUESHANGDA
SKU: WUNBH4

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	840 × 880 × 860 mm
Seat height from floor	460 mm
Seat width	720 mm
Seat depth	680 mm
Backrest height above seat	400 mm
Seat cushion thickness	180 mm
Arm/wrap enclosure height	280 mm above seat
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	28 kg
Static weight capacity	136 kg
Seat foam density	45 kg/m³
Foam rebound rate	60%
Seam stitch pitch	8 stitches per 30mm
Warranty period	1 year
Available color variants	8
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal load frame	1.5mm thick welded steel tubing
Seat support layer	Sinuous S-shaped steel springs
Cushion fill	45kg/m³ high-resilience polyurethane foam wrapped in 20mm polyfiber
Upholstery outer layer	1.2mm thick abrasion-resistant fabric/leatherette, 50000 double-rub wear rating
Swivel base plate	3mm thick polished chrome-plated steel disc
Swivel bearing mechanism	Enclosed steel ball bearing swivel assembly
Upholstery stitching	High-tenacity polyester thread, reinforced stress point seams
Base anti-slip pad	5mm thick EVA rubber pad under disc base
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel motion	360-degree full rotation on sealed ball bearing, no return mechanism
Seating support	Wrap-around asymmetric back/arm provides lateral torso support for single occupant
Cushion performance	Medium-firm foam support designed for 2+ hours of continuous lounge seating
Floor protection	Underside of chrome base fitted with non-marking rubber pad to prevent floor scratches
Assembly requirement	Fully assembled delivery, no on-site fastener installation required
Customization option	Compatible with custom two-tone upholstery color blocking
Swivel base diameter	620 mm
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room use	Ideal for placement in living room lounge zones or reading nooks
Commercial lounge application	Suitable for hotel lobbies, co-working break areas, and boutique reception spaces
Pairing configuration	Can be deployed as single accent chair or paired with matching ottoman for extended lounge comfort
Minimum entry clearance	Requires 700mm clear doorway width for delivery
Flooring compatibility	Safe for hardwood, tile, polished concrete, and low-pile carpeted floors
Style matching	Aligns with contemporary, organic modern, minimalist, and post-modern interior design schemes
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Seating safety stability	EN 12520:2015
Upholstered furniture flammability	EN 1021:2014
Furniture surface durability	EN 14465:2006

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge seating durability	ANSI/BIFMA X2021
Seating stability	ANSI/BIFMA X2017Clause 5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety	GB 28007
Furniture mechanical performance	GB/T 3324
Upholstery fabric durability	GB/T 21196.2

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety: GB 28007;
2. Furniture mechanical performance: GB/T 3324;
3. Upholstery fabric durability: GB/T 21196.2;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SWL-ASYM840-CHROME

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SWL-ASYM840-CHROME

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SWL-ASYM840-CHROMEOpen Export Tool

Quick Actions

Post an RFQ

Product Description

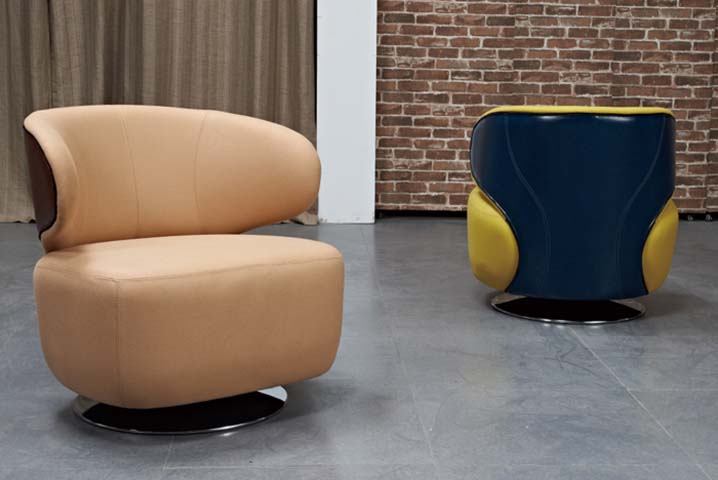

The Asymmetric Wrap-Back 360° Swivel Lounge Armchair from JUESHANGDA, model SWL-ASYM840-CHROME, is a sculptural contemporary upholstered seating piece defined by its distinctive asymmetrical wrap-around back and arm enclosure. This structural design creates an enveloping, soft seating silhouette supported by a sleek polished metal base, delivering a refined visual presence that aligns with contemporary, organic modern, minimalist, and post-modern interior design schemes. Constructed for long-term durability, the chair’s internal load frame is built from welded steel tubing, with sinuous S-shaped steel springs forming the seat support layer above a bent plywood support board. The seating surfaces are padded with high-resilience polyurethane foam wrapped in polyfiber, delivering medium-firm support calibrated for extended continuous lounge seating, with reinforced stress-point seams stitched with high-tenacity polyester thread for structural integrity. The outer upholstery uses abrasion-resistant tech fabric, mounted atop a polished chrome-plated steel disc base fitted with an enclosed steel ball bearing swivel assembly that enables full 360-degree rotation with no forced return mechanism. A non-marking EVA rubber pad affixed to the base underside prevents floor scratches, making the chair safe for use on hardwood, tile, polished concrete, and low-pile carpeted surfaces. The chair is ideal for residential placement in living room lounge zones or dedicated reading nooks, and equally suited for commercial settings including hotel lobbies, co-working break areas, and boutique reception spaces. It can be deployed as a standalone accent chair or paired with a matching ottoman for enhanced lounge comfort, and supports custom two-tone upholstery color blocking alongside 8 standard color variants to coordinate with existing decor. For procurement planning, note the chair ships fully assembled with no on-site fastener installation required, delivered in two cartons per set. Delivery requires a minimum clear doorway width for entry. The product is covered by a 1-year warranty, with a rated static weight capacity to support regular daily use.

Asymmetric Wrap-Back 360° Swivel Lounge Armchair Specifications
