Automatic mm / inch conversion · Core engineering specifications
| Set overall footprint | 2000 x 2000 mm triangular layout | |
|---|---|---|
| Single lounge chair overall dimensions | 760 x 720 x 820 mm | |
| Chair seat height | 460 mm | |
| Chair seat width | 570 mm | |
| Chair seat depth | 570 mm | |
| Chair backrest height | 420 mm | |
| Round side table overall dimensions | 600 mm diameter x 550 mm height | |
| Tabletop thickness | 20 mm | |
| Table pedestal column diameter | 200 mm | |
| Table base plate diameter | 450 mm | |
| Armrest height above seat | 180 mm | |
| Chair under-seat clearance | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Single chair static load capacity | 160 kg | |
|---|---|---|
| Single chair net weight | 16 kg | |
| Fabric abrasion resistance | 50000 cycles | |
| Fabric lightfastness grade | 6 | |
| Recommended user weight per seat | 110 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg | |
| Caster Rolling Durability Reference | Acceptance target 30000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Chair upholstery fabric | Dark green polyester boucle-style fabric, 0.8 mm thickness | |
|---|---|---|
| Chair seat cushion filling | 35 kg/m³ high-resilience polyurethane foam, 120 mm thickness | |
| Chair backrest filling | 25 kg/m³ polyurethane foam, 80 mm thickness | |
| Chair internal frame | 25 mm thick engineered pine/poplar wood frame, sinuous spring support | |
| Side table tabletop | White matte engineered stone/laminate surface, scratch-resistant finish | |
| Table upper column and base plate | 1.5 mm thick powder-coated black steel | |
| Table middle pedestal section | Tan fabric-upholstered MDF core, 10 mm foam underlay | |
| Chair bottom trim | Black non-marking fabric base trim, floor protection pads | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features

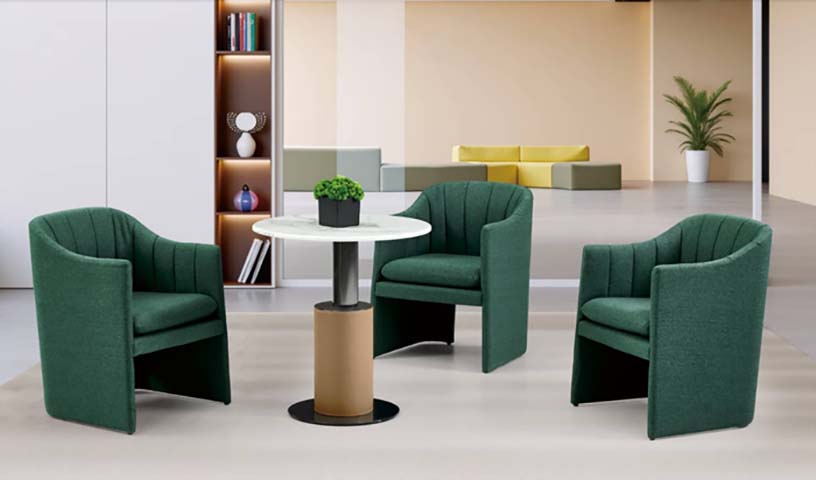

| Seating configuration | 3 fixed-position barrel chairs arranged for 3-person small group conversation | |
|---|---|---|
| Back support design | Vertical channel-tufted curved wrap-around back with integrated arm enclosures | |
| Base design | Open cutout legless base for chairs, no casters or swivel mechanism | |
| Table function | Pedestal side table for placing beverages, small plants or personal items | |
| Cleaning feature | Stain-repellent fabric surface, wipe-clean tabletop for public area maintenance | |
| Assembly requirement | Semi-knockdown assembly, table requires attaching column/base to top | |
| Floor protection | Non-scuff felt pads on all furniture contact points to prevent floor damage | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Office reception waiting area | Suitable for short-stay visitor waiting with adjacent table for items | |
|---|---|---|
| Open office collaboration zone | Supports 3-person informal small group discussion and quick meetings | |
| Corporate lounge breakout space | Provides relaxed soft seating for employee rest and informal catch-ups | |
| Retail/cafe customer seating area | Commercial-grade durability suitable for high-traffic public customer areas | |
| Hotel lobby conversational nook | Premium aesthetic fits modern hotel and hospitality public seating designs | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Strength, durability and safety for non-domestic seating, applicable to public lounge chairs | |
|---|---|---|
| EN 15372:2008 | Performance requirements for non-domestic tables, applicable to side/cocktail tables | |
| EN 1021-1:2014 | Upholstered furniture flammability cigarette ignition resistance requirement |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Lounge seating performance and safety standard for public/commercial use | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Desk/table products performance standard, applicable to pedestal side tables |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood-framed upholstered chairs | |
|---|---|---|
| GB/T 1952.1-2012 | Safety and performance requirements for upholstered furniture sofas/armchairs | |
| GB 18584-2001 | Limit of harmful substances in wood furniture for indoor use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood-framed upholstered chairs; 2. GB/T 1952.1-2012: Safety and performance requirements for upholstered furniture sofas/armchairs; 3. GB 18584-2001: Limit of harmful substances in wood furniture for indoor use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
