| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1800 x 350 x 1500 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single open shelf static load capacity | 25 kg | |
|---|---|---|
| Unit net weight | 48 kg | |
| Adjustable foot leveling range | 10 mm | |
| Recommended wall anchor pull-out resistance | 500 N | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Open shelf panels | 18mm melamine-faced engineered wood with walnut grain finish | |
|---|---|---|
| Structural frame | Powder-coated matte black square steel tubing | |
| Cabinet doors | 16mm matte dark gray melamine engineered wood | |
| Leveling feet | Injection-molded polypropylene with steel threaded insert | |
| Hanging bar | 19mm diameter powder-coated steel tube | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

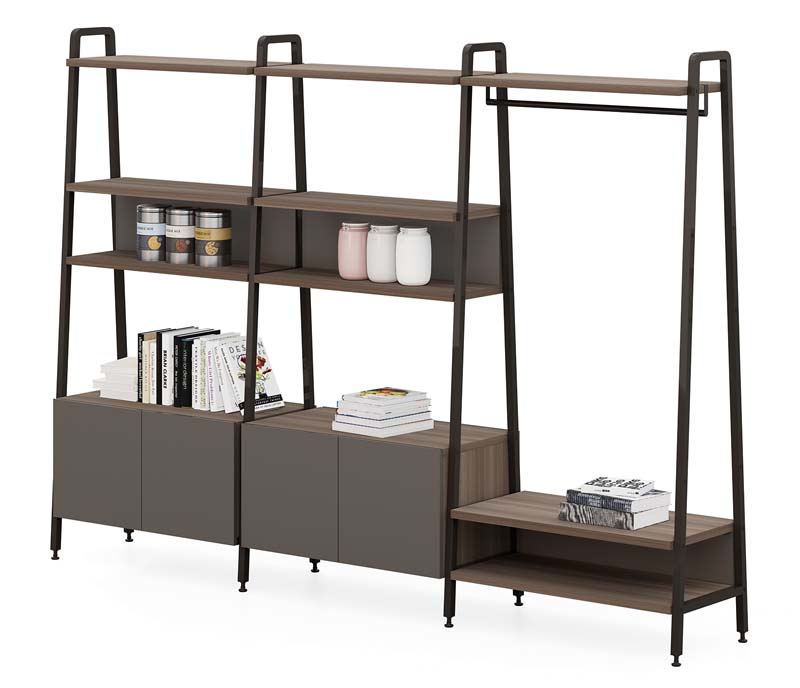

| Modular assembly | Three connected frame sections bolt together to form a continuous storage unit | |
|---|---|---|
| Leveling adjustment | Threaded feet rotate to adjust leg height and stabilize the unit on uneven floors | |
| Mixed storage zoning | Open upper shelves for display, closed lower cabinets for concealed storage, right section for hanging items | |
| Tip-over protection | Pre-drilled points on frame for wall anchor installation to prevent forward tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential entryway | Provides mixed storage for books, accessories, and hanging outerwear in entry zones | |
|---|---|---|
| Home office | Stores books, office supplies, and work materials alongside wall-side desk setups |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
