PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2200 × 800 × 750 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	105 kg
Distributed tabletop load	80 kg
Pedestal top storage load	25 kg
Tea-tray local load	15 kg
Recommended seated users	6 users
Recommended tea set weight on kettle station	8 kg
Panel structural service class	Furniture-grade interior dry-use construction
Door and hardware operating cycles	50000 cycles
Adjustable floor glide load per support	60 kg
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop	Walnut-grain engineered wood board with sealed edge banding and a 50 mm slab profile
Left support	Grey painted or lacquered wood-composite panel with a curved inner cut-out and walnut insert
Right pedestal	Grey composite cabinet carcass with walnut-veneer or melamine front door and light edge trim
Integrated serving inserts	Black smooth heat-resistant panels recessed into the tabletop for tea tray and kettle placement
Edge protection	PVC, ABS or metal-look edge trim along the tabletop and pedestal front profiles
Base hardware	Steel or reinforced plastic adjustable glides with floor-protecting pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated tea preparation layout	The top combines a 900 mm recessed serving tray and a 550 mm kettle station for sequential brewing and serving
Right pedestal storage	The right support provides enclosed storage behind a front panel for tea utensils, cups and small supplies
Central seating space	The open 1250 mm wide central bay permits side seating without interference from a central leg
Floor levelling	Glide-style feet should provide 10 mm threaded levelling adjustment for uneven tea-room floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Managerial tea room	Suits executive reception and business tea service where a 2200 mm table can seat six users across one integrated preparation zone
Hospitality lounge	Fits hotel lounges, club rooms or quiet meeting areas requiring storage, kettle placement and a walnut-grain contemporary appearance

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Household furniture safety	EN 12521:2015 safety, strength and durability requirements for tables
Surface performance	EN 12720:2013 resistance to cold liquids for furniture surfaces
Wood-based panels	EN 312:2010 particleboard specification or EN 622:2003 fibreboard specification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture dimensional fit	GB/T 3324 general technical requirements for wooden furniture
Surface durability testing	GB/T 4893.1furniture surface film resistance to liquid contaminants
Formaldehyde control	GB 18580formaldehyde emission for interior decoration materials

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture dimensional fit: GB/T 3324 general technical requirements for wooden furniture;
2. Surface durability testing: GB/T 4893.1furniture surface film resistance to liquid contaminants;
3. Formaldehyde control: GB 18580formaldehyde emission for interior decoration materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TTP-2200-WAL-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TTP-2200-WAL-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TTP-2200-WAL-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

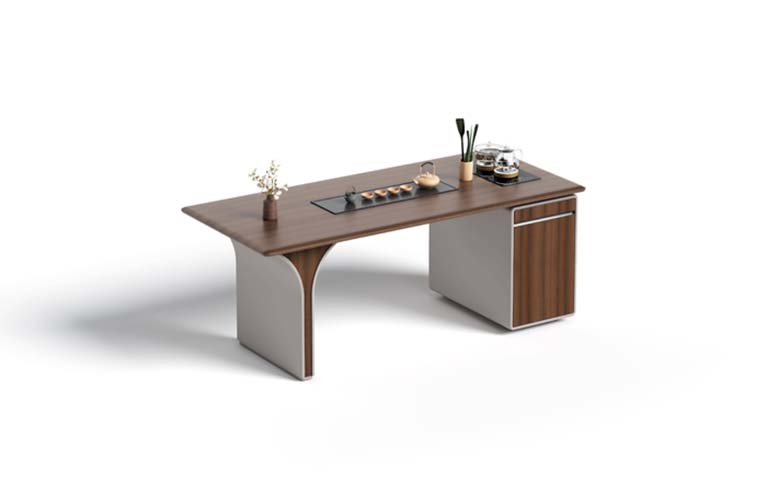

The Rectangular Tea Table with Integrated Tea Tray and Right Storage Pedestal, model TTP-2200-WAL-GRY, presents a contemporary walnut-grain surface paired with cool grey support elements. Its unbranded design is organized as a long rectangular tea table with an open left-side support and an enclosed right pedestal, creating a clear central seating bay while keeping tea preparation functions within the tabletop. The walnut-grain engineered wood top has sealed edge banding and a substantial 50 mm slab profile, contrasted by grey painted or lacquered wood-composite support panels. The left support includes a curved inner cut-out with a walnut insert, while the right pedestal uses a grey composite cabinet carcass, a walnut-veneer or melamine front door, and light edge trim. Black smooth heat-resistant panels are recessed into the top for the integrated tea tray and kettle placement. Tabletop and pedestal front profiles are protected with PVC, ABS, or metal-look edge trim, and steel or reinforced plastic adjustable glides with floor-protecting pads complete the base. Overall dimensions are 2200 x 800 x 750 mm, with primary component thickness of 40 mm according to load-bearing role and 5 mm operating clearance for hardware or moving parts. The tea preparation layout combines a 900 mm recessed serving tray with a 550 mm kettle station, supporting sequential brewing and serving without separate surface modules. The right pedestal provides enclosed storage behind its front panel for tea utensils, cups, and small supplies. A 1250 mm wide central bay allows side seating without obstruction from a central leg, and the table is intended for six seated users. The glide-style feet are designed to provide 10 mm threaded levelling adjustment on uneven tea-room floors. Rated capacities include an 80 kg distributed tabletop load, 25 kg pedestal top storage load, 15 kg tea-tray local load, and an 8 kg recommended tea set weight on the kettle station. The product is furniture-grade interior dry-use construction, with a net weight of 105 kg. It is well suited to managerial tea rooms, executive reception areas, business tea service spaces, hotel lounges, club rooms, and quiet meeting areas that require integrated preparation, concealed storage, and a refined walnut-grain appearance. Procurement planning should account for delivery as one set in two cartons, 0.8 cubic meters of packaging volume per set, 120 kg packaged gross weight, and a reference assembly time of 40 minutes per set.

Rectangular Tea Table with Integrated Tea Tray and Right Storage Pedestal Specifications
