Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 900 × 750 mm | |
|---|---|---|
| Overall footprint | 2400 x 900 x 750 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop distributed static load | 120 kg | |
|---|---|---|
| Local vertical load at tea insert | 30 kg | |
| Net weight | 145 kg | |
| Recommended chair seat height | 450 mm | |
| Recommended users | 6 users | |
| Top surface impact rating | 30 N drop-object acceptance | |
| Top surface water absorption | 0.1 percent | |
| Base stability overturning moment | 180 N lateral force | |
| Warranty period | 5 years | |
| Seating capacity | 6 persons |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.

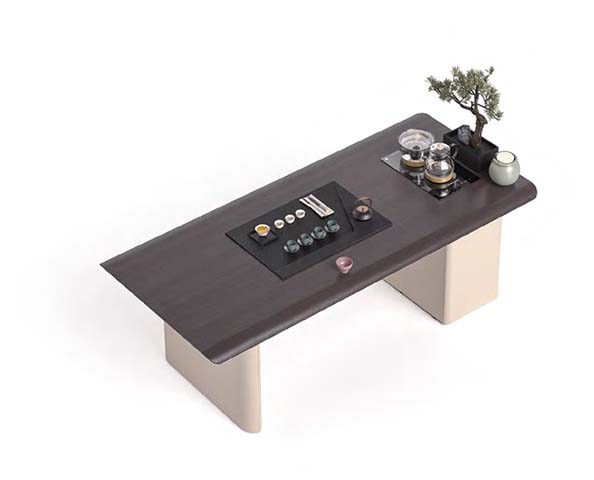

| Tabletop | Dark polished stone or sintered-stone slab, 30 mm thick with rounded edge | |
|---|---|---|
| Central service insert | Black recessed tray panel with machined cup and utensil zones | |
| Beverage station insert | Black heat-resistant inset panel supporting two glass electric kettles | |
| Pedestal bases | Beige painted wood-composite or MDF slab panels with smooth matte finish | |
| Internal support frame | Welded steel frame with 40 x 40 x 2 mm rails | |
| Floor glides | 20 mm height-adjustable nylon or stainless-steel leveling glides, four per base |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated tea arrangement | Recessed central tray organizes six cups, a teapot, a tasting cup and utensils within a 700 x 320 mm service zone. | |
|---|---|---|
| Hot-water station | Rear inset platform accommodates two glass kettle appliances and leaves a separate planter display area; concealed power should use a 10 A circuit. | |
| Cable and drainage planning | A rear cable grommet and removable service cover provide access for kettle power cords; no drain connection is visible, so manual wastewater disposal is assumed. | |
| Seating and support layout | Two open-side pedestal bases provide a 1500 mm central knee opening and support six users without obstructing leg room. |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive tea room | Suitable for a six-person management meeting or formal tea ceremony, with separate brewing and presentation zones. | |
|---|---|---|
| Hospitality lounge | Fits a hotel VIP lounge or reception area where hot beverage service and decorative display occur on one table. |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
