PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2500 × 1000 × 750 mm
Overall set footprint	3100 x 2200 x 900 mm
Dining seat height	480 mm
Chair arm height from floor	640 mm
Knee clearance under table apron	680 mm
Table top overhang per side	50 mm
Table cross stretcher height	150 mm
Chair seat width	500 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set packaged gross weight	120 kg
Per-chair static load capacity	159 kg
Seating capacity	8 adults
Wicker UV resistance rating	3000 hours
Frame rust protection lifespan	3 years
Cushion foam density	35 kg/m³
Cushion thickness	50 mm
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Table and chair frame	2.0mm thick powder-coated rust-resistant aluminum tubing
Woven exterior	Brown all-weather PE resin wicker, handwoven over frame
Table top surface	Dark flat weatherproof composite hard surface
Seat cushion core	High-density quick-dry polyurethane foam
Cushion covers	210D waterproof polyester fabric with zippered closure
Chair foot caps	Silver chrome-finish plastic non-marking caps
Table base bracing	Cross-stretcher metal support between dual wicker-clad pedestals
Hardware fittings	Stainless steel rust-resistant assembly bolts and screws
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dining seating configuration	8 symmetrically placed armchairs around rectangular table
Assembly requirement	Knock-down assembly with included hardware and instructions
Chair stackability for storage	Chairs nest vertically for off-season storage
Leveling adjustment	Rotatable foot caps to adjust for uneven outdoor patio surfaces
Cushion maintenance	Zippered removable cushion covers for machine washing
Weather resistance	Waterproof, UV-stabilized, rust-proof construction for full outdoor exposure
Table center umbrella compatibility	50mm diameter center umbrella hole with cap
Surface cleanability	Wipe-clean table top and wicker surface with mild detergent
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio installation	Suitable for backyard, garden, waterfront or poolside dining areas
Hospitality outdoor dining	Suitable for restaurant, cafe or hotel terrace seating for 8 guests
Leisure dining use case	Designed for family meals, outdoor parties and casual gathering events
Climate suitability	Works in coastal, high-humidity and high-sun exposure environments
Recommended complementary accessories	Pairs with 2.7m patio umbrella, outdoor dining tableware and weatherproof furniture covers
Surface requirement	Suitable for flat paved, stone, concrete or wood deck outdoor surfaces
Storage recommendation	Chairs stack for compact off-season storage in sheds or covered areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 581-1:2017	Outdoor furniture, seating and tables for domestic use, general safety requirements
EN 581-2:2019	Outdoor furniture, mechanical safety requirements for dining seating
EN 581-3:2019	Outdoor furniture, mechanical safety requirements for dining tables

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden and rattan outdoor furniture, applicable for structural safety
GB 18584-2001	Indoor decoration materials, limit of harmful substances in wooden furniture, applies to low-VOC materials
GB/T 16422.3-2014	Plastics laboratory light source exposure test method, applicable for PE wicker UV resistance validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden and rattan outdoor furniture, applicable for structural safety;
2. GB 18584-2001: Indoor decoration materials, limit of harmful substances in wooden furniture, applies to low-VOC materials;
3. GB/T 16422.3-2014: Plastics laboratory light source exposure test method, applicable for PE wicker UV resistance validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ODS-WR-8SEAT-2500

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ODS-WR-8SEAT-2500

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ODS-WR-8SEAT-2500Open Export Tool

Quick Actions

Post an RFQ

Product Description

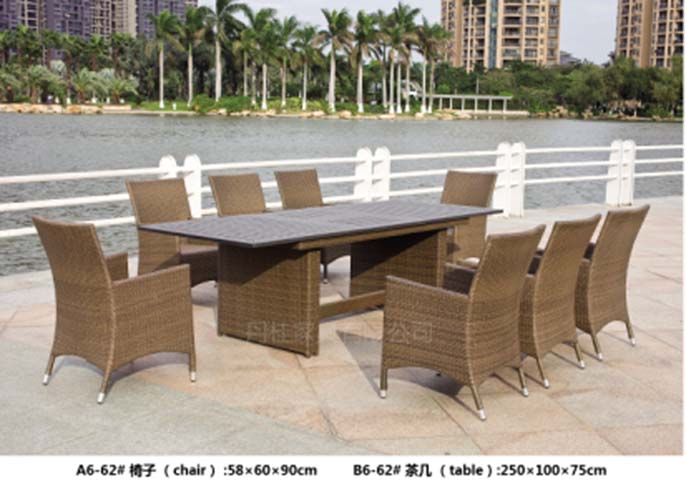

This 9-Piece 8-Seat Brown All-Weather Wicker Rectangular Outdoor Patio Dining Set delivers a cohesive, purpose-built outdoor dining solution for both residential and hospitality settings. The set features a streamlined rectangular dining table surrounded by eight symmetrically arranged armchairs, with a warm brown handwoven wicker exterior that creates a classic, inviting visual profile suited to open-air environments. Each chair measures 580 x 600 x 900 mm with a 480 mm dining seat height and 640 mm arm height, positioned to offer 680 mm of knee clearance under the table apron, while the 2500 x 1000 x 750 mm table includes a 50 mm overhang on all sides and a dual pedestal base connected by a low cross stretcher for balanced visual weight and stable placement. The full set occupies a 3100 x 2200 x 900 mm footprint when fully assembled. Construction prioritizes long-term outdoor durability: frames for both table and chairs are built from 2.0mm thick powder-coated rust-resistant aluminum tubing, wrapped in brown all-weather PE resin wicker rated for 3000 hours of UV resistance, with a 3-year rust protection lifespan for the underlying frame. The table features a dark, flat weatherproof composite hard surface, while each chair is fitted with 50 mm thick seat cushions cored with 35 kg/m³ high-density quick-dry polyurethane foam, upholstered in zippered 210D waterproof polyester covers. Silver chrome-finish non-marking plastic foot caps protect underlying surfaces, and all assembly hardware is rust-resistant stainless steel, sized from M6 to M10 with a minimum of two fixing points at every major joint. Functional design supports regular, flexible use: the rotatable foot caps adjust to level the set on uneven patio surfaces, chairs nest vertically for compact off-season storage, and removable cushion covers are machine washable for easy upkeep. A 50mm diameter center umbrella hole with a matching cap accommodates a 2.7m patio umbrella for shaded seating, and the fully waterproof, UV-stabilized, rust-proof construction supports full outdoor exposure. Each chair supports a 159 kg static load, with comfortable seating for eight adults. The set is well suited for residential backyards, gardens, waterfront or poolside dining areas, as well as hospitality spaces including restaurant, cafe and hotel terraces. It performs reliably in coastal, high-humidity and high-sun environments, and is designed for placement on flat paved, stone, concrete or wood deck surfaces. The set ships knock-down in two cartons with included hardware and instructions, requiring 40 minutes of assembly time, with a total packaged gross weight of 120 kg and 0.8 m³ packaging volume. Procurement teams and residential buyers should note that complementary accessories including weatherproof furniture covers and outdoor dining tableware are recommended to extend service life and support regular use, and the unbranded model ODS-WR-8SEAT-2500 is sold as a complete set with no separate component pieces available as part of the core SKU.

9-Piece 8-Seat Brown All-Weather Wicker Rectangular Outdoor Patio Dining Set Specifications
