1775-X08

Code：0GAAF4V1
Request supplier quotes

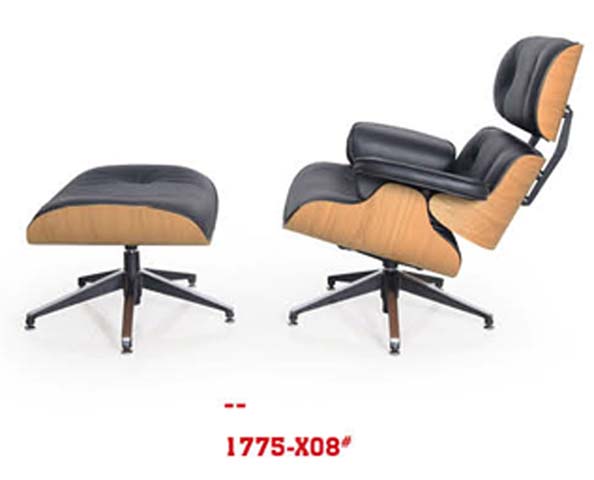

Eames-style Molded Plywood Lounge Chair with Matching Ottoman, Two-tone Upholstery Key Specifications 2026-08-05 17:15

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

1775-X08

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierEames-style Molded Plywood Lounge Chair with Matching Ottoman, Two-tone Upholstery，Multi-layer plywood
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall chair dimensions840 x 900 x 1050 mm
Ottoman overall dimensions630 x 530 x 430 mm
Seat height400 mm
Seat width560 mm
Seat depth540 mm
Backrest height650 mm
Armrest height above seat180 mm
Ottoman seat height400 mm
Cushion thickness (seat)100 mm
Cushion thickness (back/headrest)80 mm
Seat width between armrests560 mm
Seat cushion depth540 mm
Backrest total height from seat650 mm
Armrest height above seat surface180 mm
Seat cushion thickness100 mm
Back and headrest cushion thickness80 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total set net weight33 kg
Static load capacity (chair)160 kg
Recommended user weight120 kg
Upholstery abrasion resistance50000 cycles
Seat cushion density45 kg/m³
Back cushion density38 kg/m³
Foam rebound rate60%
Swivel rotation range360 degrees
Warranty period3 years
Recommended maximum user weight120 kg
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer shell panelsMolded bent plywood with light walnut veneer finish
Upholstery (black sections)Top-grain leather or high-grade PU faux leather
Upholstery (tan side sections)Matching tan leather/PU upholstery on inner shell edges
Inner cushion coreHigh-resilience polyurethane foam with Dacron wrap
Swivel frames (chair and ottoman)Powder-coated matte black steel four-star base
Central support stemWalnut-veneer wrapped steel column
Swivel bearingZinc-plated steel thrust bearing
Floor glidesHard nylon non-marking glides
Frame internal structureDie-cast aluminum connection brackets between shell segments
Black upholstery sectionsTop-grain leather or high-grade PU faux leather, 1.2mm thickness
Tan side upholstery trimMatching tan leather/PU upholstery on inner shell edges, stitched to black cushion panels
Chair and ottoman swivel basesPowder-coated matte black steel four-star base, 2.5mm wall thickness
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

360-degree swivel (chair)Full rotation on central thrust bearing, no tilt lock, fixed recline angle of 118 degrees from horizontal
360-degree swivel (ottoman)Independent full rotation on matching central bearing, allowing flexible leg positioning relative to chair
Padded armrest supportIntegrated padded armrests fixed to seat shell, positioned to support forearms at 180mm above seat surface
Integrated headrest supportContoured fixed headrest aligned to support the cervical spine in semi-reclined position, no height or angle adjustment
Matching ottoman leg restCoordinated height ottoman to support fully extended legs, reducing lower back pressure when used with the chair
No height adjustmentFixed seat height, no gas lift height adjustment, stationary lounge posture designed for living room, study or lounge area use
Stitch constructionDouble-stitched seams at upholstery panel joints, 8mm stitch pitch for seam durability
Floor protectionNon-marking nylon glides fitted to all base leg ends to prevent scratching hard wood, tile or laminate flooring
Swivel base diameter (chair)700 mm
Swivel base diameter (ottoman)600 mm
Chair 360-degree swivelFull unobstructed rotation on central thrust bearing, fixed recline angle of 118 degrees from horizontal, no active tilt mechanism or tilt lock
Ottoman 360-degree independent swivelFull unobstructed rotation on matching central thrust bearing, no mechanical connection to the chair base
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Chair carton dimensions870 x 720 x 820 mm
Ottoman carton dimensions660 x 560 x 460 mm
Total gross weight per set40 kg
Total CBM per set0.69
Assembly time30 minutes
20ft container loading quantity38 sets
40ft HQ container loading quantity93 sets
Packaging materials5-layer corrugated carton, EPE foam wrap, hard corner protectors, plastic bag for hardware kit
Chair export carton dimensions870 x 720 x 820 mm
Ottoman export carton dimensions660 x 560 x 460 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Residential living room usePlaced in living rooms or reading nooks for relaxed reading, media viewing or casual lounging, paired with the matching ottoman for full leg support
Executive office lounge useInstalled in executive office waiting areas or private office relaxation zones for guest or executive use, matching mid-century modern office decor
Hospitality lounge applicationUsed in hotel lobbies, boutique guest room seating areas or premium lounge spaces for guest comfort, with durable upholstery suited for regular commercial use
Home study/den placementPositioned in home studies or libraries as a dedicated reading and relaxation seat, with compact footprint fitting small to medium sized rooms
Recommended placement clearanceMinimum 800mm clearance behind chair to allow full swivel and access, 400mm front clearance to extend ottoman fully
Color option availabilityAvailable in 3 standard upholstery color combinations: all black, black/tan (as shown), walnut shell/white upholstery; custom upholstery colors available for bulk orders
Residential living room placementPositioned in living rooms, reading nooks or media rooms for relaxed reading, television viewing or casual lounging, paired with the matching ottoman for full leg support
Executive office lounge installationInstalled in executive office waiting areas, private office relaxation zones or boardroom breakout spaces for guest or executive use
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 12520:2015Furniture - Strength, durability and safety for domestic seating, applicable to static load and durability testing for residential use
EN 1022:2018Furniture - Seating - Determination of stability, applicable to tip resistance testing for chair and ottoman on level surfaces
EN 14465:2005Furniture - Upholstery fabrics - Specification for coated fabrics for furniture, applicable to leather/PU upholstery performance testing for heavy use
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable to molded plywood shell structural integrity and finish quality inspection
GB 28007-2011Safety requirements for upholstered furniture, applicable to upholstery flame retardance and structural safety for domestic use
GB/T 16799-2008Specification for polyurethane leather for furniture, applicable to upholstery material performance testing if PU upholstery is specified
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to molded plywood shell structural integrity and finish quality inspection;
2. GB 28007-2011: Safety requirements for upholstered furniture, applicable to upholstery flame retardance and structural safety for domestic use;
3. GB/T 16799-2008: Specification for polyurethane leather for furniture, applicable to upholstery material performance testing if PU upholstery is specified;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1775-X08

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1775-X08

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1775-X08Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The Yiankang model 1775-X08 is an Eames-style molded plywood lounge chair paired with a coordinated matching ottoman, featuring a distinct two-tone upholstery design aligned with iconic mid-century modern silhouette language. The set displays curved, contoured molded plywood shell panels finished with light walnut veneer, contrasted by two-tone upholstery: black padded sections cover the front of the seat, back, headrest, and integrated armrests, while complementary tan trim lines the inner curved edges of the wood shell, joined with neat double-stitched seams for a streamlined, cohesive visual profile. Both the chair and ottoman sit on matte black powder-coated steel four-star swivel bases, with a walnut-veneer wrapped central support stem accented by a subtle chrome ring for visual warmth. Constructed from multi-layer bent plywood for the outer shells, the seating uses die-cast aluminum internal brackets to connect shell segments for stable, wobble-free use. Upholstery options include top-grain leather or high-grade PU faux leather, over high-resilience polyurethane foam cores wrapped in Dacron to prevent fabric wrinkling; seat cushions use firmer high-density foam for consistent support, while back and headrest cushions use a slightly softer density to cradle lumbar and cervical contours. The steel bases mount on zinc-plated thrust bearings to enable full 360-degree rotation for both pieces, fitted with non-marking hard nylon glides to protect hard flooring surfaces, with felt glides available as a substitution for more sensitive floor finishes. The chair holds a fixed 118-degree recline angle optimized for relaxed semi-reclined posture, with no tilt or height adjustment mechanisms, and the ottoman matches the chair’s seat height to support fully extended legs and reduce lower back strn during long periods of lounging. The set suits a range of both residential and light commercial spaces: it works well in residential living rooms, home studies, reading nooks and media rooms for casual relaxation, reading or screen viewing; it also fits seamlessly in executive office waiting areas, private office relaxation zones and boardroom breakout spaces, as well as boutique hotel lobbies, premium guest room seating areas and other light-traffic hospitality lounge settings, where its wood and upholstery finish complements premium interior design palettes. For procurement, buyers should note that material samples should be requested to confirm exact upholstery grade and veneer specifications prior to bulk order, as standard listings offer multiple upholstery color options with custom colors available for large volume purchases. The set ships in separate cartons for the chair and ottoman, with straightforward assembly requiring only attachment of each base to its corresponding upper section using included hardware, and a three-year structural warranty covers the frame for standard use. When planning installation, teams should allocate sufficient clearance behind the chair to allow unobstructed swivel movement, plus space in front to extend the ottoman fully for comfortable leg support.
