Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 680 x 720 x 1180 mm | |
|---|---|---|
| Seat width | 520 mm | |
| Seat depth | 500 mm | |
| Seat height range | 520 mm | |
| Backrest height | 720 mm | |
| Backrest width | 500 mm | |
| Armrest height above seat | 210 mm | |
| 5-star base diameter | 700 mm | |
| Caster diameter | 50 mm | |
| Seat cushion thickness | 100 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight | 22 kg | |
|---|---|---|
| Seat foam density | 45 kg/m³ | |
| Backrest foam density | 35 kg/m³ | |
| Seat foam rebound rate | 45% | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Swivel rotation | 360 degrees | |
| Tilt lock angle range | 15degrees | |
| Gas lift stroke length | 100 mm | |
| Seam stitch pitch | 8 stitches per inch | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery material | Beige PU faux leather, 1.0mm thickness | |
|---|---|---|
| Seat cushion core | High-density molded polyurethane foam, 100mm thickness | |
| Backrest core | Contoured molded polyurethane foam, 80mm thickness | |
| Internal seat frame | 1.5mm thick cold-rolled steel, welded joint construction | |
| Armrest structure | Padded PU surface over polypropylene inner core, curved profile | |
| Five-star base | 1.2mm thick polished chrome-plated steel, ribbed structural reinforcement | |
| Gas lift cylinder | Class 3 chrome-plated steel, 50mm outer diameter | |
| Tilt mechanism | 2.5mm thick stamped steel plate, multi-position tilt lock with tension adjustment | |
| Casters | Dual-wheel polyurethane casters with black nylon hub, 50mm diameter | |
| Control levers | Black powder-coated steel levers, lever-operated height and tilt adjustment | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | Pneumatic height adjustment via right-hand lever, 100mm vertical travel, locks at any selected height | |
|---|---|---|
| Backrest tilt function | Synchro tilt mechanism, reclines 15 degrees from upright position, lockable in fully upright position | |
| 360-degree swivel rotation | Full rotation around central axis enabled by precision swivel joint, no rotational stop | |
| Mobility function | Dual-wheel casters roll freely on hard floors and low-pile carpet, 360-degree caster steering | |
| Fixed padded armrests | Curved upholstered armrests provide forearm support during typing and seated tasks, 210mm height above seat | |
| High-back ergonomic support | Segmented padded backrest provides lumbar, upper back and shoulder support, built-in headrest zone at top of back | |
| Weight-activated tilt tension | Automatic tension adjustment modifies recline resistance based on user weight, manual fine-tuning available via front knob | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Shipping carton dimensions | 850 x 650 x 580 mm | |
|---|---|---|
| Gross shipping weight | 26 kg | |
| Shipping volume per unit | 0.32 CBM | |
| Assembly time | 30 minutes | |
| 20ft container loading quantity | 88 units | |
| 40ft HQ container loading quantity | 216 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set |
Recommended spaces / users / usage modes
| Executive private office | Suitable for manager and C-suite workspaces, professional beige upholstery matches formal executive desk and wood office casegoods | |
|---|---|---|
| Open plan managerial workstation | Appropriate for senior staff workstations in open office layouts, quiet casters prevent rolling noise in shared spaces | |
| Conference and meeting room seating | Can be deployed in formal boardrooms and meeting spaces, neutral beige finish coordinates with most conference table finishes | |
| Home office executive setup | Suitable for premium home workspaces, chrome base and tailored upholstery complements residential office decor | |
| Reception and guest executive areas | Appropriate for formal reception seating for high-priority visitors, polished chrome base presents a premium first impression | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
European market access and chemical requirements
| EN 1335-1:2020 | Office furniture - Office work chairs - Part 1: Dimensions - applies for minimum seat dimensions, backrest size and clearance requirements for commercial office use | |
|---|---|---|
| EN 1335-2:2018 | Office furniture - Office work chairs - Part 2: Safety requirements - applies for structural stability, strength and durability performance thresholds | |
| EN 1335-3:2009 | Office furniture - Office work chairs - Part 3: Test methods - applies for standardized validation of chair strength and stability during procurement inspection |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office Chairs - applies for static load, cyclic durability, stability and safety performance requirements for general office executive chairs, minimum recommended rating for commercial deployment | |
|---|---|---|
| Maximum user weight capacity | 150 kg |
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

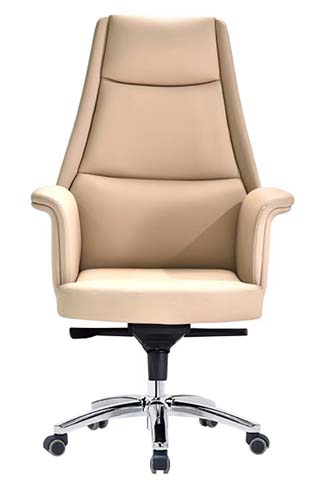

Open Export ToolHigh-Back Upholstered Executive Office Chair, Multiple layers.
