1778-X08

1 active supplier(s) >>
Product supplierPlywood Shell Upholstered Lounge Chair with Matching Ottoman,Multi-layer plywood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall chair dimensions840 x 890 x 890 mm
Seat height from floor380 mm
Seat width560 mm
Seat depth530 mm
Backrest height560 mm
Ottoman overall dimensions630 x 530 x 420 mm
Ottoman top height from floor420 mm
Four-star base span700 mm
Armrest height from seat surface150 mm
Plywood shell thickness18 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Chair total net weight28 kg
Chair static seat load capacity150 kg
Recommended user body height1900 mm
Swivel rotation durability30000 cycles
Seat cushion indentation load deflection40 kg/m³
Maximum suitable user body height1900 mm
Seat cushion foam density40 kg/m³
Back cushion foam density35 kg/m³
Upholstery abrasion resistance50000 Martindale cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer shellWalnut veneer laminated bent plywood
Seat and back cushionsDark grey PU leather upholstery over high-resilience polyurethane foam
Cushion padding thickness80 mm
Chair base frame2.5mm thick black powder-coated steel four-star frame
Ottoman base frame2.0mm thick black powder-coated steel four-star frame
Side support brackets12mm diameter black powder-coated steel brackets
Base floor glidesNylon non-marking glide pads
Upholstery seam pitch30 mm
Outer structural shellWalnut veneer laminated bent plywood
Seat and back cushion paddingHigh-resilience polyurethane foam core
Seat and back upholsteryDark grey top-grain leather match over foam
Shell support brackets12mm diameter black powder-coated steel brackets
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Chair swivel function360-degree horizontal rotation around central axis
Fixed reclined backrest angle115 degrees from horizontal
Ottoman leg rest functionFreestanding padded foot support placed in front of chair for full leg elevation
No height adjustment functionFixed seat height without gas lift
Cushion attachmentSecured with hidden fasteners to plywood shell
Non-tilting base designFixed static base without rocking or tilt mechanism
Fixed seat height380 mm fixed seat height without height adjustment
Cushion retentionHidden steel fasteners secure cushions to plywood shell
Non-rocking base designFixed static base without rocking or tilt mechanism
Non-marking floor protectionIntegrated nylon glides on all base leg ends
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons2
Chair shipping carton dimensions880 x 930 x 700 mm
Ottoman shipping carton dimensions670 x 570 x 460 mm
Total shipping gross weight47 kg
Total shipment volume0.75 CBM
Assembly time requirement20 minutes
20ft GP container loading quantity72 sets
40ft HQ container loading quantity178 sets
On-site assembly time20 minutes
Reference Package Count1 set / 2 cartons
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Residential living room placementIdeal for living room lounge areas, providing premium relaxed seating for reading, media viewing or leisure
Executive office lounge useSuitable for private office reception or break areas, providing comfortable guest seating for informal meetings
Hotel suite and lobby applicationAppropriate for boutique hotel guest rooms and premium lobby lounge zones, matching high-end contemporary interior design
Studio and creative workspace useSuitable for design studios or creative offices as informal seating for breaks or casual collaboration
Matching ottoman use caseOttoman allows full leg elevation to reduce lower back pressure during extended seating
Residential home study placementSuitable for home study or reading nooks, providing dedicated relaxed seating for extended reading or screen viewing
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 12520:2015Furniture - Strength, durability and safety for domestic seating, applicable for structural performance validation
EN 1022:2018Furniture - Seating - Determination of stability, applicable to swivel chair and ottoman stability testing
EN 13722:2004Furniture - Upholstered furniture - Test methods for foam durability, applicable to seat cushion performance validation
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable to plywood shell structural inspection
GB 18584-2001Limit of harmful substances in wood furniture, mandatory requirement for formaldehyde emission from plywood components
GB/T 16799-2008Technical specification for furniture used leather, applicable if PU or genuine leather upholstery is specified
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to plywood shell structural inspection;
2. GB 18584-2001: Limit of harmful substances in wood furniture, mandatory requirement for formaldehyde emission from plywood components;
3. GB/T 16799-2008: Technical specification for furniture used leather, applicable if PU or genuine leather upholstery is specified;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1778-X08

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1778-X08

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1778-X08Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

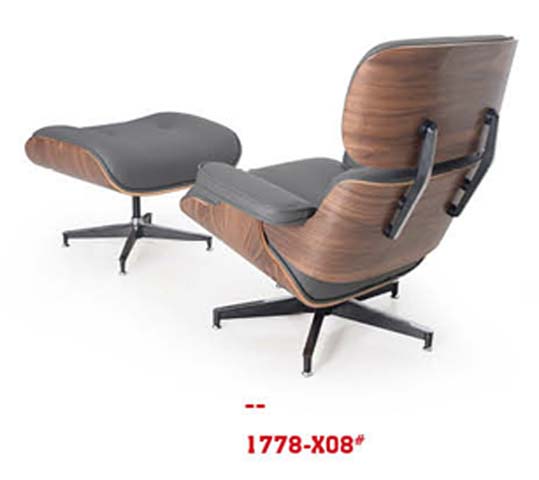

This unbranded lounge chair and matching ottoman set, model 1778-X08, features a refined mid-century modern silhouette defined by a smoothly curved bent plywood shell finished with visible walnut veneer grain, paired with dark grey upholstered cushions and a sleek four-star black powder-coated metal base. The freestanding ottoman shares the chair’s base finish and upholstery palette for a fully coordinated visual profile, creating a cohesive, streamlined look that balances warm wood texture with soft padded surfaces and matte black structural elements. The 18mm thick bent plywood shell forms the rigid, molded core of the chair, connected to its 700mm span four-star steel base via 12mm diameter powder-coated steel support brackets for consistent structural rigidity. The chair’s seat and back cushions are constructed with high-resilience polyurethane foam, using 40kg/m³ density foam for the seat to resist premature sagging and 35kg/m³ density foam for the back to deliver medium-firm lumbar support, all wrapped in smooth dark grey upholstery with precision 30mm seam pitch and matching edge piping. Cushions are secured to the shell with hidden steel fasteners to prevent shifting during use, while nylon non-marking glides fitted to the end of each base leg protect hard floor surfaces from scuffs and scratches. The ottoman uses a matching black powder-coated steel four-star base with identical floor protection glides. Functionally, the chair delivers 360-degree horizontal swivel rotation around its central axis, with a fixed 115-degree reclined backrest angle molded directly into the plywood shell for a relaxed, supported seating posture; no height adjustment, tilt, or rocking mechanisms are included to preserve the piece’s classic, clean-lined profile. The fixed 380mm seat height aligns with the ottoman’s 420mm top surface height, allowing full leg elevation to reduce lower back strain during extended sitting, with dimensions suited to support users up to 1900mm tall and a static seat load capacity of 150kg. The upholstery carries a 50000 Martindale abrasion resistance rating, and the swivel mechanism is rated for 30000 rotation cycles for reliable long-term use. This set is versatile across both residential and light commercial spaces. In home settings, it fits seamlessly into living room lounge zones, reading nooks, and home studies for reading, media viewing, or quiet leisure, with its low-profile form avoiding obstruction of interior sightlines. For commercial applications, it works well in private executive office reception or break areas for informal guest meetings, boutique hotel suite and premium lobby lounge zones, and creative studio workspaces for casual breaks or collaborative conversations, aligning with contemporary and mid-century modern interior design schemes. For procurement, buyers should note the chair supports a recommended maximum daily use duration of 8 hours, pending independent ergonomic confirmation. The set ships in two separate cartons, with a 20-minute on-site assembly time required to attach bases to the seating and ottoman frames using included hardware; final veneer species, upholstery grade, steel gauge, and coating specifications require direct confirmation from the supplier, as listed dimensional and weight values are engineering estimates aligned with category standards rather than factory-measured data. The upholstery’s abrasion rating makes the set suitable for low-traffic commercial environments, rather than high-footfall public spaces.
