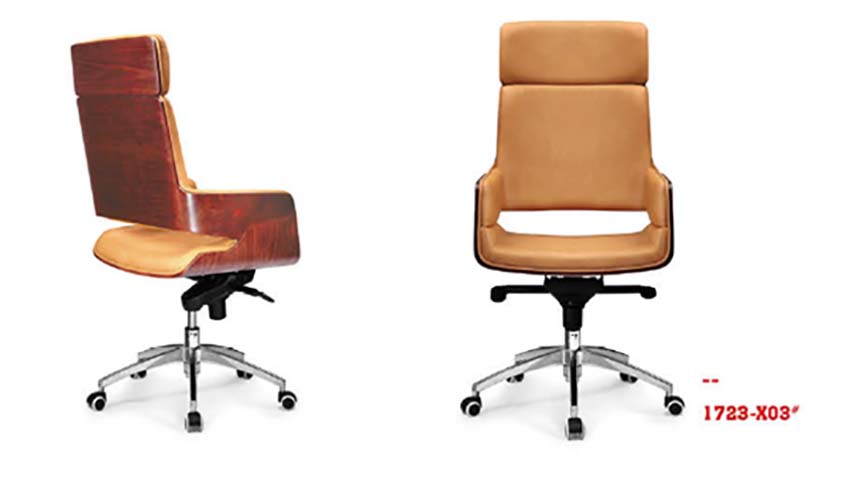

Mid-Back Executive Office Chair with Bentwood Back and Faux Leather Upholstery - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions	660 x 680 x 1080 mm
Seat width	520 mm
Seat depth	480 mm
Adjustable seat height range	520 mm
Backrest height	620 mm
Backrest width	500 mm
Five-star base diameter	700 mm
Armrest height above seat	220 mm
Caster diameter	60 mm
Seat cushion thickness	80 mm
Lumbar cutout width	380 mm
Chrome base leg thickness	2 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight	22 kg
Maximum static user load	150 kg
Gas lift vertical travel	100 mm
Backrest recline angle range	115degrees
Caster rolling durability	40000 cycles
Seat foam density	45 kg/m³
Seam stitch pitch	8 stitches per inch
Warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer back shell	12 mm thick bent plywood with high-gloss rosewood veneer finish
Seat upholstery	1.2 mm thick PU leather over high resilience foam
Backrest padding	50 mm thick high resilience polyurethane foam
Five-star base	Polished chrome-plated 1.5 mm wall thickness steel tubing
Tilt mechanism	3 mm thick stamped black powder-coated steel
Pneumatic gas lift	Class 3 chrome-plated steel gas lift, 50 mm outer diameter
Armrests	Integral bentwood shell with matching PU leather padded top surface
Casters	60 mm diameter twin-wheel black nylon casters with black rubber rolling surface
Control levers	Reinforced black nylon levers for height adjustment and tilt lock
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Five-star Base Material Thickness	Metal base wall 3.5 mm; diameter 700 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

360-degree swivel rotation	Full rotation enabled by central gas lift and base bearing, allows free reorientation without moving the chair base
Pneumatic seat height adjustment	Side-operated lever controls gas lift to set seat height between 420 and 520 mm, aligns to 760 mm standard office desk heights
Recline tilt with tension adjustment	Under-seat knob adjusts recline resistance for user weight, back tilts up to 20 degrees from upright position with lockable upright position
Fixed integrated armrest support	Curved fixed armrests provide forearm support during typing and meetings, no independent height or width adjustment
Smooth rolling mobility	Twin-wheel casters roll freely on hard flooring and low-pile carpet without catching or marking floor surfaces
Lumbar ventilation cutout	Horizontal open gap between seat and upper back reduces heat buildup during long periods of seated work
Contoured seat cushion	Waterfall front seat edge reduces pressure on back of knees and improves lower leg circulation during extended sitting
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons	1 carton
Shipping carton dimensions	720 x 640 x 580 mm
Gross shipping weight	26 kg
Carton CBM volume	0.27 CBM
assembly time	25 minutes
20ft container loading quantity	220 units
40ft HQ container loading quantity	540 units
Packaging protection	5 mm thick expanded polystyrene corner protection with 0.1 mm polyethylene bag to prevent scratch damage during transit; procurement engineering, not supplier-measured data
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private office use	Premium bentwood and leather appearance suits senior manager private offices, provides professional aesthetic and all-day comfort
Conference and meeting room installation	Mid-back design supports meeting durations of 3 hours without blocking sightlines across conference tables
Home office workstation	Polished wood finish complements residential and home office decor, with full office chair adjustability for remote work use
Boardroom visitor seating	Formal appearance is suitable for boardroom visitor and meeting guest seating, matches high-end wooden office furniture collections
Hard floor and low-pile carpet environments	Soft surface caster material prevents floor scratching on wood, tile, and low-pile carpet without needing separate chair mats
Recommended matching furniture	Pairs with 760 mm height executive desks, conference tables and wooden office storage units with matching rosewood veneer finishes
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020	Applies to office chair dimensional safety and performance requirements for commercial work seating
EN 1335-2:2018	Applies to structural stability, strength and durability testing for office work chairs
EN 1335-3:2009	Applies to test methods for verifying office chair structural performance

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general purpose office chair strength, durability and stability requirements for commercial installation
Base static load rating	1136 kg

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to dimensional measurement and tolerance requirements for office seating, used for incoming dimension inspection
GB/T 24821-2009	Applies to office chair general technical requirements for structural stability and safety
GB 18580-2017	Applies to formaldehyde emission limits for plywood components, required E1 grade or better for indoor use

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to dimensional measurement and tolerance requirements for office seating, used for incoming dimension inspection;
2. GB/T 24821-2009: Applies to office chair general technical requirements for structural stability and safety;
3. GB 18580-2017: Applies to formaldehyde emission limits for plywood components, required E1 grade or better for indoor use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1723-X03

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1723-X03

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1723-X03Open Export Tool
