1716B-X08

Code：64K5XTV1
Request supplier quotes

Armless Swivel Height-Adjustable Office Task Chair Key Specifications 2026-08-05 17:15

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

1716B-X08

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions580 x 580 x 920 mm
Seat width480 mm
Seat depth440 mm
Seat height adjustment range520 mm
Backrest height470 mm
Backrest width450 mm
5-star base diameter600 mm
Caster diameter50 mm
Gas lift outer column diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight12 kg
Maximum static user load120 kg
Seat upholstery abrasion resistance50000 cycles
Caster rolling durability40000 cycles
Gas lift durability cycles100000 cycles
Recommended user weight limit110 kg
Color options available2
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer seat/back shell1.8mm thick light blue molded polypropylene with matte finish
Seat cushion padding50mm thick high-resilience polyurethane foam, density 45kg/m³
Backrest padding30mm thick molded polyurethane foam, density 40kg/m³
Seat/back upholstery1.2mm thick black polyurethane (PU) leather with fine grain finish
Seat supporting inner frame1.5mm thick powder-coated steel plate
Height adjustment gas liftChrome-plated Class 3 steel gas lift, 100mm stroke
5-star basePolished die-cast aluminum, 2.5mm wall thickness
Swivel/tilt mechanism2.5mm thick powder-coated steel plate, 12-degree backward tilt
CastersBlack nylon twin-wheel casters with metal mounting stems
Height adjustment leverBlack nylon paddle lever
Seam stitch pitch8 stitches per 30mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic 100mm vertical adjustment via side lever, locks at any height within 520 mm seat height range
360-degree swivel rotationFull 360-degree horizontal rotation of seat and back relative to base, no rotational lock
Backward tilt function12-degree synchronized backward tilt of seat and back, free-float tension adjustable via knob under seat
Mobility functionSmooth rolling on all 5 twin-wheel casters, suitable for hard wood, tile and low-pile carpet floors
Armless designNo armrests attached, allows tucking fully under standard 750mm high desks to save space
Fixed upholstered padsSeat and back pads are permanently fixed to the outer shell, no removable cushion covers
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1
Shipping carton dimensions650 x 500 x 480 mm
Gross shipping weight14 kg
Shipping volume per unit0.156 CBM
Assembly time per unit15 minutes
20ft GP container loading quantity210 units
40ft HQ container loading quantity520 units
Standard product warranty3 years
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Open plan office workstationsSuitable for individual workstations in open offices, armless design allows flexible movement and tucking under desks to save floor space
Conference and meeting roomsSuitable for short-to-medium duration meetings, swivel and mobility function supports easy interaction between meeting participants
Home office workspacesSuitable for residential home office use, two-tone modern appearance fits contemporary home decor
Training and study roomsSuitable for training facilities and student study areas, durable construction supports frequent daily use and repositioning
Reception and visitor areasSuitable for reception desk seating or visitor chairs, modern minimalist aesthetic matches professional reception space design
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable European office furniture safety standardEN 1335:2020
Applicable upholstery fire resistance standardEN 1021:2014
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable North American office chair standardANSI/BIFMA X2017
Applicable caster performance standardANSI/BIFMA X2017 Clause 17
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable Chinese national standard for office chairsGB/T 3326
Applicable mechanical performance standardGB/T 10357.3
Applicable hazardous substance limit standardGB 18584
Standard Tender Description
This product must meet the following technical requirements:
1. Applicable Chinese national standard for office chairs: GB/T 3326;
2. Applicable mechanical performance standard: GB/T 10357.3;
3. Applicable hazardous substance limit standard: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1716B-X08

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1716B-X08

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1716B-X08Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

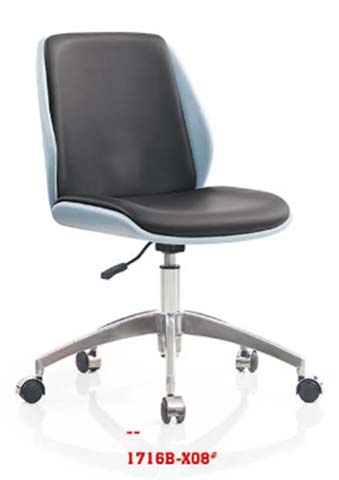

The Yiankang Armless Swivel Height-Adjustable Office Task Chair, model 1716B-X08, features a clean, minimalist two-tone visual profile, with a matte molded polypropylene outer shell paired with smooth black fine-grain PU upholstery. Its compact, armless layout presents a streamlined silhouette that allows full tucking under standard height desks to reduce unused floor space when not in use, with balanced proportions aligned to mnstream armless task chair sizing. The chair uses multi-layer construction: a polished die-cast aluminum five-star base supports a chrome-plated Class 3 steel gas lift, connected to a powder-coated steel swivel and tilt mechanism fixed to the seat’s internal steel support frame. The seat holds high-resilience polyurethane foam padding topped with fixed, stitched PU upholstery, paired with contoured backrest padding designed to deliver mid-back lumbar support. Black nylon twin-wheel casters mount to each leg of the star base for stable, smooth movement. Functional features include pneumatic seat height adjustment accessed via a side nylon lever, full 360-degree swivel rotation, and 12-degree synchronized backward tilt with adjustable tension for personalized comfort. The casters perform reliably on hard flooring and low-pile carpet, and fixed upholstered pads create a sleek, seamless surface without loose, removable covers. Two color options are offered: light blue shell with black upholstery, and white shell with black upholstery. This chair fits a broad range of spaces, including open plan office workstations, conference and meeting rooms, home office workspaces, training and study rooms, and reception or visitor waiting areas. Its lightweight build allows quick repositioning for collaborative activities or room layout changes, and its modern aesthetic complements both professional commercial interiors and contemporary residential decor. For procurement, note the chair ships in protective packaging for efficient contner loading, with simple, quick assembly requiring no complex tooling. It carries a standard commercial-grade warranty covering frame and mechanism defects, with a recommended user weight limit suited to 8 hours of dly use. Purchase teams should confirm material specifications with supplier documentation when finalizing bulk orders, and select the preferred color variant to match existing interior design schemes.
