OFC-EXE-HB-WAL-001

Code：7B4XCJV1
Request supplier quotes

High-Back Leather Executive Office Chair with Headrest and Walnut Veneer Shell Key Specifications 2026-08-05 17:15

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFC-EXE-HB-WAL-001

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierHigh-Back Leather Executive Office Chair with Headrest and Walnut Veneer Shell，Multi-layer
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 700 x 1280 mm
Seat height adjustable range440 to 540 mm
Seat width520 mm
Seat depth500 mm
Backrest height760 mm
Headrest dimensions460 x 180 mm
Armrest height above seat220 mm
Five-star base diameter700 mm
Caster diameter60 mm
Seat cushion thickness80 mm
Backrest padding thickness50 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight range27 kg
Maximum recommended user weight150 kg
Gas lift stroke100 mm
Backrest tilt angle range90 to 120 degrees
Caster rolling durability100000 cycles
Seat edge static load rating75 kg
Standard warranty period5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and backrest upholstery1.4mm thick top-grain black leather
Seat cushion padding80mm thick high-density polyurethane foam
Backrest padding50mm thick high-density polyurethane foam
Structural shell12mm thick bent plywood with walnut wood veneer finish
Armrest structurePolished die-cast aluminum frame with padded leather top surface
Five-star basePolished die-cast aluminum alloy, 3mm wall thickness
Gas liftClass 3 chrome-plated steel gas lift, 50mm outer diameter
Tilt mechanism3mm thick steel multi-lock synchro-tilt chassis
Casters60mm diameter black polyurethane swivel casters with steel stem
Seam constructionBonded nylon thread with 8 stitches per 30mm seam pitch
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic adjustment via right-side lever, 100mm travel range to fit 1900 mm user height
Backrest recline functionSynchro-tilt mechanism with 3-position lock, tilts backrest at 1:1.3 ratio relative to seat pan, 30 degree maximum recline angle
Tilt tension adjustmentRotary knob under seat adjusts recline resistance to match user weight between 150 kg
360-degree swivel functionFull rotational swivel around central gas lift axis for easy access to desk surfaces without repositioning the base
Mobility functionFive dual-wheel polyurethane casters enable smooth rolling on hard floors and low-pile commercial carpet with 12kg rolling resistance
Integrated headrest supportPadded fixed-position headrest aligned to support cervical spine during upright and reclined seating positions
Fixed arm supportCurved padded armrests positioned at 220mm above seat to support forearms and reduce shoulder strain during desk work
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1
Shipping carton dimensions870 x 680 x 630 mm
Gross shipping weight32 kg
Shipping volume per unit0.373 CBM
Required assembly time25 minutes
20ft GP container loading quantity90 units
40ft HQ container loading quantity220 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officesSuits premium executive offices with walnut wood trim, formal professional appearance for management and C-suite users
Corporate boardroomsMatches formal conference room aesthetics for director-level seating around boardroom tables with standard 760 mm desk height
High-end home officesFits luxury home workspaces with leather and wood finish, comfortable for 8 hour daily work sessions
Commercial client meeting roomsProvides professional, durable seating for visiting clients in law firms, financial institutions and executive service environments
Adjustability for mixed user groups100mm seat height adjustment and tilt tension control accommodates users 1900 mm tall across different user populations
Flooring compatibilityPolyurethane casters work safely on hard wood, tile and low-pile commercial carpet without floor protection mats for standard use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applies to office chair dimensional safety and performance requirements for office work chairs, baseline for ergonomic sizing verification
EN 1335-2:2018Applies to strength, durability and stability requirements for office swivel chairs, minimum performance threshold for commercial use
EN 1022:2018Applies to seating stability testing, ensuring resistance to forward, rearward and sideways tipping during normal use
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 Clause 17Applies to caster durability testing, requiring 100000 cycle rolling performance without failure for commercial use chairs
Seat static load capacity1136 kg
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016Applies to size measurement of office chairs, defining standard dimensions for seat height, width, depth and backrest dimensions for procurement verification
GB/T 3324-2017Applies to general technical requirements for wood furniture, covering surface finish quality, structural strength and dimensional tolerance for the bent plywood shell
GB/T 22792.1-2009Applies to stability, strength and durability requirements for office swivel chairs, minimum performance baseline for commercial procurement
GB 18584-2001Applies to formaldehyde emission limits for wood-based furniture components, mandatory requirement for indoor commercial furniture sold in China
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to size measurement of office chairs, defining standard dimensions for seat height, width, depth and backrest dimensions for procurement verification;
2. GB/T 3324-2017: Applies to general technical requirements for wood furniture, covering surface finish quality, structural strength and dimensional tolerance for the bent plywood shell;
3. GB/T 22792.1-2009: Applies to stability, strength and durability requirements for office swivel chairs, minimum performance baseline for commercial procurement;
4. GB 18584-2001: Applies to formaldehyde emission limits for wood-based furniture components, mandatory requirement for indoor commercial furniture sold in China;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-EXE-HB-WAL-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-EXE-HB-WAL-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-EXE-HB-WAL-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

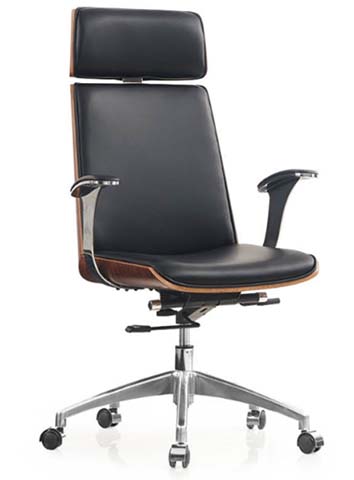

The Yiankang OFC-EXE-HB-WAL-001 High-Back Leather Executive Office Chair with Headrest and Walnut Veneer Shell presents a refined, formal silhouette defined by its curved bent plywood structural shell finished in smooth walnut veneer, which traces the edges of the seat and high backrest for a cohesive, premium look. A rectangular padded fixed headrest sits flush at the top of the contoured backrest, paired with curved fixed armrests that feature polished die-cast aluminum frames topped with leather padding matched to the upholstery, and a polished five-star aluminum base fitted with black dual-wheel casters for a balanced, professional aesthetic. The chair is built for commercial-grade durability, with a core structure of bent plywood framing, a 3mm thick steel multi-lock synchro-tilt chassis, and a Class 3 chrome-plated steel gas lift for height adjustment. Seat and back surfaces are upholstered in smooth black top-grain leather, stitched with bonded nylon thread for long-term wear resistance. Seat cushions use high-density polyurethane foam with generous thickness for sustned support, while backrest padding is contoured to cradle the lumbar region, and armrest pads match the seat upholstery for consistent comfort. The polished aluminum five-star base supports 60mm diameter polyurethane swivel casters suited for smooth movement across common flooring types. Practical functionality centers on ergonomic support for extended work sessions: pneumatic seat height adjustment accessible via a right-side lever allows users to customize positioning to fit standard desk heights, while the synchro-tilt mechanism offers multi-position locking to secure preferred recline angles, with an under-seat rotary knob to adjust tilt tension to match user preference. The chair supports full 360-degree swivel for easy access to surrounding work surfaces without repositioning the base, the integrated fixed headrest aligns to support the cervical spine during both upright work and reclined postures, and curved armrests are positioned to reduce shoulder strn by supporting forearms during desk tasks. The casters roll smoothly across hard flooring and low-pile carpet without requiring additional floor protection for standard use. This executive chair is well suited for a range of professional and upscale residential spaces, including private executive offices for C-suite and management personnel, corporate boardrooms, formal client meeting rooms in professional services settings such as law firms and financial institutions, and high-end home offices seeking a polished, professional aesthetic paired with long-session comfort. Its design coordinates naturally with wood-trimmed office interiors and standard height executive desks. For procurement teams, key considerations include confirming final material grades via supplier bill of materials prior to bulk order, as some material specifications are based on comparable product benchmarks. The chair ships in knock-down configuration for optimized freight efficiency, with standard assembly time per unit, and contner loading quantities are calculated to support large-scale project planning. The product carries a 5-year standard warranty aligned with premium commercial executive seating standards, and its weight capacity accommodates a broad range of users across mixed work groups, with height adjustment suited for taller user profiles.
