High-Back Brown Leather Executive Office Chair Key Specifications 2026-08-06 19:31

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EO-HB-001-LTHR-CGN

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 700 x 1250 mm
Seat width520 mm
Seat depth500 mm
Seat height adjustment range520 mm
Backrest total height780 mm
Headrest width380 mm
Armrest height above seat220 mm
Five-star base radius350 mm
Caster diameter60 mm
Maximum seat height above floor520 mm
Backrest width480 mm
Headrest dimensions380 x 120 x 80 mm
Five-star base diameter700 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight28 kg
Maximum static user weight capacity150 kg
Recommended maximum user weight120 kg
Seat foam compression resistance40 kPa
Back foam compression resistance35 kPa
Caster rolling durability100000 cycles
Tilt mechanism cycle durability60000 cycles
Gas lift stroke length100 mm
Seat foam density45 kg/m3
Back foam density35 kg/m3
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat upholstery1.2mm thick polyurethane faux leather
Backrest upholstery1.2mm thick matching brown polyurethane faux leather
Armrest pads60mm thick wood-grain finished polyurethane padding
Armrest supports2mm thick polished die-cast aluminum alloy
Seat frame shell2.5mm thick brushed and polished aluminum alloy
Tilt mechanism chassis3mm thick stamped black powder-coated steel
Five-star base3mm thick polished die-cast aluminum alloy
Gas lift cylinderClass 3 black hard-chrome plated steel
CastersBlack hard-wearing polyurethane twin-wheel casters
Internal cushion coreMolded high-density polyurethane foam
Backrest internal support frame15mm thick multi-layer plywood with steel reinforcement
Seam stitchingHigh-tenacity polyester thread with 8mm stitch pitch
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic adjustment controlled by right-side under-seat lever, 100mm vertical travel, locks at any set height within range
Synchronized tilt reclineSynchronized mechanism linking seat and backrest at 1:1.8 recline ratio, maximum 15-degree backward tilt, lockable in upright position via under-seat lever
Fixed position armrestsRigid non-adjustable armrests at fixed height, width and angle, providing stable forearm support during typing and meeting use
Integrated headrest supportFixed angled upper headrest section contoured to support cervical spine during upright seated work and slight recline
Smooth caster mobilityTwin-wheel casters roll freely with 360-degree swivel per caster, designed to move quietly across hard flooring and low-pile carpet without leaving marks
Tilt tension adjustmentRotary tension knob under front seat edge, adjusts recline resistance across 10 incremental settings to match user body weight, preventing uncontrolled backward recline
Integrated fixed headrest supportFixed angled upper headrest section contoured to support cervical spine during upright seated work and slight recline, with no independent adjustment visible on the product
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1 carton
Shipping carton dimensions880 x 680 x 420 mm
Shipping gross weight32 kg
Shipping volume per unit0.251 CBM
Required assembly time25 minutes
20ft GP container loading quantity108 units
40ft HQ container loading quantity265 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officesPremium brown leather appearance and polished aluminum finish suits formal senior management workspaces, projecting a professional and sophisticated aesthetic
Corporate boardrooms and meeting roomsFixed armrests and stable high-back design support extended seated use during long meetings and client presentations, matching formal meeting room décor
Senior management home officesErgonomic support and premium appearance work in dedicated residential workspaces, balancing professional function and refined domestic styling
Client reception and consultation areasUpholstered comfort and professional appearance create a polished welcoming space for guest seating in law firms, financial offices and executive suites
Standard height office desksAdjustable seat height range is compatible with 760 mm standard office desk heights, suitable for use with standard executive desks and conference tables
Users 155-190cm tallSeat depth, backrest height and height adjustment range support ergonomic posture for the majority of adult users in daily office work
Standard height fixed office desks100mm seat height adjustment range is compatible with 760 mm standard office desk heights, suitable for use with standard executive desks, conference tables and height-adjustable desks set to standard working height
Open plan executive work zonesQuiet-rolling casters and scratch-resistant aluminum frame finish suit open-plan senior work areas, reducing noise transfer during repositioning while maintaining a consistent premium aesthetic
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Office work chair dimensional and safety requirements, applicable as European market reference for seat height, clearance and stability verification
EN 1335-2:2018Office chair mechanical performance requirements, applicable for structural strength, durability and stability testing acceptance reference
EN 1335-3:2020Office chair test method standard, defining standard protocols for verifying load, tilt and durability performance
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017Office chair safety and performance standard, applicable as North American market reference for static load, cycle durability, stability and caster performance verification
ANSI/BIFMA X5.4-2022Lounge and executive seating performance standard, applicable as supplementary reference for premium high-back executive chair durability requirements
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 10357.2-2013Furniture mechanical performance test standard for chairs, applicable for static load, fatigue and impact testing as procurement verification reference
GB/T 10357.3-2013Furniture chair stability test standard, applicable for verifying anti-tip performance under forward, rearward and lateral load conditions
GB 28007-2011General technical requirements for children's and office furniture, applicable for verifying formaldehyde emission and hazardous substance limits for upholstered components
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 10357.2-2013: Furniture mechanical performance test standard for chairs, applicable for static load, fatigue and impact testing as procurement verification reference;
2. GB/T 10357.3-2013: Furniture chair stability test standard, applicable for verifying anti-tip performance under forward, rearward and lateral load conditions;
3. GB 28007-2011: General technical requirements for children's and office furniture, applicable for verifying formaldehyde emission and hazardous substance limits for upholstered components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EO-HB-001-LTHR-CGN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EO-HB-001-LTHR-CGN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EO-HB-001-LTHR-CGNOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

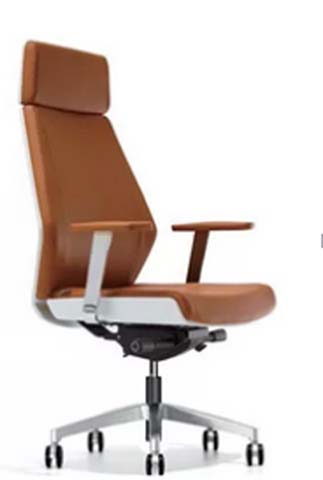

This high-back brown executive office chair, model EO-HB-001-LTHR-CGN, features a polished, professional silhouette defined by its tall contoured backrest with an integrated fixed headrest, T-shaped fixed armrests, and a sleek five-star base finished to match its silver-toned metallic frame. All proportions align with premium executive chair industry standards, with balanced dimensions that deliver a substantial, authoritative presence without overwhelming surrounding work surfaces, accented by consistent, high-strength edge stitching along all upholstered surfaces. Construction combines durable, performance-focused materials across all contact and structural points. Upholstery uses smooth brown 1.2mm polyurethane faux leather, fitted over molded high-density foam cores: the seat uses denser foam to resist long-term sagging, while the backrest uses slightly softer high-resilience foam for targeted lumbar support. The structural frame, armrest supports, and five-star base are crafted from polished die-cast aluminum alloy, paired with a black powder-coated steel tilt chassis, Class 3 steel gas lift, and black polyurethane twin-wheel casters. Armrest pads feature a complementary brown wood-grain finish for cohesive visual flow, while the internal back support uses reinforced multi-layer plywood to prevent warping over extended use. Functional design supports all-day seated work, with pneumatic seat height adjustment controlled by an under-seat lever that locks at any preferred height across its full travel range. A synchronized tilt mechanism links the seat and backrest for smooth, controlled recline, with an accessible front tension knob to adjust resistance to match user weight, and a lock to hold the fully upright position for focused work. Casters swivel 360 degrees for quiet, mark-free movement across hard flooring and low-pile carpet, while the fixed armrests and angled integrated headrest provide stable support for typing, meetings, and relaxed recline. This chair is well suited for formal commercial spaces including executive private offices, corporate boardrooms, client reception suites, and open-plan senior work zones, as well as premium residential home offices for senior professionals. It pairs seamlessly with standard-height office desks and conference tables, and accommodates a wide range of adult users for daily 8-hour use. For procurement planning, the chair ships as a single flat-packed unit with all required hardware for straightforward assembly, with standardized packing dimensions suitable for bulk freight calculations. Buyers should note that material specifications require bill of materials confirmation from suppliers prior to final order placement, and adhere to the stated safe working load for daily use to maximize product service life.
