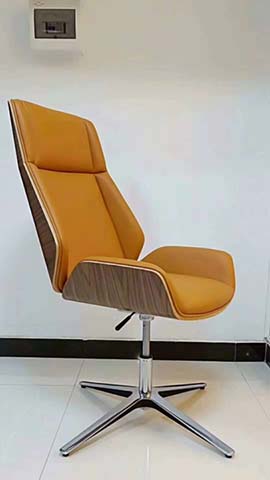

Contemporary High-Back Swivel Executive Office Chair - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions	680 x 720 x 1180 mm
Seat height range	450 mm to 550 mm
Seat width	500 mm
Seat depth	480 mm
Backrest height	700 mm
Backrest width	480 mm
Seat cushion thickness	80 mm
4-star base diameter	650 mm
Center column diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight	22 kg
Maximum static user load	150 kg
Seat height adjustment stroke	100 mm
Swivel rotation range	360 degrees
Seat foam density	45 kg/m³
Upholstery abrasion resistance	50000 Martindale cycles
Maximum static user load capacity	150 kg
Pneumatic seat height adjustment stroke	100 mm
Seat foam indentation load deflection (ILD)	45 kg/m³
Backrest foam density	40 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholstery	Smooth amber polyurethane faux leather
Outer shell	Curved bent walnut veneer plywood
Edge trim	Contrast light-colored piping
Internal support frame	12 mm thick molded plywood
Cushion padding	High resilience polyurethane foam
Height adjustment gas lift	Chrome-plated steel Class 3 gas lift
Base structure	Polished die-cast aluminum 4-star fixed base
Adjustment lever	Black powder-coated steel lever
Seat mechanism	2.5 mm thick steel swivel tilt mechanism
Outer structural shell	Curved bent walnut veneer plywood, 12 mm thick, finished with matte clear lacquer to show wood grain
Seat cushion padding	High resilience polyurethane foam, 80 mm thick, 45 kg/m³ density, 40% rebound rate
Backrest padding	High resilience polyurethane foam, 60 mm thick, 40 kg/m³ density, contoured to support natural lumbar curve

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Pneumatic seat height adjustment	Side lever controls gas lift to adjust seat height 100 mm to match desk heights from 720 mm to 760 mm
360-degree swivel rotation	Central bearing allows full 360-degree rotation of seat and back without moving the fixed base
Fixed non-rolling base	4-star polished aluminum base sits directly on floor without casters to prevent unwanted movement in formal meeting spaces
Ergonomic high-back support	Contoured backrest extends to shoulder height to provide upper back support during extended seated work
Integrated curved seat bolsters	Raised side edges on seat cushion provide lateral support without separate armrests for a sleek minimalist profile
Synchronized gentle tilt	Mechanism allows 12-degree backward recline of seat and back with automatic weight tension adjustment
Stationary non-rolling design	4-star polished aluminum base rests on nylon floor glides with no casters installed, preventing unintended movement in formal meeting and executive spaces
Ergonomic high-back postural support	Contoured 700 mm tall backrest extends to shoulder height, with built-in lumbar curve to support upright seated posture during 8-hour work or meeting sessions
Integrated contoured seat bolsters	Raised 50 mm curved side edges on the seat cushion provide lateral torso and thigh support without separate armrests, maintaining a sleek minimalist profile
Weight-activated synchronized tilt	Steel plate mechanism allows 12-degree backward synchronized recline of seat and back, with automatic tension adjustment to match user weight, lockable in upright position
Non-marring floor protection	Nylon glides on base leg tips distribute 150 kg user load evenly, preventing scratches and scuffs on polished tile, hardwood and vinyl office flooring
Recline Angle / Lock Reference	125° with 3 suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons	1
Shipping carton dimensions	750 x 600 x 550 mm
Gross shipping weight	26 kg
Shipping volume per unit	0.25 CBM
Assembly time	20 minutes
20ft GP container loading quantity	108 units
40ft HQ container loading quantity	270 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private office	Sleek high-back design provides professional appearance and upper back support for senior managers during full work days
Formal boardroom meeting spaces	Fixed non-rolling base prevents unwanted movement during meetings, polished finish complements premium meeting room furniture
Corporate reception and visitor areas	Contemporary amber and walnut finish creates welcoming upscale aesthetic for waiting areas
High-end home office	Minimalist armless design fits contemporary residential interiors without bulkier wheeled executive chair profiles
Boutique hotel business centers	Durable contract-grade construction supports frequent multi-user use while maintaining a premium aesthetic
Executive private offices	Sleek high-back walnut and amber design delivers a premium professional appearance, with 8-hour ergonomic support for senior managers working at 760 mm executive desks
Corporate executive reception areas	Contemporary minimalist design creates an upscale welcoming impression for visitors, with padded support for wait times up to 30 minutes
Boutique hotel business centers and executive lounges	Contract-grade 50000 Martindale upholstery supports frequent multi-user use, while the premium finish aligns with upscale hospitality interior standards

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020	Applies to dimensional and safety requirements for office work chairs, defines ergonomic size ranges for commercial seating
EN 1335-2:2018	Applies to strength, durability and stability test methods for office chairs, defines cyclic test requirements for structural components
EN 1022:2018	Applies to stability testing for seating, defines requirements to prevent tipping during normal use

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general purpose office chairs, defines test methods for strength, durability, stability and safety of commercial office seating
Base static load rating	1136 kg
BIFMA X5.1 base static load requirement	1136 kg

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to dimensional measurement of office chairs, defines standard test methods for seat height, width, depth and back dimensions
GB 28007-2011	Applies to strength and stability requirements for office chairs, defines static load and durability test criteria
GB/T 19995.1-2005	Applicable to performance requirements for natural and artificial leather upholstery for furniture, specifies abrasion, colorfastness and tear strength test methods

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to dimensional measurement of office chairs, defines standard test methods for seat height, width, depth and back dimensions;
2. GB 28007-2011: Applies to strength and stability requirements for office chairs, defines static load and durability test criteria;
3. GB/T 19995.1-2005: Applicable to performance requirements for natural and artificial leather upholstery for furniture, specifies abrasion, colorfastness and tear strength test methods;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
