OFM-ARM-4STAR-BG01

Code：9GHBTFV1
Request supplier quotes

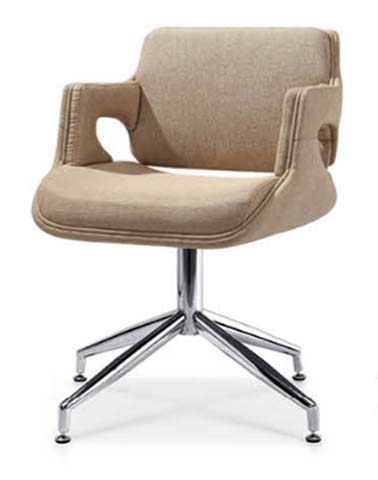

Beige Upholstered Swivel Conference Armchair with Polished Aluminum 4-Star Base Key Specifications 2026-08-05 17:15

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFM-ARM-4STAR-BG01

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierBeige Upholstered Swivel Conference Armchair with Polished Aluminum 4-Star Base，Multi-layer
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions640 x 620 x 860 mm
Seat height450 mm
Seat width500 mm
Seat depth470 mm
Seat cushion thickness80 mm
Backrest height430 mm
Backrest width530 mm
Armrest height above seat200 mm
Armrest inner width460 mm
4-star base diameter620 mm
Column diameter50 mm
Glide foot diameter40 mm
Backrest padding thickness50 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net product weight18 kg
Maximum static user weight150 kg
Seat foam density45 kg/m³
Foam rebound rate45%
Base static load rating500 kg
Fabric abrasion resistance50000 Martindale cycles
Standard warranty period5 years
Available upholstery color options6
Seam stitch pitch3 mm
Static anti-tip angle15 degrees
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back outer shellMolded 12mm thick plywood
Seat cushion paddingHigh resilience polyurethane foam
Backrest paddingHigh resilience polyurethane foam
Upholstery fabricWoven polyester blend fabric
Armrest structureIntegrated upholstered armrests cut from same plywood shell as seat/back, padded with 30mm foam, wrapped in matching fabric with reinforced cutout for hand clearance
Support columnChrome-plated steel gas lift cylinder
Swivel mechanismSteel swivel plate 3mm thick
4-star basePolished die-cast aluminum
Floor glidesNon-marking hard rubber with polished steel housing
Stitching detailsMatching beige bonded nylon thread
Seat and back internal frameMolded 12mm thick hardwood plywood
Integrated armrest structureContinuous cut from same plywood shell as seat/back, padded with 30mm high resilience foam, wrapped in matching upholstery fabric with reinforced hand access cutout
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

360-degree swivel rotationFull 360 degree horizontal rotation enabled by precision bearing swivel mechanism, allowing users to turn without moving the chair base
Fixed ergonomic seat heightFixed 450mm seat height optimized for use with standard 760 mm high conference tables and desks, no height adjustment to simplify operation in shared spaces
Integrated fixed armrestsContinuous upholstered armrests with ergonomic curved profile and open hand cutout, providing fixed arm support at 650mm above floor level, eliminating protruding adjustment parts
Floor protection functionLow-profile non-marking rubber glides at each base leg prevent scratches on hardwood, tile and vinyl flooring, with no rolling casters for stable placement in formal meeting rooms
Mid-back lumbar supportContoured backrest shape with built-in lumbar curve aligned to the natural lower back spine, eliminating need for separate adjustable lumbar support for short meeting durations
Stable anti-tip design620mm diameter 4-star aluminum base provides 15 degree static tilt resistance per commercial seating stability requirements, preventing tipping during normal swivel and seated movement
Integrated fixed arm supportContinuous upholstered armrests with ergonomic curved profile and open hand cutout, providing fixed arm support at 650mm above floor level with no protruding adjustment components
Hard floor protectionLow-profile non-marking rubber glides at each base leg prevent scratches on hardwood, tile, vinyl and polished concrete flooring, with no rolling casters for stable fixed placement in formal meeting rooms
Built-in mid-back lumbar supportContoured backrest shape with pre-formed lumbar curve aligned to the natural lower back spine, providing consistent upright support for short to medium duration meetings without separate adjustable lumbar parts
Anti-tip stability620mm diameter 4-star aluminum base provides 15 degree static tilt resistance, preventing tipping during normal swivel movement and seated weight shift
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages1
Shipping carton dimensions670 x 650 x 470 mm
Gross shipping weight22 kg
Carton volume (CBM)0.205
Required assembly time10 minutes
20ft GP container loading quantity130 units
40ft HQ container loading quantity330 units
Packaging materials5-layer corrugated carton, EPS foam corner protection, PE film wrap, included hex assembly key
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate conference roomsFormal polished aluminum base and tailored beige upholstery suited for executive boardrooms and meeting spaces, stable non-rolling base prevents unwanted movement during discussions
Executive office guest seatingCompact profile works as side guest chair positioned across from executive desks, with swivel function allowing easy orientation during conversations
Boutique hotel lounge and meeting areasSoft upholstered form and warm beige finish aligns with upscale hospitality interiors, durable contract-grade fabric withstands frequent guest use
Private study and home office spacesRefined residential-appropriate aesthetic works for home workspaces, non-marking glides protect residential hardwood floors without requiring chair mats
Client reception waiting areasComfortable padded seat and back supports short to medium duration waiting periods, integrated armrests provide comfortable support for visitors
Co-working open meeting zonesSwivel function supports collaborative group discussions, 5-year structural durability rating supports high-frequency shared space use
Boutique hotel meeting and lounge areasSoft upholstered form and warm beige finish complements upscale hospitality interiors, 50000 Martindale abrasion-rated fabric withstands frequent guest turnover
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable office chair safety standardEN 1335:2018
Applicable stability standardEN 1022:2018
Applicable fabric fire safety standardEN 1021:2014
Applicable office seating safety standardEN 1335:2018
Applicable seating stability standardEN 1022:2018
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable stability standardGB/T 10357.2
Applicable strength and durability standardGB/T 10357.3
Applicable upholstery fabric standardGB/T 21295
Applicable chair stability standardGB/T 10357.2
Applicable chair strength and durability standardGB/T 10357.3
Standard Tender Description
This product must meet the following technical requirements:
1. Applicable stability standard: GB/T 10357.2;
2. Applicable strength and durability standard: GB/T 10357.3;
3. Applicable upholstery fabric standard: GB/T 21295;
4. Applicable chair stability standard: GB/T 10357.2;
5. Applicable chair strength and durability standard: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFM-ARM-4STAR-BG01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFM-ARM-4STAR-BG01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFM-ARM-4STAR-BG01Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The Yiankang OFM-ARM-4STAR-BG01 is a beige upholstered swivel conference armchair designed for consistent, polished performance across commercial and residential work and gathering spaces. Visually, the chair presents a streamlined mid-back profile with integrated curved armrests, finished in matte textured beige woven fabric accented by precision matching-thread double stitching along all upholstery edges. Its base is a polished die-cast aluminum 4-star design with subtle decorative grooving along each leg, paired with a mirror-finish chrome steel central column for a refined, professional aesthetic that balances soft upholstered form with sleek metallic detling. Structurally, the chair is built around a molded 12mm hardwood plywood internal frame that forms the continuous shape of the seat, backrest, and integrated armrests. All padded surfaces use high-resilience polyurethane foam: the seat features a layered cushion wrapped with a soft foam top layer for edge comfort, while the contoured backrest is shaped to provide built-in mid-back lumbar support aligned to the natural lower spine. Armrests are padded with matching foam and cut with reinforced hand access cutouts for comfortable entry and exit. The polished aluminum 4-star base supports a steel swivel mechanism enabling full 360-degree rotation, with fixed non-marking hard rubber glides at each leg end, and a fixed-height commercial-grade gas lift column set to a standard desk-aligned seat height. Core functional features include stable anti-tip performance during normal swivel and seated movement, non-marking floor protection for hard surface flooring, medium-firm support suited for short to medium duration seating, and a simple fixed-height design that eliminates protruding adjustment levers for a clean, uncluttered look. The heavy-duty contract-grade woven fabric resists pilling and stands up to frequent high-traffic use, while the high-resilience foam is formulated to retain its shape over extended regular use. This chair is well suited for corporate conference rooms and executive boardrooms, executive office guest seating zones, boutique hotel lounge and meeting areas, private home offices and studies, client reception waiting spaces, and co-working open meeting zones. Its neutral beige finish is part of a selection of six standard commercial upholstery color options, allowing coordination with a wide range of interior design schemes. For procurement, stakeholders should note the chair ships in knock-down flat packaging for freight efficiency, with simple assembly requiring no special tools. The product carries a 5-year warranty for structural components and a 2-year warranty for upholstery fabric. The fixed seat height is optimized for standard-height conference tables and desks, and the non-rolling glide design is intended for hard floor surfaces rather than carpeted applications where casters would be preferred. Loading quantities for standard shipping contners allow for cost-effective bulk ordering for large-scale fit-out projects, and the durable fabric and structural load rating support long-term use in high-turnover shared spaces.
