Sell on FurnDim
HomeOffice Desks & Chairs FurnitureOffice Chair SeriesPowder coated office chairOFC-CONF-008-BR

OFC-CONF-008-BR

Code:BCXWLYV1
Request supplier quotes

Brown Faux Leather Cantilever Conference Chair with Chrome Sled Base Key Specifications 2026-08-06 19:49

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFC-CONF-008-BR

1 active supplier(s) >>
Product supplierBrown Faux Leather Cantilever Conference Chair with Chrome Sled Base,Multiple layers
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions620 x 680 x 1020 mm
Seat height450 mm
Seat depth480 mm
Seat width500 mm
Backrest height550 mm
Backrest width480 mm
Armrest height above seat220 mm
Sled base width580 mm
Sled base depth620 mm
Seat cushion thickness80 mm
Backrest padding thickness60 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight14 kg
Maximum static load capacity150 kg
Recommended user weight limit120 kg
Backrest flex deflection under 100kg load12 degrees
Seat foam density45 kg/m³
Backrest foam density35 kg/m³
Foam rebound rate45%
Seam stitch pitch8 stitches per 30mm
Net product weight14 kg
Recommended occupant weight limit120 kg
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and backrest upholstery1.0mm thick brown PU faux leather
Seat core paddingHigh-density polyurethane foam
Backrest core paddingMolded high-density polyurethane foam with horizontal segmented stitching
Armrest support structure25mm diameter chrome-plated steel tubing
Armrest top padsInjection-molded black polyurethane, soft-touch finish
Cantilever sled base1.5mm thick polished chrome-plated steel tube, continuous bent frame
Floor contact glidesInjection-molded nylon anti-scuff glides
Internal backrest support panel12mm thick molded plywood
Upholstery abrasion resistance (Martindale)50000 cycles
Cantilever support frame1.5mm wall thickness polished chrome-plated steel tube, continuous bent one-piece sled structure
Armrest support brackets25mm diameter chrome-plated steel tubing, welded to main sled frame for rigid support
Frame connection hardwareZinc-plated steel bolts and lock washers, securing seat/back assembly to steel frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seating supportFixed cantilever sled frame provides gentle controlled flex when seated, no tilt or swivel mechanism
Arm support functionFixed-height 220mm armrests provide consistent forearm support during seated meetings, with no height, width, or angle adjustment capability
Lumbar supportContoured segmented backrest with raised horizontal padding provides built-in mid-back lumbar support, no adjustable lumbar mechanism
Floor protectionIntegrated nylon glides prevent scratching hard floor surfaces, allow gentle repositioning without lifting the chair
Stacking capabilityNon-stacking fixed frame design, intended for permanent placement around conference tables
Cleaning and maintenanceSmooth PU upholstery can be wiped clean with standard non-abrasive office cleaning products, no removable cushion covers
Assembly requirementDelivered partially assembled, requiring attachment of armrest/frame components to seat back unit with included hardware
Seating support mechanismFixed cantilever sled frame provides 12 degrees of controlled gentle flex when occupied, with no swivel, tilt, or height adjustment mechanisms
Lumbar support functionContoured segmented backrest with raised 60mm thick horizontal padding provides built-in mid-back lumbar support, with no adjustable lumbar mechanism
Floor protection functionIntegrated nylon glides prevent scratching of hard floor surfaces, allowing low-force repositioning without lifting the chair
Cleaning maintenanceSmooth non-porous PU upholstery can be wiped clean with standard non-abrasive office cleaning products, with sewn-in non-removable cushion covers
Static stability performanceWide 590mm sled base provides 10 degree tipping resistance when unoccupied, meeting commercial seating stability requirements
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1 piece per carton
Shipping carton dimensions670 x 520 x 600 mm
Gross shipping weight16 kg
Shipping volume per unit (CBM)0.21 CBM
Assembly time per unit20 minutes
20ft GP container loading quantity320 units
40ft HQ container loading quantity760 units
Packaging materials5-layer corrugated carton, expanded polystyrene edge protection, polyethylene bag wrap, included hardware kit with allen key
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Conference room seatingSuitable for placement around meeting and boardroom tables, with fixed stable design and professional appearance for client and internal meetings
Visitor and guest seatingIdeal for reception areas, executive office guest positions, and waiting areas, with polished chrome frame and leather-look upholstery providing a formal professional aesthetic
Training room seatingAppropriate for corporate training rooms and seminar spaces, with durable upholstery and stable base that prevents unwanted movement during sessions
Hard floor compatibilitySuitable for use on tile, hardwood, laminate, and sealed concrete floors with integrated anti-scuff glides that prevent floor damage
Carpet compatibilitySuitable for low to medium pile carpeted offices, with wide sled base that distributes weight to avoid excessive sinking into carpet pile
Matching desk configurationPairs with executive desks, conference tables, and reception counters with standard 750 mm work surface height, with 450mm seat height matching standard desk ergonomics
Available upholstery color optionsOffered in black, brown, and dark gray PU upholstery for coordination with standard office interior palettes
Reception visitor seatingIdeal for reception areas, executive office guest positions, and corporate waiting zones, with polished chrome frame and leather-look upholstery projecting a professional formal aesthetic
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2000Office furniture - Office work chair - Part 1: Dimensions - safety requirements, applicable for dimensional ergonomic verification
EN 1335-2:2009Office furniture - Office work chair - Part 2: Safety requirements, applicable for structural strength and stability testing
EN 1022:2005Domestic furniture - Seating - Determination of stability, applicable for cantilever chair tipping resistance verification
EN 15373:2007Furniture - Strength, durability and safety - Requirements for non-domestic seating, applicable for contract-grade visitor chair durability
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 Test 5Backrest static load test: 667N force applied to backrest for 1 minute, with no structural failure or permanent deformation
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable for internal structural plywood components
GB/T 3325-2017General technical requirements for metal furniture, applicable for chrome-plated steel frame strength and finish durability
GB 18584-2001Limit of harmful substances in wooden furniture, applicable for formaldehyde emission limits from internal panel components
GB/T 29601-2013General technical requirements for office furniture, applicable for overall chair stability, static load and durability performance
GB/T 39222-2020Office furniture - Visitor chair, applicable to dimensional ergonomics, structural safety, and test methods for fixed visitor seating
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for internal structural plywood components;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable for chrome-plated steel frame strength and finish durability;
3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission limits from internal panel components;
4. GB/T 29601-2013: General technical requirements for office furniture, applicable for overall chair stability, static load and durability performance;
5. GB/T 39222-2020: Office furniture - Visitor chair, applicable to dimensional ergonomics, structural safety, and test methods for fixed visitor seating;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-CONF-008-BR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-CONF-008-BR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-CONF-008-BROpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

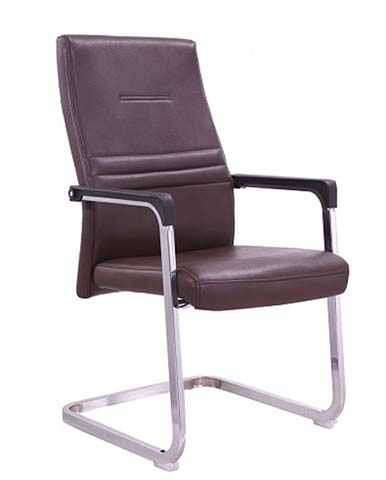

The Brown Faux Leather Cantilever Conference Chair with Chrome Sled Base, model OFC-CONF-008-BR, is an unbranded cantilever visitor chair designed for formal professional settings. It presents a sleek, streamlined profile with a mid-back silhouette, continuous polished chrome sled frame that extends upward to form fixed arm supports, and smooth dark brown PU faux leather upholstery accented by horizontal segmented stitching on the backrest. Padded armrest caps sit at a consistent fixed height above the seat, creating a neat, uncluttered visual line suited to coordinated office layouts. Constructed for durable commercial use, the chair features a one-piece bent chrome-plated steel frame, with welded tubular arm supports secured by zinc-plated steel bolts and lock washers. The seat and backrest are padded with high-density polyurethane foam, with a molded plywood internal support panel providing rigid back structure. The armrest tops use soft-touch black polyurethane pads, while the base ends are fitted with injection-molded nylon anti-scuff glides. The upholstery uses smooth grained brown PU, stitched with a dense, even seam pattern for long-term wear resistance. Functionally, the chair uses a fixed cantilever design that delivers gentle controlled flex when occupied, with no swivel, tilt, or height adjustment mechanisms to reduce distraction during meetings. The contoured segmented backrest delivers built-in mid-back lumbar support, while fixed armrests provide consistent forearm support for seated sessions. The non-stacking frame supports permanent placement, with integrated glides that protect hard floor surfaces and allow low-force repositioning without lifting. The smooth non-porous PU upholstery wipes clean easily with standard non-abrasive office cleaning products, and the chair ships partially assembled for straightforward on-site setup. This chair is well suited for conference and boardroom seating around standard height meeting tables, reception and waiting area guest positions, executive office visitor spots, and corporate training or seminar spaces. It performs reliably on hard flooring including tile, hardwood, laminate, and sealed concrete, as well as low to medium pile commercial carpet. It pairs seamlessly with standard height executive desks, conference tables, and reception counters, and is available in additional neutral upholstery tones to coordinate with existing office palettes. For procurement, teams should note that final material grades and structural specifications require supplier bill of materials confirmation, as some dimensional and structural references are derived from standard category configurations. The chair is packaged for commercial shipping with protective materials to reduce transit damage, with straightforward assembly requirements for facilities teams. Weight capacity aligns with standard commercial office visitor seating guidelines, and the formal aesthetic coordinates with most contemporary and traditional office design schemes.
