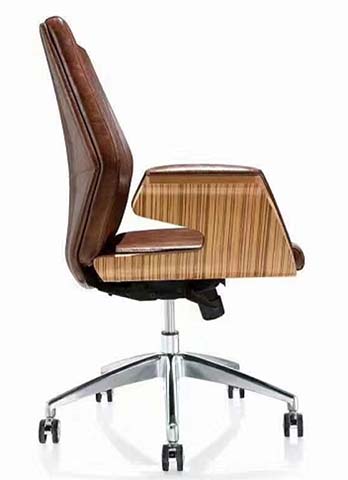

Mid-century Plywood Upholstered Executive Office Chair - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions	650 x 670 x 1100 mm
Seat height range	450 mm to 550 mm
Seat width	490 mm
Seat depth	470 mm
Backrest height	620 mm
Backrest width	460 mm
Five-star base diameter	700 mm
Caster wheel diameter	50 mm
Gas lift cylinder diameter	50 mm
Upholstered seat cushion thickness	50 mm
Plywood shell thickness	12 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight	18 kg
Maximum user weight capacity	150 kg
Gas lift stroke length	100 mm
Backrest recline angle range	12 degrees
Base static load rating	1136 kg
Caster rolling durability	100000 cycles
Seam stitch pitch	3 mm
Foam density (seat cushion)	45 kg/m³
Foam density (backrest)	35 kg/m³
Fabric abrasion resistance (Martindale)	50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer shell structure	12mm bent laminated plywood with walnut wood grain veneer finish
Seat and back upholstery	Dark brown faux leather (PU leather) with edge stitching
Seat cushion core	High resilience polyurethane foam, 50mm thickness, 45kg/m³ density
Back cushion core	Molded polyurethane foam, 30mm thickness, 35kg/m³ density
Five-star base	Polished chrome-plated steel, 2mm wall thickness, polished mirror finish
Height adjustment mechanism	Class 3 nitrogen-filled pneumatic gas lift, 50mm outer diameter, chrome plated
Tilt control mechanism	3mm thick steel plate synchronized tilt chassis, black powder coated finish
Caster wheels	50mm diameter black polyurethane dual-wheel casters, hard/soft floor compatible
Armrests	Integral bent plywood arm caps matched to seat shell finish, no separate padding
Upholstery adhesive and staples	Low-VOC industrial upholstery adhesive, galvanized steel staples
Outer structural shell	12mm bent laminated plywood with walnut wood grain veneer finish, multi-ply cross-laminated construction
Seat and back contact surface upholstery	Dark brown PU faux leather with precision edge stitching, 1.2mm thickness

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustment	Pneumatic height adjustment via side actuating lever, 100mm total travel, adjusts seat from 450mm to 550mm floor to seat height
Synchronized backrest tilt	Synchronized tilt that moves seat and backrest in 1:1.8 ratio, up to 12 degree recline, with adjustable tilt tension control
Smooth rolling mobility	Dual-wheel polyurethane casters roll freely on hardwood, tile and carpeted floors without scratching surfaces
Integrated fixed armrest support	Curved bentwood armrests positioned 220mm above seat surface to support forearms during typing and meeting use
Contoured lumbar support	Curved backrest shell and foam shaping provides built-in lumbar support aligned to the natural lower back curve
Tilt lock function	Lockable upright position for focused task work, unlockable for relaxed recline during meetings or breaks
Floor stability	Five-point base geometry provides tip resistance in all directions when user leans or reaches, meeting standard office chair stability requirements
Synchronized seat-back tilt	Synchronized tilt mechanism moves seat and backrest in 1:1.8 ratio, enables 12 degree maximum back recline, with rotary tension knob under seat to adjust resistance to match 150 kg user weight
Lockable upright seating position	Push-pull operation of the main adjustment lever locks the mechanism in full upright position for focused task work, unlocks to allow free recline for meetings or short breaks
Omnidirectional rolling mobility	Five dual-wheel polyurethane casters provide 360-degree swivel movement, roll freely on hardwood, tile and low-pile carpet without scratching floor surfaces
Integrated fixed forearm support	Continuous bent plywood armrests are positioned 220mm above seat surface, with 70mm wide contact area to support forearms during typing and meeting use
Contoured fixed lumbar support	Curved tall backrest shell and molded foam shaping provides built-in lumbar support aligned to the 3rd to 5th lumbar vertebrae for adult users

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons	1 carton
Shipping carton dimensions	680 x 580 x 670 mm
Gross shipping weight	22 kg
Shipping volume per unit (CBM)	0.264 CBM
Required assembly time	20 minutes
20ft GP container loading quantity	210 units
40ft HC container loading quantity	510 units
Packaging materials	5-ply corrugated carton, expanded polystyrene edge protectors, polyethylene dust bag, hardware pack with hex key and assembly instructions
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private offices	Suitable for senior executive and manager offices, mid-century walnut finish matches premium wood desk and casegood finishes to create a cohesive professional workspace
Boardroom and conference rooms	Appropriate for formal boardroom and conference room seating, slim profile maintains unobstructed sight lines around conference tables, while swivel and tilt function supports multi-hour meetings
Home office studies	Ideal for residential home offices, warm wood finish complements residential interior design while providing commercial-grade ergonomic support for daily work
Co-working shared workspaces	Durable construction and easy-to-clean faux leather upholstery holds up to high-frequency shared use, with classic style that fits a range of co-working design schemes
Design studio and creative workspaces	Decorative bent plywood construction provides a design-forward statement piece for creative offices, architecture firms and design studios prioritizing aesthetic alongside function
Boutique hotel business centers	Suitable for hotel business centers and guest work areas, premium finish enhances guest experience while supporting short-term work use
High-end co-working shared spaces	Durable 50000-cycle PU upholstery and steel structural components hold up to high-frequency shared use, with timeless design that fits flexible co-working office design schemes
Design and creative studio workspaces	Iconic bent plywood construction provides a design-forward statement piece for architecture firms, design studios and creative agencies that prioritize aesthetic alongside functional ergonomics

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020	Office furniture - Office work chairs - Part 1: Dimensions, determination of dimensions
EN 1335-2:2018	Office furniture - Office work chairs - Part 2: Safety requirements
EN 1335-3:2020	Office furniture - Office work chairs - Part 3: Test methods
EN 1022:2018	Domestic furniture - Seating - Determination of stability

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Office Chairs - General purpose

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applicable standards and test results require confirmation
GB/T 10357.2-2013	Applicable standards and test results require confirmation
GB/T 10357.3-2013	Furniture mechanical performance test: chair and stool strength and durability
GB 18584-2001	Applicable standards and test results require confirmation

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable standards and test results require confirmation;
2. GB/T 10357.2-2013: Applicable standards and test results require confirmation;
3. GB/T 10357.3-2013: Furniture mechanical performance test: chair and stool strength and durability;
4. GB 18584-2001: Applicable standards and test results require confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
