1721B-X01

Code：EXLAFSV1
Request supplier quotes

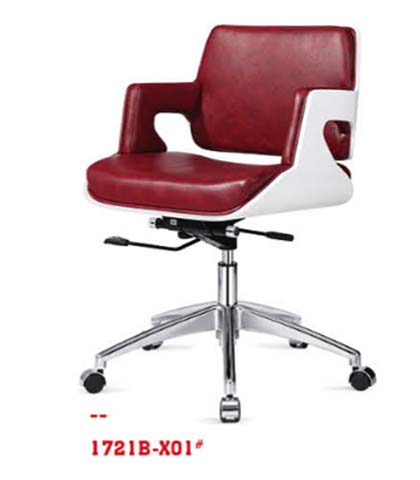

Mid-Back Swivel Conference Office Chair with White Shell and Burgundy Upholstery Key Specifications 2026-08-05 17:15

Popularity: 12
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

1721B-X01

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierMid-Back Swivel Conference Office Chair with White Shell and Burgundy Upholstery，Multi-layer
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (W x D x H)640 x 630 x 950 mm
Seat height adjustment range420 mm to 520 mm
Seat cushion dimensions (W x D)510 x 490 mm
Seat cushion foam thickness65 mm
Backrest dimensions (W x H)500 x 470 mm
Backrest foam thickness55 mm
Armrest height above seat200 mm
Five-star base diameter700 mm
Caster diameter50 mm
Minimum knee clearance under seat120 mm
Gas lift outer diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Recommended user weight capacity150 kg
Chair net weight (without packaging)17 kg
Tilt mechanism lock angle12 degrees
Seat swivel rotation360 degrees
Caster rolling durability40000 cycles
Upholstery abrasion resistance50000 Martindale cycles
Seat foam density45 kg/m³
Back foam density35 kg/m³
Gas lift static load rating250 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsteryBurgundy faux leather (PU) with matching edge stitching
Outer shell frameWhite molded high-impact polypropylene (PP)
Internal seat support board12 mm thick molded plywood
Seat cushion paddingHigh-density polyurethane foam
Backrest paddingMedium-density polyurethane foam
Five-star basePolished die-cast aluminum alloy with 3 mm wall thickness
Gas lift cylinderChrome-plated steel class 3 pneumatic lift
Tilt mechanism2.5 mm thick black powder-coated steel plate
Adjustment leversBlack nylon-coated steel control levers
CastersDual-wheel black nylon with PU tread
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Pneumatic seat height adjustmentDual-lever mechanism adjusts seat height 100 mm via gas lift, activated by left-side lever to align seat height with user desk and leg length
Backrest tilt and lockRight-side lever activates tilt function, allowing 12 degree backward recline with lockable upright position for meeting or task use
360-degree swivel rotationCentral swivel joint enables full 360 degree rotation without position lock, allowing easy access to surrounding work surfaces
Smooth rolling mobilityFive dual-wheel casters allow rolling movement across hard wood, tile and low-pile carpet floors without floor scratching
Integrated fixed armrestsLoop-style armrests integrated into the outer shell provide fixed elbow support at 200 mm above seat surface, no height or width adjustment
Upright posture supportContoured mid-height backrest provides lumbar support without headrest, suited for upright seated positions during meetings or focused desk work
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaged carton count1 unit per carton
Single carton dimensions (L x W x H)680 x 650 x 580 mm
Packaged gross weight per carton20 kg
Packaged volume (CBM) per unit0.256 CBM
Assembly time per unit30 minutes
20ft GP container loading quantity110 units
40ft HQ container loading quantity270 units
Recommended warranty period for commercial use3 years
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive office private workstationsSuitable for placement behind executive desks, matching modern office decor with burgundy and white two-tone styling and ergonomic adjustment for daily desk work
Corporate conference and meeting roomsSuited for boardroom and meeting room seating, with upright posture support and professional appearance for long meetings
Modern coworking open officesAppropriate for open plan coworking spaces, with swivel and rolling mobility enabling flexible desk sharing and easy reconfiguration
Home office study spacesFits residential home office setups, with compact footprint and stylish two-tone appearance suitable for modern home interiors
Guest and visitor seating areasCan be used in manager office guest seating positions, providing comfortable mobile seating for short-duration visitor use
Hospitality executive lounge seatingSuitable for premium hospitality lounge areas, with durable upholstery and polished base creating an upscale modern aesthetic
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020 applicabilityApplies to dimensional and safety requirements for office work chairs, for verifying ergonomic seat dimensions, clearance and adjustment ranges
EN 1335-2:2018 applicabilityApplies to structural safety, strength and stability requirements for office seating, including load and durability performance criteria
EN 1335-3:2009 applicabilityApplies to test methods for verifying compliance with EN 1335 safety requirements
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 applicabilityApplies to general-purpose office chair performance requirements, including static load, cyclic durability, stability and caster rolling tests, recommended as minimum acceptance criteria for commercial installations
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016 applicabilityApplies to size measurement and dimensional tolerance requirements for office seating, for verification of seat height, width, depth and clearance dimensions during incoming inspection
GB/T 10357.2-2013 applicabilityApplies to mechanical performance testing of chair stability, to verify front/side/rear stability under static and dynamic load
GB/T 10357.3-2013 applicabilityApplies to strength and durability testing of chair seats, backs and armrests, including static load, fatigue and impact testing for commercial use
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016 applicability: Applies to size measurement and dimensional tolerance requirements for office seating, for verification of seat height, width, depth and clearance dimensions during incoming inspection;
2. GB/T 10357.2-2013 applicability: Applies to mechanical performance testing of chair stability, to verify front/side/rear stability under static and dynamic load;
3. GB/T 10357.3-2013 applicability: Applies to strength and durability testing of chair seats, backs and armrests, including static load, fatigue and impact testing for commercial use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1721B-X01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1721B-X01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1721B-X01Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The Yiankang model 1721B-X01 is a mid-back swivel conference and task office chair defined by a crisp two-tone visual profile, pring a smooth white molded high-impact polypropylene outer shell that forms integrated fixed loop armrests with rich burgundy PU faux leather upholstery accented by matching edge stitching. Its clean, structured silhouette balances a contoured mid-height backrest with a generously proportioned seat, anchored by a polished die-cast aluminum five-star base fitted with black dual-wheel casters for a polished, contemporary look suited to both professional and residential environments. Construction centers on durable multi-layer support structures, with molded plywood internal support frames for the seat and back, wrapped in high-density polyurethane seat foam and medium-density back foam to deliver consistent, supportive padding. The polished aluminum base connects to a chrome-plated steel class 3 pneumatic gas lift, paired with a powder-coated steel tilt mechanism controlled by black nylon-coated steel levers positioned under the seat. Dual-wheel nylon casters with PU treads are engineered to move smoothly across hard flooring and low-pile carpet without causing surface damage. Functional features are tailored to flexible, comfortable use: a left-side lever controls pneumatic seat height adjustment to align with varying desk heights and user leg lengths, while a right-side lever activates a 12-degree synchro-tilt function with a lockable upright position to support both focused work and relaxed recline during long meetings. Full 360-degree swivel rotation enables easy access to surrounding work surfaces, and the fixed integrated armrests sit at an ergonomic height to support relaxed elbow positioning. The contoured mid-back delivers targeted lumbar support for upright seated postures without an attached headrest. This chair fits a wide range of spaces, including executive private workstations, corporate conference and boardrooms, open-plan coworking offices, modern home study areas, office guest seating zones, and premium hospitality executive lounges. Its compact footprint and stylish two-tone finish complement modern decor schemes across commercial and residential settings. For procurement teams, key considerations include reviewing final supplier material documentation to confirm exact material grades and component certifications before bulk purchase. Logistics planning can account for knocked-down packaging that supports efficient contner loading, with straightforward on-site assembly per unit. The chair carries a recommended commercial use warranty of three years, with durable upholstery rated to withstand frequent dly use in high-traffic environments, making it a versatile option for both long-term dedicated workstations and flexible shared seating layouts.
