1725-X09

Code:G9RPZRV1
Request supplier quotes

Modern Upholstered Swivel Executive Office Chair with Wood Side Panels Key Specifications 2026-08-05 15:54

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

1725-X09

1 active supplier(s) >>

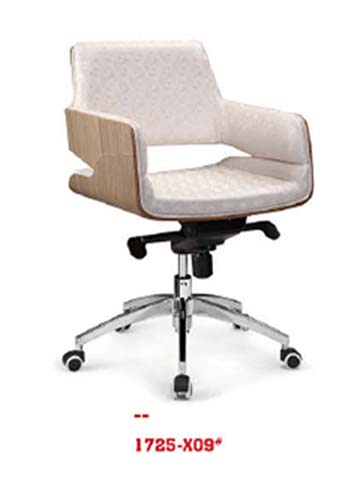

Product supplierModern Upholstered Swivel Executive Office Chair with Wood Side Panels,Multi-layer plywood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (W x D x H)620 x 600 x 990 mm
Seat width490 mm
Seat depth450 mm
Seat height range (lowest to highest)420 mm to 520 mm
Backrest height above seat420 mm
Armrest height above seat210 mm
Five-star base outer diameter640 mm
Caster diameter50 mm
Side panel thickness15 mm
Seat cushion thickness80 mm
Knee clearance under seat (lowest position)160 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net product weight16 kg
Seat foam density45 kg/m³
Back foam density35 kg/m³
Foam rebound rate45%
Gas lift static load rating150 kg
Five-star base static load rating1136 kg
Caster rolling durability100000 cycles
Tilt mechanism durability100000 cycles
Recommended maximum user weight136 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsteryQuilted light off-white faux leather with visible diamond stitching
Outer side panelsBent plywood with light oak veneer finish, dark brown edge trim
Integrated armrestsPadded, upholstered to match seat/back, supported by wood side structure
Internal seat frame12 mm thick molded plywood
Internal back frame10 mm thick molded plywood
Tilt mechanism3 mm thick black powder-coated steel
Gas liftChrome-plated steel Class 3 gas lift, 50 mm outer diameter, 100 mm stroke
Five-star basePolished die-cast aluminum, 2.5 mm wall thickness
CastersBlack nylon twin-wheel casters with PU tread, 50 mm diameter
Upholstery stitching10 stitches per 100 mm seam pitch
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment via right-side lever, 100 mm total vertical stroke
360-degree swivel rotationFull 360-degree horizontal rotation enabled by central swivel joint between seat and gas lift
Tilt function with tension adjustmentRearward tilt of 12 degrees from upright position, adjustable tilt tension via front knob to match user weight
Tilt lockLockable upright position via left-side lever for fixed seating posture
Rolling mobilitySmooth rolling on all five casters, suitable for hard wood, tile and low-pile carpet surfaces
Fixed integrated armrestsPadded armrests fixed to wood side panels, providing consistent arm support with no height or width adjustment
Weight-activated tilt supportTilt resistance automatically adjusts partially with user weight for balanced recline
Synchro-tilt seat trackingSeat tilts 5 degrees backward in coordination with backrest tilt to maintain consistent leg contact
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officeSuitable for senior staff workspaces, providing professional appearance and ergonomic support for 8 hours daily use
Conference and meeting roomsAppropriate for boardroom and meeting spaces, with fixed armrests and polished finish for formal meeting environments
Home office workspaceIdeal for residential home offices, with low-profile refined design that complements modern residential interiors
Boutique coworking spacesSuitable for premium coworking private offices and dedicated desk areas, balancing style and functional adjustability
Consultation and client seatingUsable for client-facing areas such as design studios, legal offices and consulting firms, conveying professional approachable aesthetic
Formal conference and meeting roomsAppropriate for boardroom and meeting spaces, with fixed armrests and refined finish for professional meeting environments
Premium boutique coworking spacesSuitable for premium coworking private offices and dedicated desk areas, balancing style and functional adjustability for diverse user groups
Client-facing consultation areasUsable for client-facing spaces such as design studios, legal offices and consulting firms, conveying a professional, approachable aesthetic
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applicable European standard for office work chairs, defining dimensional and safety requirements for seating used in office environments
EN 1335-2:2018Applicable European standard for office chair safety, strength and durability requirements for structural components
EN 1335-3:2009Applicable European standard for office chair test methods to validate structural and functional performance
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017Applicable North American standard for general-purpose office chairs, defining static load, durability and stability test requirements
Recommended maximum user weight136 kg
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016Applicable standards and test results require confirmation
GB/T 24821-2009Applicable standard for office swivel chairs, to verify stability, strength and durability of base, gas lift and mechanism
GB 18584-2001Applicable standard for formaldehyde and VOC emission limits for wood and upholstered furniture components, to confirm indoor air quality compliance
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable standards and test results require confirmation;
2. GB/T 24821-2009: Applicable standard for office swivel chairs, to verify stability, strength and durability of base, gas lift and mechanism;
3. GB 18584-2001: Applicable standard for formaldehyde and VOC emission limits for wood and upholstered furniture components, to confirm indoor air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1725-X09

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1725-X09

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1725-X09Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The Modern Upholstered Swivel Executive Office Chair with Wood Side Panels (model 1725-X09, unbranded) presents a refined, balanced silhouette that blends soft upholstered forms with structured natural wood accents. Quilted light off-white faux leather with diamond stitching covers the padded seat and contoured backrest, flanked by bent plywood side panels finished in light oak veneer with dark brown edge trim. Padded, upholstered armrests integrate directly with these wood side panels, creating a cohesive, streamlined profile anchored by a polished aluminum five-star base. Overall proportions follow standard mid-back executive chair dimensions, with a compact footprint that avoids visual bulk in both open and enclosed spaces. Construction provides supportive internal molded plywood frames for the seat and back with a black powder-coated steel tilt mechanism, chrome-plated steel gas lift, and black nylon twin-wheel casters with PU tread. Seat and backrest padding uses high-resilience foam sized for medium-firm, long-wear support, with a dedicated lumbar support zone built into the backrest structure. Functional features are tailored for flexible daily use: pneumatic seat height adjustment operates via a right-side lever, with full 360-degree swivel rotation for easy reach across work surfaces. The synchro-tilt mechanism coordinates 5 degrees of backward seat tilt with 12 degrees of backrest recline, with adjustable tension controlled via a front under-seat knob, partial weight-activated resistance for balanced recline, and a left-side lever to lock the chair in an upright position. The five casters roll smoothly across hardwood, tile, and low-pile carpet surfaces. Fixed integrated armrests deliver consistent upper body support without protruding adjustment hardware. This chair fits a wide range of commercial and residential settings, including private executive offices, formal conference and boardrooms, residential home offices, premium boutique coworking spaces, and client-facing consultation areas such as design studios, legal offices, and consulting firms. Its light wood and neutral upholstery palette complements both mid-century modern and contemporary interior schemes, while its durable build supports both individual daily use and multi-user shared environments. For procurement planning, note the chair ships knocked down in two cartons, with reference assembly time of 40 minutes per unit. Container loading references support bulk order planning, and purchasers should confirm material grade, coating specifications, and exact component details directly with suppliers prior to final order placement, as some finish and thickness details are not confirmed via supplier documentation. The chair supports a maximum recommended user weight aligned with general office seating load standards, making it suitable for broad user groups across intended applications.
