OC-BW2208-MID

Code：GJ6WN1V1
Request supplier quotes

Mid-Century Style Swivel Upholstered Office Task Chair with Bentwood Shell Key Specifications 2026-08-05 17:15

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OC-BW2208-MID

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierMid-Century Style Swivel Upholstered Office Task Chair with Bentwood Shell，Multi-layered Bentwood
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (W x D x H)600 x 620 x 980 mm
Seat width490 mm
Seat depth450 mm
Seat height range (floor to seat top)510 mm
Backrest height (seat top to back top)460 mm
Backrest width460 mm
5-star base diameter640 mm
Caster wheel diameter50 mm
Gas lift outer column diameter50 mm
Seat cushion thickness60 mm
Bentwood shell edge thickness12 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net chair weight14 kg
Recommended user weight capacity120 kg
Foam density (seat cushion)45 kg/m³
Foam density (backrest)35 kg/m³
Fabric/upholstery abrasion resistance50000 cycles
Base static load rating500 kg
Caster rolling durability100000 cycles
Available finish options4
Suggested warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsterySmooth matte faux leather (polyurethane surface)
Outer back shellCurved bent plywood with walnut/white/light gray finish
Seat and back cushion coreMolded high-resilience polyurethane foam
Height adjustment gas liftChrome-plated steel Class 3 gas lift
5-star basePolished die-cast aluminum alloy with bright chrome finish
Caster wheelsBlack TPE (thermoplastic elastomer) twin-wheel casters with chrome housing
Height adjustment leverBlack reinforced nylon paddle lever
Seat mounting plate2.5mm thick powder-coated steel
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic 100mm vertical height adjustment activated by right-side paddle lever, locks at any position within 510 mm seat height range
360-degree swivel rotationFull 360-degree horizontal rotation around the central gas lift column for multi-directional access
Smooth caster mobilityDual-wheel casters allow free rolling on hard floor surfaces, no brake mechanism fitted
Fixed contoured back supportCurved mid-height backrest with fixed lumbar contour, no tilt or recline adjustment, aligned for upright working posture
Armless design clearanceArmless construction allows full lateral movement and tucking under standard 730mm height office desks when lowered
Integrated bentwood side supportCurved bentwood shell wraps around seat and back sides to provide subtle lateral body support during seated tasks
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages1 per chair
Shipping carton dimensions670 x 660 x 460 mm
Gross shipping weight per unit17 kg
Cubic volume per unit0.204 CBM
Assembly time per unit20 minutes
20ft GP container loading quantity130 units
40ft HQ container loading quantity330 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Open plan office workstationsSuitable for short-to-medium duration desk work at standard office workstations, compact footprint and armless design fits standard desk modules
Home office environmentsMid-century aesthetic matches residential decor, compact size works for small home office spaces and multi-purpose rooms
Meeting and conference roomsUniform color option sets are suitable for conference room seating, swivel function supports collaborative discussion around meeting tables
Reception and guest areasStylish upholstered finish provides comfortable guest seating in reception, waiting or visitor areas without sacrificing professional appearance
Co-working flexible spacesLightweight caster design allows easy repositioning in flexible shared work environments, durable upholstery withstands high-traffic shared use
Vanity or study desk useAdjustable height range works for residential vanity tables, study desks or craft work surfaces where compact, stylish seating is required
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applies to dimensional, safety and strength requirements for office work chairs, as baseline for European market acceptance
EN 1335-2:2009Applies to safety performance test methods for office task chairs, including stability, load and durability testing
EN 1021-1:2014Applies to upholstered furniture flammability (cigarette ignition resistance), minimum fire safety requirement for commercial office installations
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 Clause 5Applies to caster and base durability testing, including 100,000 cycle caster roll test and base static load test
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016Applies to size measurement of office seating, including critical dimensions for seat height, depth, width and backrest dimensions for procurement acceptance
GB/T 35607-2017Applies to limits of harmful substances in upholstered furniture materials, required for formaldehyde, VOC and heavy metal content verification
GB 28007-2011Applies to structural safety requirements for office swivel chairs, including stability, static load and durability performance
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to size measurement of office seating, including critical dimensions for seat height, depth, width and backrest dimensions for procurement acceptance;
2. GB/T 35607-2017: Applies to limits of harmful substances in upholstered furniture materials, required for formaldehyde, VOC and heavy metal content verification;
3. GB 28007-2011: Applies to structural safety requirements for office swivel chairs, including stability, static load and durability performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-BW2208-MID

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-BW2208-MID

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-BW2208-MIDOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

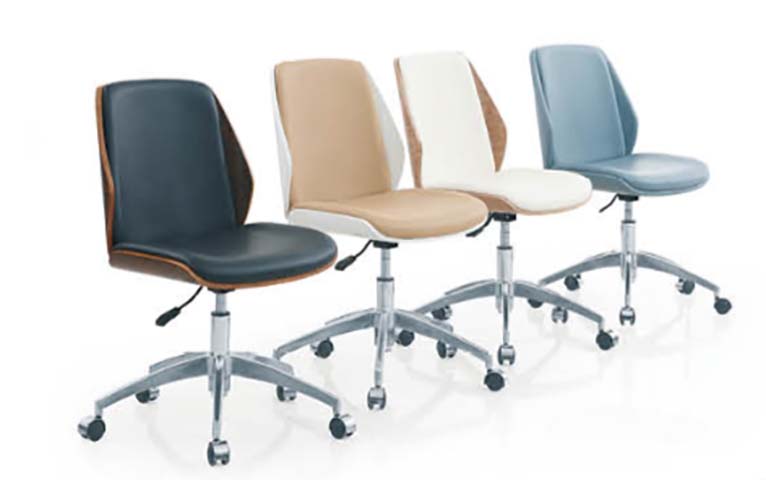

The Yiankang OC-BW2208-MID is a mid-century style swivel upholstered office task chair defined by its signature curved multi-layered bentwood shell that wraps seamlessly around the seat and back to deliver subtle lateral support, paired with a polished chrome die-cast aluminum five-star base for a streamlined retro silhouette. Offered in four curated matte faux leather colorways—dark charcoal, warm beige, off-white, and dusty light blue—each variant features matching bentwood shell trim available in walnut, white, or light gray finishes to coordinate with diverse interior palettes. The armless, mid-back profile balances compact proportions with structured support, featuring a padded seat with high-resilience polyurethane foam and a contoured back with medium-density molded foam shaped to cradle the lumbar region for upright working postures. Its frame integrates robust structural components including a powder-coated steel seat mounting plate, cold-rolled steel tilt mechanism plate, chrome-plated Class 3 gas lift, and black TPE twin-wheel casters optimized for hard floor surfaces. Functional features include 100mm of pneumatic seat height adjustment activated by a right-side reinforced nylon paddle lever, full 360-degree swivel rotation, and smooth multidirectional caster mobility, with a fixed contoured backrest designed to support consistent seated positioning without complex recline adjustments. This chair fits a broad range of commercial and residential settings: it serves short-to-medium duration desk work in open-plan office workstations, complements residential decor for compact home offices, presents a polished uniform look for conference and meeting rooms, offers comfortable stylish guest seating in reception areas, supports easy reconfiguration in high-traffic co-working spaces, and pairs neatly with residential vanities or study desks. For procurement teams, key considerations include verifying final material specifications against supplier bills of materials, noting the knock-down flat-pack structure that allows efficient bulk shipping and quick on-site assembly, factoring in the standard commercial warranty covering structural and mechanism defects for non-heavy use, and aligning orders with available colorways to match existing interior design schemes for consistent space styling.
