EXE-OC-TT01

Code：HV3RXPV1
Request supplier quotes

Two-Tone High Back Executive Office Swivel Chair Key Specifications 2026-08-06 19:54

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EXE-OC-TT01

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions670 x 700 x 1070 mm
Seat width520 mm
Seat depth490 mm
Seat height range520 mm
Backrest height660 mm
Backrest width510 mm
Armrest height above seat210 mm
Five-star base diameter700 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight22 kg
Maximum user weight capacity150 kg
Back static load capacity75 kg
Caster rolling durability100000 cycles
Gas lift cycle rating100000 cycles
Foam density seat cushion45 kg/m³
Foam density backrest35 kg/m³
Upholstery abrasion resistance50000 Martindale cycles
Seat cushion foam density45 kg/m³
Backrest foam density35 kg/m³
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Inner seat and armrest upholsteryCream faux leather with contrast edge stitching
Outer armrest side panelsDark brown faux leather with matching edge stitching
Backrest lumbar insertVertically pleated cream upholstery over padding
Internal seat frame12 mm thick molded plywood with supportive webbing
Five-star basePolished die-cast aluminum with 2 mm wall thickness
Gas liftChrome-plated steel, Class 3 safety rating with 100 mm adjustment stroke
CastersBlack PU dual-wheel casters with metal mounting stems
Seat mechanism chassis2.5 mm thick steel plate tilt mechanism with tension adjustment
Edge trim and pipingMatching cream stitching with 8 mm stitch pitch
Cushion paddingHigh resilience polyurethane foam, 80 mm thick on seat, 60 mm thick on back
Seat contact surface upholsteryCream PU faux leather, 1.2 mm thickness, with matching light-colored contrast edge stitching
Armrest outer side panelsDark brown PU faux leather, 1.2 mm thickness, with matching dark edge stitching
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic adjustment via right-side lever, 100 mm travel to match standard desk heights
360-degree swivel rotationFull rotation enabled by central swivel joint between gas lift and seat chassis
Synchro-tilt reclineBackrest tilts in sync with seat at 1:2.5 ratio, up to 15 degree recline with locking position
Tilt tension adjustmentRotary knob under seat adjusts recline resistance to match user weight
Mobility on castersSmooth rolling on 5 casters for movement across hard wood and low-pile carpet flooring
Integrated wrap-around armrestsCurved upholstered armrests connect to backrest shell, providing full forearm support at fixed ergonomic height
Contoured lumbar supportPadded pleated lumbar section provides built-in lower back support without separate adjustment
Floor mobilitySmooth omnidirectional rolling on 5 evenly spaced casters, suitable for movement across hardwood, tile and 8 mm pile carpet flooring
Contoured built-in lumbar supportPadded vertically pleated lumbar section provides 30 mm of protruding lower back support without separate manual adjustment
Backrest cutout ventilationCurved open cutout between lumbar section and seat rear allows air circulation to reduce back heat buildup during extended use
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of packages1 unit
Packaging carton dimensions750 x 650 x 650 mm
Gross packaged weight26 kg
Packaging volume per unit0.32 CBM
Assembly time per unit20 minutes
20ft GP container loading quantity88 units
40ft HQ container loading quantity218 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private office spacesFits formal management offices with matching executive desks, providing professional appearance and full-shift comfort
Corporate boardroom and conference seatingProvides consistent formal aesthetic and swivel mobility for meeting durations up to 3 hours, arranged around conference tables of matching height
Hotel business center workstationsSuitable for premium hospitality business areas requiring durable, professional guest seating
High-end home office setupsComplements modern residential workspaces with soft curved lines and neutral two-tone palette
Client reception and consultation areasProvides comfortable guest seating with fixed arm support for extended visits
Premium hotel business center workstationsSuitable for 5star hospitality business areas requiring durable, professional guest seating with easy floor mobility
Executive client reception and consultation areasProvides comfortable guest seating with fixed wrap-around arm support for visits up to 2 hours, paired with side tables in manager meeting zones
Private studio and creative office spacesServes as premium seating for design studio principals and senior creative staff, combining mid-century modern styling with functional office ergonomics
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-12020: Office furniture - Office work chairs - Part 1: Dimensions, applicable for ergonomic dimensional verification
EN 1335-22018: Office furniture - Office work chairs - Part 2: Safety requirements, applicable for structural safety acceptance
EN 1335-32020: Office furniture - Office work chairs - Part 3: Test methods, applicable for durability performance verification
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

BIFMA X5.1-2017General-Purpose Office Chairs - Tests, applicable for structural durability and load performance acceptance for commercial office deployment
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016General technical requirements for furniture, tables and chairs, applicable for dimensional and structural stability acceptance
GB 28007-2011Safety of office furniture, office chairs, applicable for structural safety and hazardous material limit acceptance
GB/T 19995.1-2005Upholstered furniture, test methods for evaluating upholstery fabric durability, applicable for upholstery wear performance acceptance
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: General technical requirements for furniture, tables and chairs, applicable for dimensional and structural stability acceptance;
2. GB 28007-2011: Safety of office furniture, office chairs, applicable for structural safety and hazardous material limit acceptance;
3. GB/T 19995.1-2005: Upholstered furniture, test methods for evaluating upholstery fabric durability, applicable for upholstery wear performance acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXE-OC-TT01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXE-OC-TT01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXE-OC-TT01Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

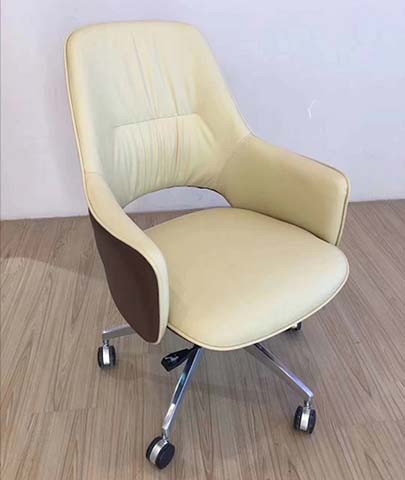

The Yiankang EXE-OC-TT01 Two-Tone High Back Executive Office Swivel Chair presents a refined, professional silhouette defined by its balanced two-tone upholstery and structured high-back form. Its visual design pairs cream-hued seat and inner backrest surfaces with dark brown outer armrest side panels, accented by precise matching edge stitching that outlines every upholstered seam. A vertically pleated, contoured lumbar insert sits in the lower backrest, paired with a subtle open cutout between the lumbar zone and seat rear for visual lightness and air circulation. Integrated wrap-around curved armrests flow seamlessly from the backrest shell to create a cohesive, streamlined layout supported by a polished die-cast aluminum five-star base fitted with black dual-wheel casters. Constructed for long-term commercial and residential use, the chair uses multiple layers of high-resilience polyurethane foam in its seat and backrest, with denser foam in the seat to retain shape through full-shift use, topped with PU faux leather upholstery selected for abrasion resistance. Its internal frame incorporates molded plywood with supportive webbing, paired with a steel plate tilt mechanism, chrome-plated steel gas lift, and durable PU casters suitable for both hard flooring and low-pile carpet. Core functional features include 360-degree swivel rotation, pneumatic seat height adjustment, synchro-tilt recline with lock positions, adjustable tilt tension to accommodate different user weights, and built-in contoured lumbar support that requires no manual adjustment, eliminating the need for frequent user reconfiguration. This chair is well suited for a range of settings, including executive private offices, corporate boardrooms and conference spaces, premium hotel business centers, high-end home offices, client reception and consultation zones, and private creative studios where curated aesthetic and functional comfort are equally prioritized. For procurement planning, teams should note the chair ships in knocked-down packaging, with straightforward assembly required on site. The upholstery material grade, internal structural specifications, and final packaging configurations should be confirmed directly with the supplier prior to bulk order placement to align with project-specific durability and timeline requirements. The chair’s polished metal base and neutral two-tone palette coordinate easily with a wide range of desk and conference table finishes for cohesive space design.
