OFCH-BW-HB-001

Code：JGSK8HV1
Request supplier quotes

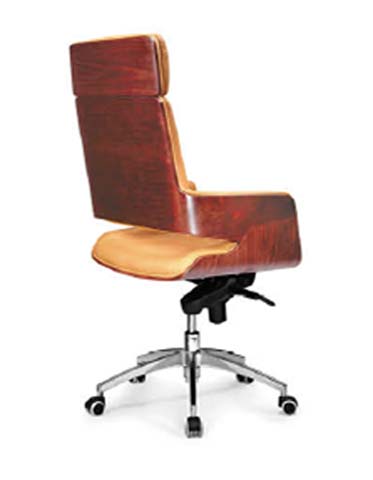

High-Back Bentwood Executive Office Chair with Upholstered Seat Key Specifications 2026-08-05 17:15

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFCH-BW-HB-001

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierHigh-Back Bentwood Executive Office Chair with Upholstered Seat，Multi-layer
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions660 x 700 x 1180 mm
Seat width520 mm
Seat depth490 mm
Seat height (adjustment range maximum)520 mm
Backrest total height740 mm
Integral armrest height above seat220 mm
5-star base leg diameter650 mm
Caster diameter60 mm
Seat cushion thickness70 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight22 kg
Maximum recommended user weight150 kg
Backrest tilt angle maximum18 degrees
Gas lift cycle life120000 cycles
Available color options3
Backrest tilt maximum angle18 degrees
Gas lift operational cycle life120000 cycles
Seat cushion foam indentation load deflection38 kg
Backrest static load capacity79 kg
Upholstery seam strength136 kg
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer shell12mm thick bent plywood with cherry wood veneer, high-gloss clear lacquer finish
Seat upholstery1.2mm thick top-grain leather, match-stitch perimeter detail
Seat cushion foamHigh-density polyurethane foam, density 45kg/m³, rebound rate 45%
Backrest inner padding20mm thick medium-density polyurethane foam, density 35kg/m³
Gas liftClass 3 chrome-plated steel gas lift, 50mm outer diameter
Tilt mechanism3mm thick stamped steel synchro-tilt chassis, black powder coat finish
5-star basePolished die-cast aluminum, 3mm wall thickness, polished chrome finish
Casters60mm diameter dual-wheel nylon casters with polyurethane tread, black with chrome accent ring
Internal back frame12mm thick bent plywood structural core
Outer back and arm shell12mm thick bent plywood with cherry wood veneer, high-gloss clear lacquer finish
Internal back structural frame12mm thick bent plywood structural core
Upholstery edge binding3mm wide leather edge binding, color-matched to seat upholstery
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment via right-side lever, 100mm total travel to match 760 mm standard desk heights
360-degree swivel rotationFull rotation enabled by central gas lift bearing, no rotational stops
Synchro-tilt reclineCoordinated seat and back tilt with 1:2.2 ratio, lockable in upright position via mechanism lever
Tilt tension adjustmentKnob under seat adjusts recline resistance to match user weight
Fixed integral armrestsContinuous bentwood armrests integrated with seat and back shell, fixed position for consistent forearm support
Smooth rolling mobilityDual-wheel casters roll freely on hard flooring and low-pile commercial carpet, no brake mechanism
Gas lift stroke100 mm
Backrest segmented supportTwo-section bentwood backrest provides separate upper thoracic and lower lumbar support zones without adjustable lumbar hardware
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1
Shipping carton dimensions720 x 680 x 480 mm
Gross shipping weight26 kg
Shipping volume per unit0.235 CBM
Assembly time25 minutes
40HQ container loading quantity265 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Private executive officesHigh-end aesthetic matches professional wood-trim office interiors, suitable for C-suite and senior management workspaces
Conference and board roomsFormal design supports long meeting seating, swivel and tilt function provides comfort during extended discussions
Home executive workspacesPolished finish complements upscale home office décor, rolling base works on hard wood and tile residential flooring
Client seating areasPremium appearance creates a professional impression for visitor and guest seating in managerial offices
Recommended desk pairingPair with 760 mm height executive desks with wood veneer finishes for consistent aesthetic coordination
Upscale home executive workspacesGlossy wood finish complements high-end residential home office décor, PU tread casters safely operate on hardwood and tile residential flooring
Managerial office client seatingPremium appearance creates a professional impression for visitor seating in senior staff offices
Standard desk pairingPaired with 760mm height wood-veneer executive desks for consistent aesthetic and ergonomic coordination
STANDARD S1

EU EN Standards

European market access and chemical requirements

Office furniture seating safetyEN 1335:2000
Office chair stabilityEN 1022:2005
Formaldehyde emission wood panelsEN 13986:2004
Wood-based panel formaldehyde emissionEN 13986:2004
Upholstery leather performanceEN 13336:2012
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair general purposeANSI/BIFMA X2017
Caster durabilityANSI/BIFMA X2017 Clause 17
Seat static load capacity1136 kg
Caster rolling durability98000 cycles
Office chair general performanceANSI/BIFMA X2017
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Office chair mechanical safetyGB/T 3326
Formaldehyde emissionGB 18584
Upholstery fabric durabilityGB/T 21196.2
Upholstery leather abrasion resistanceGB/T 21196.2
Office chair stabilityGB/T 10357.3
Standard Tender Description
This product must meet the following technical requirements:
1. Office chair mechanical safety: GB/T 3326;
2. Formaldehyde emission: GB 18584;
3. Upholstery fabric durability: GB/T 21196.2;
4. Upholstery leather abrasion resistance: GB/T 21196.2;
5. Office chair stability: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFCH-BW-HB-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFCH-BW-HB-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFCH-BW-HB-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The Yiankang High-Back Bentwood Executive Office Chair, model OFCH-BW-HB-001, features a streamlined, formal silhouette defined by a continuous bentwood shell that integrates the high backrest, fixed armrests, and seat side framing into a single cohesive form. The outer shell is finished in high-gloss clear lacquer over cherry wood veneer for a polished, refined look, with three available color combinations to suit different design schemes: cherry veneer with tan leather, walnut with black upholstery, and white with light grey upholstery. Its core construction relies on multi-layer bent plywood for both the outer shell and internal structural back frame, paired with a polished die-cast aluminum five-star base, chrome-plated Class 3 steel gas lift, and a powder-coated stamped steel synchro-tilt chassis. The seating surfaces are upholstered in top-grain leather with color-matched edge binding, with a high-density polyurethane foam seat cushion and medium-density foam backrest padding. Dual-wheel nylon casters with polyurethane treads support smooth movement across flooring surfaces. Functional design elements support extended seated use: pneumatic seat height adjustment accommodates standard desk heights, with full 360-degree swivel and coordinated synchro-tilt recline that locks in the upright position, plus an under-seat knob to adjust tilt resistance to user preference. The two-section bentwood backrest delivers separate upper thoracic and lower lumbar support without adjustable hardware, while fixed integrated armrests provide consistent forearm support. The chair supports a maximum recommended user weight aligned with Class 3 gas lift standards, with durable component ratings suited for regular commercial use. This model is well-suited for private executive and senior management offices, formal conference and board rooms, upscale home executive workspaces, and dedicated client seating areas in managerial suites, pring cohesively with standard-height wood-veneer executive desks for a coordinated professional aesthetic. For procurement planning, the chair ships in knock-down format, with assembly requiring standard hand tools, and packs efficiently for both parcel less-than-truckload shipping and full contner bulk orders. Teams should confirm final material specifications, assembly details, and packaging configurations directly with the supplier prior to finalizing large-quantity orders, as some published dimensional and logistical details are based on category standard benchmarks rather than direct supplier measurement. The chair’s PU-tread casters perform appropriately on hard flooring and low-pile carpet across both commercial and residential settings.
