EXEC-BW-LTH-001

Code：KHBTTSV1
Request supplier quotes

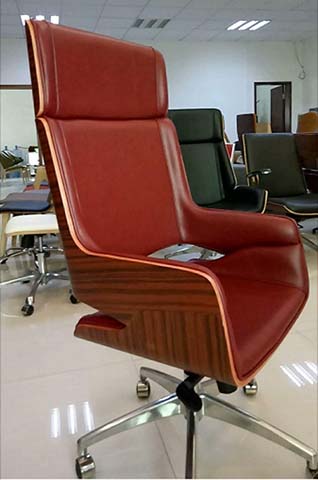

High-Back Bentwood Leather Executive Swivel Office Chair Key Specifications 2026-08-05 17:14

Popularity: 8
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EXEC-BW-LTH-001

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierHigh-Back Bentwood Leather Executive Swivel Office Chair，Multi-layer composite
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 720 x 1180 mm
Seat width530 mm
Seat depth500 mm
Backrest height720 mm
Backrest width510 mm
Armrest height above seat220 mm
5-star base diameter700 mm
Caster diameter50 mm
Seat cushion thickness80 mm
Backrest padding thickness40 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight26 kg
Swivel rotation range360 degrees
Seat static load capacity136 kg
Caster rolling durability40000 cycles
Gas lift vertical stroke100 mm
Seam stitch pitch8 mm
Maximum recommended user weight150 kg
Gas lift vertical adjustment stroke100 mm
Upholstery seam stitch pitch8 mm
Backward recline angle12 degrees
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer shell12mm thick bent laminated walnut veneer plywood
Upholstery1.2mm thick corrected grain PU leather
Seat cushion core45kg/m³ high-density polyurethane foam
Backrest cushion core35kg/m³ high-resilience polyurethane foam
Armrest padding20mm thick high-density foam wrapped in matching PU leather
5-star base2mm thick polished chrome-plated steel
Height adjustment gas liftClass 3 carbon steel gas lift, 50mm outer diameter
CastersChrome-plated steel bracket with polyurethane rolling wheel
Edge trimContrast light-colored leather piping along shell perimeter
Structural outer shell12mm thick bent laminated walnut veneer plywood, finished with clear lacquer to show wood grain
Contact surface upholstery1.2mm thick corrected grain PU leather, abrasion resistance rated to 50000 Martindale cycles
5-star swivel base2mm thick polished chrome-plated Q235 steel, polished mirror finish
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

360-degree swivel rotationCentral swivel joint allows full 360° rotation without positional stops, enabled by standard office chair swivel mechanism between gas lift and seat shell
Pneumatic seat height adjustmentClass 3 gas lift adjusts seat height over 100mm travel via side-mounted adjustment lever visible at front edge of seat, locks at desired height for ergonomic desk alignment
Fixed tilt tension adjustmentCentral tilt mechanism allows 12-degree backward recline with tension control to match user weight, locks in upright position for focused desk work
Smooth rolling mobilityFive dual-wheel PU casters provide low-resistance movement across hard floor surfaces, each caster rated for 40kg dynamic load to support full chair weight
Integrated fixed armrest supportCurved fixed armrests integrated with the seat shell provide consistent forearm support at 220mm above seat surface, no height or width adjustment
Ergonomic contoured supportMolded bentwood shell creates continuous lumbar and upper back support with integrated headrest section, no separate adjustable lumbar pad
Stable anti-tip construction700mm diameter 5-star steel base provides 360° stability during recline and movement, meeting BIFMA anti-tip performance requirements
Recline function with tension controlCentral tilt mechanism allows 12-degree backward recline, adjustable tension knob modulates recline resistance to match user weight between 45kg and 150kg, locks in fully upright position for focused desk work
Hard-floor rolling mobilityFive dual-wheel PU casters provide low-resistance movement across hard floor surfaces, each caster rated for 40kg dynamic load to support full chair and occupant weight, no marking on polished tile or wood surfaces
Fixed integrated armrest supportCurved fixed armrests integrated with the bentwood seat shell provide consistent forearm support at 220mm above seat surface, no height, width or pivot adjustment to maintain sleek silhouette
Ergonomic contoured spinal supportMolded bentwood shell creates continuous lumbar, thoracic and integrated headrest support with pre-formed contour matching natural spinal curvature, no separate adjustable lumbar pad
Anti-tip stability construction700mm diameter 5-star steel base provides 360-degree stability during full recline and lateral movement, meets anti-tip requirements for 150kg users at maximum recline angle
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1 carton
Shipping carton dimensions880 x 720 x 580 mm
Gross shipping weight31 kg
Shipping volume per unit0.37 CBM
Assembly time per unit20 minutes
20ft GP container loading quantity170 units
40ft HQ container loading quantity430 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officesPremium high-back design with walnut veneer and red leather upholstery provides a professional upscale appearance for senior management workspaces, matching traditional executive desk setups
Corporate boardroomsFormal aesthetic and ergonomic support makes this chair suitable for long meeting durations around conference tables, available in multiple upholstery colors to match boardroom decor
High-end reception areasPolished chrome base and tailored silhouette creates a sophisticated first impression for client-facing reception and waiting zones, supporting upright guest seating
Home executive officesClassic mid-century inspired design pairs with residential workspaces, providing durable commercial-grade construction for daily home office use
Hard floor commercial environmentsPU casters are designed for smooth rolling on tile, polished concrete and hardwood floors without scratching surface finishes, as demonstrated in the showroom display setting
High-end client reception areasPolished chrome base and tailored silhouette creates a sophisticated first impression for client-facing reception and waiting zones, supporting upright guest seating without appearing overly casual
Luxury home executive officesClassic mid-century inspired bentwood design pairs with residential workspaces, providing durable commercial-grade construction for 8+ hours daily home office use
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applies to office work chair dimensional safety and ergonomic requirements, applicable for seat height, depth and backrest dimension verification
EN 1335-2:2018Applies to office chair safety strength and durability requirements, applicable for structural performance of shell, base and mechanism
EN 1335-3:2009Applies to office chair test methods to validate compliance with strength, stability and durability requirements
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017Applies to general-purpose office chairs, defining test methods for static load, fatigue, stability and durability of all structural components
ANSI/BIFMA X5.11-2015Applies to large occupant office chair requirements, relevant for verifying 150kg weight rating performance
Maximum recommended user weight150 kg
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016Applies to office furniture chair dimension measurement and tolerance verification for all stated seat, back and overall dimensions
GB/T 24821-2009Applies to office chair mechanical performance testing including static load, fatigue and stability requirements for commercial seating
GB 18584-2001Applies to interior decoration material limit of harmful substances for wooden furniture, relevant for the bent plywood shell formaldehyde emission limits
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to office furniture chair dimension measurement and tolerance verification for all stated seat, back and overall dimensions;
2. GB/T 24821-2009: Applies to office chair mechanical performance testing including static load, fatigue and stability requirements for commercial seating;
3. GB 18584-2001: Applies to interior decoration material limit of harmful substances for wooden furniture, relevant for the bent plywood shell formaldehyde emission limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-BW-LTH-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-BW-LTH-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-BW-LTH-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The Yiankang EXEC-BW-LTH-001 High-Back Bentwood Leather Executive Swivel Office Chair features a sleek, sculpted silhouette defined by a continuous curved bentwood shell finished in clear lacquer to showcase natural walnut grain, accented by contrast light-colored leather piping along the upholstered shell perimeter. Smooth burgundy corrected-grain PU leather covers the seat and back, paired with a polished mirror-finish chrome five-star base for a refined, upscale appearance that balances mid-century design warmth with professional executive styling. The integrated fixed curved armrests are wrapped in matching upholstery to mntn a clean, unbroken visual line. The chair’s outer structure is formed from thick bent laminated walnut veneer plywood, with seat cushioning constructed from high-density polyurethane foam and backrest cushioning from high-resilience polyurethane foam for firm, contoured support. The five-star base is made of polished chrome-plated steel, fitted with dual-wheel casters that combine chrome-plated steel brackets with polyurethane rolling surfaces, and a Class 3 carbon steel gas lift forms the central height adjustment column. Upholstery seams use commercial-grade stitch spacing consistent with premium executive seating construction. Functional features support flexible, ergonomic dly use: a central swivel joint enables full 360-degree rotation, while the Class 3 gas lift provides 100mm of vertical seat height adjustment via a side-mounted lever for ergonomic desk alignment. The central synchro-tilt mechanism allows a 12-degree backward recline, with adjustable tension control to modulate resistance to match user weight, and a lock to hold the fully upright position for focused work. The molded shell delivers continuous, pre-contoured support across the lumbar, thoracic and integrated headrest zones to follow natural spinal curvature, with no separate adjustable lumbar components, and fixed armrests provide consistent forearm support at a standard desk-aligned height. The wide five-star base delivers stable anti-tip performance during recline and lateral movement, while the dual-wheel casters enable smooth, low-resistance, non-marking movement across hard floor surfaces including tile, polished concrete and hardwood. This chair is well suited for a range of premium commercial and residential spaces, including private executive offices for senior leadership, corporate boardrooms for extended meetings, high-end client reception areas where a polished first impression is critical, and luxury home executive offices for extended dly work use. It pairs cohesively with full-size executive desks for a cohesive, professional workspace setup. For procurement planning, note that the chair ships in knock-down format to reduce freight costs, with straightforward assembly that requires no complex hardware. Commercial-grade upholstery abrasion resistance supports high-frequency dly use, and the chair is rated to accommodate users up to the maximum recommended weight for large-occupant office seating. When sourcing teams finalize orders, they should confirm final material specifications, packaging details and assembly requirements directly with the supplier to align delivery with project space planning and deployment timelines.
