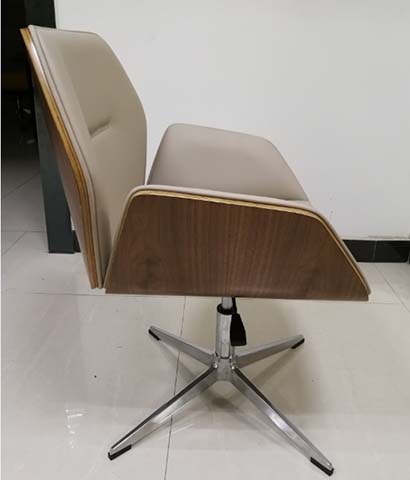

Bentwood Shell Upholstered Height-Adjustable Swivel Conference Chair - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions	660 x 680 x 980 mm
Seat height from floor	480 mm
Seat cushion depth	480 mm
Seat cushion width	500 mm
Backrest height above seat	500 mm
Armrest height above seat	200 mm
5-star base diameter	640 mm
Bentwood shell thickness	12 mm
Gas lift outer tube diameter	50 mm
Upholstery foam thickness (seat center)	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Assembled product weight	18 kg
Maximum static user load capacity	150 kg
Seat cushion foam density	45 kg/m³
Seat cushion foam thickness	60 mm
Backrest foam thickness	40 mm
Upholstery abrasion resistance (Martindale)	50000 cycles
Gas lift height adjustment stroke	100 mm
Seam stitch pitch	8 stitches per 30mm
Floor pad shear strength	50 kg per pad
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholstery	Light beige matte faux leather (PU)
Outer shell panels	Walnut wood veneer bent plywood
Decorative edge trim	Thin polished gold-tone metallic strip
Center support column	Polished chrome-plated steel
5-star base legs	Polished die-cast aluminum
Height adjustment lever	Black injection-molded ABS
Base floor contact pads	Black non-slip rubber
Internal support frame	1.5mm thick steel plate
4-star base legs	Polished die-cast aluminum
Gas lift internal cylinder	Class 3 nitrogen-filled steel
Upholstery underlayment	10mm thick hardboard
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

360-degree swivel rotation	Full 360° horizontal rotation enabled by central swivel mechanism, allows easy position change without moving the base
Pneumatic seat height adjustment	100mm vertical adjustment activated by side lever, locks at selected height to match desk and user height
Fixed integrated armrests	Armrests formed as part of the bentwood shell, fixed position without height or width adjustment, provides consistent arm support
Stable fixed-position base	Four-point floor contact from 5-star legs, no rolling casters, designed for stationary conference or visitor use
Ergonomic mid-back support	Contoured backrest shape aligned to natural lumbar curve, provides upright support for meeting and desk work
Maintenance-friendly upholstery	Smooth faux leather surface allows wiping clean with mild detergent for high-traffic office environments
Tilt lock function	12° backward seat tilt with single-position lock enabled by under-seat mechanism, supports relaxed seated posture during meetings
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons	1 carton
Shipping carton dimensions	720 x 580 x 620 mm
Gross shipping weight	22 kg
Shipping volume per unit	0.26 CBM
assembly time	20 minutes
20ft GP container loading quantity	108 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate conference rooms	Stationary design with premium wood and leather look, suitable for formal meeting spaces around boardroom tables
Executive office visitor seating	Fits as guest chair placed in front of executive desks for client and visitor use
Private office work seating	Height-adjustable swivel function supports daily desk work for managers in individual offices
High-end reception areas	Walnut and light beige upholstery creates a welcoming upscale appearance for lobby and reception zones
Hotel business center seating	Durable easy-clean upholstery and stable base suitable for high-traffic public business lounge areas
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU EN Standards

European market access and chemical requirements

Office seating safety recommendation	EN 1335:2020 Office furniture - Office work chairs - Part 1: Dimensions, determination of dimensions
Office seating stability recommendation	EN 1335:2018 Office furniture - Office work chairs - Part 2: Safety requirements, applicable for stability, strength and durability verification
Upholstery abrasion recommendation	EN 14465:2003 Textiles - Upholstery fabrics - Specification, applicable for abrasion and color fastness verification of upholstery materials

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair performance recommendation	ANSI/BIFMA X2017American National Standard for Office Chairs, applicable for static load, durability and stability testing

STANDARD S3

China GB Standards

Standards applicable to China-market projects

Office chair structural safety recommendation	GB/T 3326General technical requirements for furniture: tables and chairs, applicable for dimensional and structural stability verification
Office chair strength and durability recommendation	GB/T 10357.3Test method for furniture: chairs and stools, applicable for static load, impact and fatigue testing
Upholstery fire safety recommendation	GB 20286Flame retardant performance of public place furniture and components, applicable for fire retardant verification of upholstery materials

Standard Tender Description

This product must meet the following technical requirements:
1. Office chair structural safety recommendation: GB/T 3326General technical requirements for furniture: tables and chairs, applicable for dimensional and structural stability verification;
2. Office chair strength and durability recommendation: GB/T 10357.3Test method for furniture: chairs and stools, applicable for static load, impact and fatigue testing;
3. Upholstery fire safety recommendation: GB 20286Flame retardant performance of public place furniture and components, applicable for fire retardant verification of upholstery materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
