EOCHB-LTHR-CAM-001

Code:MJQUHTV1
Request supplier quotes

High Back Brown Leather Swivel Executive Office Chair Key Specifications 2026-08-06 19:38

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EOCHB-LTHR-CAM-001

1 active supplier(s) >>
Product supplierHigh Back Brown Leather Swivel Executive Office Chair,Multiple layers
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 700 x 1180 mm
Seat width510 mm
Seat depth490 mm
Seat height range450 mm to 540 mm
Backrest height720 mm
Backrest width480 mm
Armrest height from seat220 mm
Five-star base diameter680 mm
Caster diameter60 mm
Seat cushion thickness80 mm
Backrest padding thickness50 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight22 kg
Maximum static load capacity150 kg
Recommended user weight120 kg
Gas lift stroke90 mm
Seat swivel range360 degrees
Tilt lock range90 degrees to 120 degrees from vertical
Caster rolling durability40000 cycles
Upholstery abrasion resistance50000 Martindale cycles
Base static load rating1136 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsteryTop-grain semi-aniline brown leather
Integrated armrestsMolded structure upholstered in matching brown leather
Internal seat frame12mm thick molded plywood
Internal back frame10mm thick molded plywood
Seat cushion foam45kg/m³ density high-resilience polyurethane foam, 80mm thick
Backrest cushion foam35kg/m³ density molded polyurethane foam, 50mm thick
Five-star basePolished die-cast aluminum, 3mm wall thickness
Gas liftClass 3 carbon steel, 50mm outer diameter, chrome-plated
Tilt mechanism3mm thick black powder-coated steel
Adjustment leversBlack glass-filled nylon
CastersBlack nylon dual-wheel hard-floor casters, polyurethane tread
Seam constructionMatching brown bonded nylon stitching, 8mm stitch pitch
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment via right-side paddle lever, 90mm vertical stroke, locks at any position within range
Backrest tilt functionSynchro-tilt mechanism reclines backrest at 1:1.8 ratio relative to seat tilt, lockable in upright and three intermediate recline positions, up to 30 degree recline
360-degree swivelFull rotational movement around central gas lift axis with no rotational stops, enables easy access to surrounding workspace without moving the base
Smooth rolling mobilityFive dual-wheel casters enable low-effort movement on hard wood, tile and low-pile carpet floors, caster brakes engage automatically under full user weight
Integrated curved arm supportFixed upholstered armrests contoured to support forearms in both upright and reclined positions, no arm height adjustment
Lumbar supportContoured molded backrest foam provides built-in mid-back lumbar support without separate adjustable pad
Upright position lockTilt mechanism locks backrest in fully upright position for focused desk work, unlocks for reclined rest positions
Tilt tension adjustmentRotary tension knob under front of seat adjusts recline resistance to match user weight between 50kg and 120kg
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1
Shipping carton dimensions720 x 680 x 620 mm
Gross shipping weight26 kg
Shipping volume per unit0.30 CBM
Assembly time25 minutes
20ft container loading quantity160 units
40ft HC container loading quantity400 units
Packaging materials5-layer double-wall corrugated carton, EPS foam corner protection, PE plastic dust bag, hardware kit with assembly instructions
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officeHigh-back leather design provides professional upscale appearance and full back support for 8+ hour daily work use by senior management
Corporate meeting roomsPolished aluminum base and brown leather finish coordinate with premium conference tables for client-facing meeting spaces
Home executive officeClassic leather styling works with traditional and modern home office decor, swivel and rolling function supports flexible workspace arrangement
Boardroom seatingUniform design suitable for placement around boardroom tables, 360 swivel enables easy interaction during meetings
Executive reception areasUpscale leather finish creates a professional first impression for visitor seating in high-end reception zones
Recommended pairingMatches with walnut or dark wood executive desks measuring 1800mm to 2200mm wide, coordinates with brown leather guest seating for cohesive office suites
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applicable European standard for office work chairs, defines dimensional requirements for ergonomic seated work positions
EN 1335-2:2018Applicable European standard for office chair safety, strength and durability requirements for commercial use
EN 1021-1:2014Applicable standard for upholstered furniture flammability for cigarette ignition resistance
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 Load Test Requirement 5Requires five-star base to support minimum 1136kg static load without failure, recommended minimum specification for the aluminum base
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 16799-2008Applicable standard for furniture used leather, sets requirements for leather tear strength, color fastness and abrasion resistance
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 16799-2008: Applicable standard for furniture used leather, sets requirements for leather tear strength, color fastness and abrasion resistance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EOCHB-LTHR-CAM-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EOCHB-LTHR-CAM-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EOCHB-LTHR-CAM-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

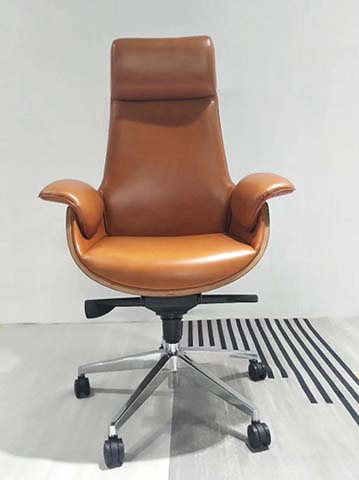

This high-back swivel executive office chair features a polished, professional silhouette defined by smooth brown top-grain semi-aniline leather upholstery, curved integrated fixed armrests covered in matching leather, and a contoured high backrest sized to deliver full upper back and head support. Tight, uniform brown bonded nylon stitching runs along all upholstery edges for a refined finish, while a polished die-cast aluminum five-star base paired with black nylon dual-wheel casters creates a balanced, formal visual profile suitable for upscale settings. The chair’s form follows standard executive chair proportions, with a thick padded seat and contoured backrest that align with ergonomic support priorities for extended seating. Construction centers on durable, commercial-grade components. Molded plywood frames form the internal support for the seat and backrest, wrapped in high-resilience polyurethane foam: 45kg/m³ density foam for the 80mm thick seat cushion, and 35kg/m³ density molded foam for the 50mm thick backrest to deliver built-in mid-back lumbar support. The steel adjustment mechanism features a black powder-coated finish, paired with a Class 3 carbon steel chrome-plated gas lift, glass-filled nylon adjustment levers, and casters fitted with soft polyurethane treads. All components are built to support regular heavy use, with abrasion-resistant upholstery, a stable aluminum base rated for high static load, and casters tested for multi-surface durability. Functional features support flexible, comfortable use across work scenarios. Pneumatic seat height adjustment is controlled via a right-side paddle lever, locking at any position within its adjustment range up to the maximum 540mm seat height. The synchro-tilt mechanism reclines the backrest at a synchronized ratio relative to seat movement, locking in the fully upright position and three intermediate recline angles up to 120 degrees from vertical, with an under-seat tension knob to adjust recline resistance for different user weights. The chair delivers full 360-degree swivel without rotational stops, and smooth low-effort movement across hard wood, tile, and low-pile carpet surfaces, with casters that engage automatic brakes under full user weight. This model fits a range of commercial and residential spaces. In corporate settings, it is suited for executive private offices, client-facing corporate meeting rooms, boardrooms, and high-end executive reception areas, where its formal leather finish coordinates with dark wood or walnut conference and executive desks, and pairs seamlessly with matching brown leather guest seating for cohesive design suites. It also works well in home executive offices, where its classic styling complements both traditional and modern residential decor, and its quiet, smooth-rolling casters are suitable for home hard flooring. For procurement, note the chair ships in a single knockdown carton with all necessary hardware and an included hex key for assembly, with assembly time per unit suitable for in-house facilities setup. Full container load quantities are calculated to support bulk commercial orders for large office fit-outs, and packaging uses standard commercial furniture materials including double-wall corrugated cartons and EPS foam corner protection to minimize transit damage. Material grade for upholstery and internal components aligns with standard commercial specifications, with component details subject to supplier bill of materials confirmation for large custom orders.
