Fabric Upholstered Swivel Lounge/Conference Armchair - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions	680 x 650 x 880 mm
Seat height from floor	450 mm
Seat cushion width	520 mm
Seat cushion depth	480 mm
Seat foam thickness	80 mm
Backrest height above seat	430 mm
Armrest height above seat	200 mm
Four-star base maximum span	660 mm
Center support column diameter	50 mm
Backrest width at shoulder level	560 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Chair net weight range	18 kg
Recommended static load capacity	120 kg
Seat foam density	45 kg/m³
Seat foam rebound rate	45%
Fabric abrasion resistance (Martindale)	50000 cycles
Base static load rating	150 kg
Standard warranty period	3 years
Available upholstery color options	12
Gas lift class rating	Class 3
Swivel cycle durability	30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer upholstery	Beige woven polyester fabric
Seat cushion core	Molded high-resilience polyurethane foam
Backrest core	Molded polyurethane foam with integrated wrap-around sides
Center support column	Polished chrome-plated steel gas lift
Base structure	Polished die-cast aluminum four-star base
Floor protection glides	Black non-marking nylon glides
Armrest structure	Integral padded armrest with matching fabric upholstery
Internal support frame	1.5mm thick bent steel inner frame
Upholstery seam pitch	8 mm
Upholstery underlining	Non-woven polyester dust cover under seat
Gas lift actuator lever	Black nylon under-seat adjustment lever
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Swivel function	360-degree horizontal rotation around center column
Armrest function	Fixed integrated padded armrests providing upper arm support during seated use
Base stability	Fixed four-star base with non-marking glides for stable stationary placement without rolling casters
Back support function	Enclosed wrap-around mid-back providing lateral torso support for upright seated posture
Height adjustment	100 mm seat height adjustment via gas lift actuator
Tilt function	Fixed upright seating position with no active back recline mechanism
Floor protection function	Non-marking nylon glides with 150kg static load rating preventing scuffing on hardwood, tile and polished concrete floors
Recline Angle / Lock Reference	125° with 3 suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office conference room application	Suitable for meeting rooms and boardrooms as guest/participant seating, providing upright support and professional aesthetic
Executive lounge and reception area application	Suitable for lounge, reception and waiting areas as visitor seating, with soft padding and modern silhouette
Hotel public area application	Suitable for hotel lobbies, club lounges and meeting suites as casual seating, with commercial-grade fabric for high-traffic use
Private study and home office application	Suitable for home office or reading nooks as desk-side seating, with 360 swivel and comfortable padding for extended use

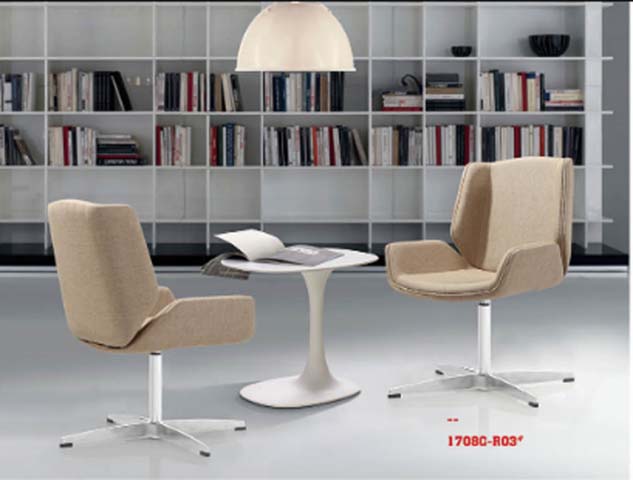

Recommended pair configuration	Frequently paired in sets of 2 with round tulip-style side tables, as shown in product imagery for conversational seating arrangements
Corporate breakout space application	Suitable for open-plan office breakout areas and informal collaboration zones, with 120kg load rating supporting regular casual use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable office seating safety standard	EN 1335:2020
Applicable upholstered furniture flammability standard	EN 1021:2014
Applicable surface finish standard	EN 12720:2009+A1:2013

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable lounge/guest seating standard	ANSI/BIFMA X2020

STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable standard for office seating mechanical safety	GB/T 3326
Applicable standard for upholstered furniture durability	GB/T 27904
Applicable standard for fabric upholstery performance	GB/T 21655.1

Standard Tender Description

This product must meet the following technical requirements:
1. Applicable standard for office seating mechanical safety: GB/T 3326;
2. Applicable standard for upholstered furniture durability: GB/T 27904;
3. Applicable standard for fabric upholstery performance: GB/T 21655.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
