＞ Home ＞ Office Desks & Chairs Furniture ＞ Office Chair Series ＞ Powder coated office chair ＞ EXEC-HB-PU-001

EXEC-HB-PU-001

Code：QM63DSV1
Request supplier quotes

High-Back Upholstered Executive Swivel Office Chair Key Specifications 2026-08-05 17:15

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EXEC-HB-PU-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 720 x 1180 mm
Seat width520 mm
Seat depth500 mm
Seat height adjustment range530 mm
Backrest height760 mm
Backrest width500 mm
Armrest height from seat220 mm
Five-star base diameter700 mm
Caster diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net chair weight22 kg
Maximum recommended user weight150 kg
Seat foam density45 kg/m³
Backrest foam density35 kg/m³
Seat foam thickness80 mm
Backrest foam thickness60 mm
Seam stitch pitch3 mm per stitch
Gas lift static load rating150 kg
Caster rolling durability100000 cycles
Upholstery abrasion resistance50000 Martindale cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and backrest upholsterySmooth dark grey PU leather
Seat coreMolded high-resilience polyurethane foam
Backrest coreShaped high-resilience polyurethane foam
Padded armrestsPU leather padded armrests with molded structural inner support
Height adjustment gas liftChrome-plated steel Class 3 gas lift
Tilt mechanismBlack powder-coated steel multi-function tilt chassis
Five-star basePolished chrome-plated steel five-star base
CastersBlack nylon dual-wheel hard floor casters
Internal back frame12 mm thick molded plywood inner support
Upholstery stitchingMatching dark grey bonded polyester thread
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment via right-side lever, 80 mm stroke to accommodate 95th percentile user heights
Backrest tilt functionSynchro-tilt mechanism with 12 degree backward recline, lockable in upright position via side lever
360-degree swivelFull 360 degree horizontal rotation enabled by central swivel joint between gas lift and mechanism
Mobility functionSmooth rolling movement on all 5 dual-wheel casters, suitable for hard floor surfaces
Integrated arm supportFixed height padded armrests positioned to support forearm posture during seated work
Lumbar supportContoured middle back section provides built-in static lumbar support without adjustable pads
Weight-activated tilt tensionTilt resistance automatically adjusts to user weight to support controlled recline
Upright position lockMechanism locks backrest in fully upright position for focused desk work
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1 unit per carton
Packed carton dimensions850 x 680 x 420 mm
Gross shipping weight26 kg
Shipping volume per unit0.243 CBM
Required assembly time25 minutes
40ft HQ container loading quantity270 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Private executive officesHigh-back upholstered design provides professional appearance and full back support for senior management daily office use
Corporate boardroomsPolished chrome base and tailored upholstery matches formal meeting room furnishings for extended board sessions
Private home officesPadded design and smooth mobility support long duration work from home with executive styling suitable for residential workspaces
Managerial workstationsAdjustable height and recline function provides ergonomic support for middle and senior managers at open plan or enclosed workstations
Consulting and legal office spacesDurable PU leather upholstery allows easy cleaning and professional presentation for client-facing work environments
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable office seating safety standardEN 1335:2020
Applicable office seating strength standardEN 1335:2018
Applicable upholstery fire standardEN 1021:2014
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable office chair standardANSI/BIFMA X2017
Applicable caster standardANSI/BIFMA X2017Clause 11
Five-star base static load rating1136 kg
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable seating safety standardGB/T 3326
Applicable seating mechanical standardGB/T 10357.3
Applicable upholstery safety standardGB 20400
Standard Tender Description
This product must meet the following technical requirements:
1. Applicable seating safety standard: GB/T 3326;
2. Applicable seating mechanical standard: GB/T 10357.3;
3. Applicable upholstery safety standard: GB 20400;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-HB-PU-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-HB-PU-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-HB-PU-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

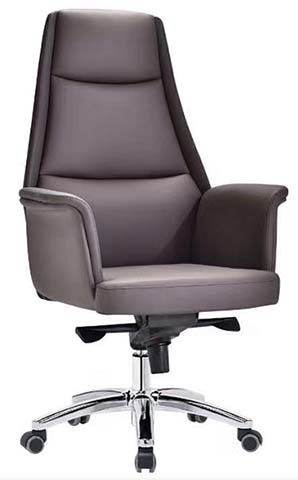

The Yiankang EXEC-HB-PU-001 High-Back Upholstered Executive Swivel Office Chair features a polished, professional silhouette with a tall contoured backrest, integrated fixed-height padded armrests, and a symmetrical five-star base for balanced visual presence. Its smooth dark grey PU leather upholstery is accented with matching dark grey stitched seam lines across the backrest, complemented by a shiny polished chrome base and center support column that create a cohesive formal aesthetic suitable for premium work environments. The chair is built with multi-layer construction: a molded plywood inner frame supports the seat and backrest, which are padded with high-resilience polyurethane foam, while the central tilt chassis uses powder-coated steel, the gas lift is chrome-plated steel, and rolling components consist of black nylon dual-wheel casters designed for hard floor surfaces. The seat cushion features thick, dense foam paired with a contoured lumbar zone built into the middle back to deliver static postural support without separate adjustable pads. Functional features include pneumatic seat height adjustment operated via a right-side lever, a synchro-tilt mechanism with weight-activated tension adjustment that automatically adapts resistance to the user, a lock to hold the backrest in a fully upright position for focused work, full 360-degree swivel, and smooth multidirectional rolling across hard flooring. The chair supports a maximum recommended user weight aligned with its Class 3 gas lift rating, and the PU upholstery offers heavy-duty abrasion resistance suitable for frequent commercial use. This model fits a wide range of spaces, including private executive offices, corporate boardrooms, private home offices, managerial workstations in open-plan or enclosed layouts, and client-facing consulting or legal offices where easy-to-clean surfaces and professional presentation are priorities. For procurement, teams should confirm material grades, structural component specifications, and mechanism certifications directly with the supplier prior to finalizing orders, as some listed construction details are reference values based on standard category configurations. Shipping is configured for knocked-down delivery with standard packaging that supports full contner load planning, and assembly can be completed by a single person with basic tools.
