1718-X07

Code：SQJHWLV1
Request supplier quotes

Mid-Back Leather Upholstered Swivel Office Conference Chair Key Specifications 2026-08-05 17:15

Popularity: 11
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

1718-X07

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierMid-Back Leather Upholstered Swivel Office Conference Chair，Multi-layer
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions640 x 620 x 1010 mm
Seat height adjustment range420 to 520 mm
Seat width500 mm
Seat depth460 mm
Backrest height520 mm
Backrest width470 mm
Fixed armrest height above seat220 mm
Five-star base radius350 mm
Caster diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight18 kg
Maximum recommended static user load136 kg
Recommended daily usage duration8 hours
Seat foam thickness50 mm
Back foam thickness30 mm
Seat foam density45 kg/m³
Upholstery abrasion resistance50000 double rubs (Martindale)
Tilt mechanism lock angle12 degrees
Welded frame static load rating680 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsteryMauve smooth faux leather (PU leather)
Back and seat side shellWalnut-toned bent plywood
Armrest padsMatching mauve upholstered padding
Armrest support bracketsPolished die-cast aluminum
Five-star basePolished die-cast aluminum
Pneumatic gas liftChrome-plated steel, Class 3 grade
Tilt and height mechanismPowder-coated steel plate, 3mm thickness
CastersBlack hard-wearing polyurethane (PU)
StitchingMatching color edge stitching
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic lever-operated adjustment with 100mm vertical travel
Back tilt functionMulti-position synchro tilt with 12 degree backward recline
Smooth rolling mobilityDual-wheel PU casters roll freely on hard floors and low-pile carpet without scratching surfaces
Fixed-position arm supportRigid padded armrests provide consistent arm support to reduce shoulder fatigue
Stable anti-tip design350mm radius five-star base meets office seating stability requirements to prevent forward/side tipping during normal use
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1 carton
Shipping carton dimensions680 x 650 x 590 mm
Gross shipping weight22 kg
Shipping volume per unit (CBM)0.26 CBM
Assembly time20 minutes
40ft HQ container loading quantity260 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate meeting and conference roomsSlim mid-back profile and formal mauve upholstery coordinates with modern conference tables, supports upright seated posture during long meetings
Executive private officesPolished aluminum and wood trim matches premium executive desk suites, provides professional appearance and comfortable seating for guests and the office occupant
Visitor and reception areasSmooth faux leather surface is easy to clean and sanitize between guest uses, rolling base allows flexible repositioning
Home office workspacesCompact footprint fits smaller home office layouts, adjustable height works with standard home office desks, stylish mauve finish complements modern residential decor
Co-working flexible workspacesDurable commercial-grade construction withstands high-frequency multi-user use, swivel and roll function supports flexible collaborative work
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020 Office furniture - Office work chairs - Part 1: Dimensions - Determination of dimensionsApplies to ergonomic dimensional requirements for seat height, depth, back support and armrest positioning for user comfort
EN 1335-2:2018 Office furniture - Office work chairs - Part 2: Safety requirementsApplies to structural safety, stability, caster performance and mechanism durability requirements for commercial office chairs
EN 1335-3:2009 Office furniture - Office work chairs - Part 3: Test methodsDefines standardized test procedures to verify compliance with safety and performance requirements during procurement inspection
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furnitureApplies to formaldehyde emission limits for the bentwood plywood shell components, required for indoor office air quality compliance
Standard Tender Description
This product must meet the following technical requirements:
1. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applies to formaldehyde emission limits for the bentwood plywood shell components, required for indoor office air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1718-X07

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1718-X07

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1718-X07Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

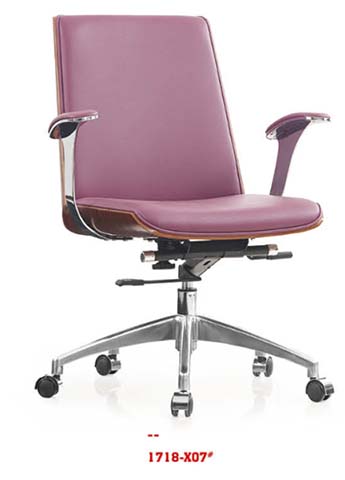

The Yiankang 1718-X07 Mid-Back Leather Upholstered Swivel Office Conference Chair presents a polished, contemporary silhouette defined by its streamlined mid-back form, mauve smooth PU leather upholstery, and contrasting walnut-toned bent plywood trim tracing the edges of the seat and back panels. Matching mauve padded armrests sit atop polished die-cast aluminum support brackets, anchored to a reflective polished die-cast aluminum five-star base fitted with black twin-wheel casters, creating a balanced visual profile that balances warm wood tones, soft upholstery, and sleek metallic accents. Constructed for commercial-grade durability, the chair features bent plywood internal support structures for the seat and back, paired with high-resilience molded foam: 50mm thick seat foam at 45kg/m³ density to retain shape through extended use, and 30mm slim-profile back foam shaped to deliver mid-back lumbar and lower thoracic support. The powder-coated steel tilt mechanism, Class 3 chrome-plated steel gas lift, and polished aluminum base work in tandem for reliable structural performance, while the PU upholstery is rated for 50000 Martindale double rubs to withstand frequent use. Matching fine edge stitching adds a tailored finish to all upholstered surfaces. Core functional features support flexible, comfortable use: lever-operated pneumatic seat height adjustment accommodates varying user leg lengths and standard desk heights, while the synchro tilt mechanism offers a 12-degree backward recline with a lockable upright position for formal meeting settings. The chair swivels 360 degrees, with dual-wheel PU casters that roll smoothly across hard flooring and low-pile carpet without surface damage, and the wide-radius five-star base delivers stable anti-tip performance during regular movement. Fixed padded armrests sit at a height aligned with standard desk surfaces to reduce shoulder strn during typing or discussion. This model suits a wide range of commercial and residential settings: it fits naturally in corporate conference rooms with its formal slim profile that supports upright posture during long sessions, complements premium executive private office suites, offers easy-to-clean surfaces for high-traffic visitor and reception areas, works within compact home office layouts, and stands up to high-frequency multi-user demands in co-working flexible workspaces. It is rated to support a maximum recommended static user load of 136kg, and is suited for up to 8 hours of dly use. For procurement planning, note the chair ships in knock-down format to reduce logistics costs, with assembly completed using standard included hardware without specialized tools. Full contner load quantities are optimized for bulk commercial orders, and buyers should confirm exact material specifications, such as precise bent plywood thickness and upholstery grade, directly with the supplier prior to final order placement, as published dimensional and construction details are derived from standard category configurations for this product class.
